Hospital Grade Wiring Devices and Cord Sets

Select from the following products:
5266-HGAN

HOSPITAL GRADE ANGLE PLUG, 15A-125V, NEMA 5-15P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG, IMPACT RESISTANT. UL/CSA LISTED HOSPITAL GRADE. CLEAR/BLACK.

5266-XHG

HOSPITAL GRADE PLUG, 15A-125V, NEMA 5-15P, GREEN DOT MEDICAL GRADE POWER PLUG. UL/CSA LISTED HOSPITAL GRADE. BLACK/WHITE.

5266-XHGC

HOSPITAL GRADE PLUG, 15A-125V, NEMA 5-15P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5269-XHG

HOSPITAL GRADE CONNECTOR, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL GRADE POWER CONNECTOR, 2 POLE- 3 WIRE GROUNDING. UL/CSA LISTED HOSPITAL GRADE. BLACK/WHITE.

5269-XHGC

HOSPITAL GRADE "CLEAR" CONNECTOR, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL GRADE CONNECTOR. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5366-HGAN

HOSPITAL GRADE ANGLE PLUG, 20A-125V, NEMA 5-20P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG, IMPACT RESISTANT. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5366-XHG

HOSPITAL GRADE PLUG, 20A-125V, NEMA 5-20P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5369-XHG

HOSPITAL GRADE CONNECTOR, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL GRADE "CLEAR" POWER CONNECTOR. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5466-XHG

20A-250V HOSPITAL GRADE PLUG (NEMA 6-20P), ACCEPTS 18AWG-10AWG CONDUCTORS, CORD GRIP RANGE 0.230-.0720 DIA.. BLACK/CLEAR.

5469-XHG

20A-250V HOSPITAL GRADE CONNECTOR (NEMA 6-20R / NEMA 6-15R), ACCEPTS 18AWG-10AWG CONDUCTORS, CORD GRIP RANGE 0.230-.0720 DIA.. BLACK/CLEAR.
Note. Nema 6-20R connectors mate with Nema 6-20P (20A-250V) & Nema 6-15P (15A-250V) Power cords, plugs, flanged inlets.

5666-XHG

HOSPITAL GRADE PLUG, 15A-250V (NEMA 6-15P), GREEN DOT MEDICAL GRADE "CLEAR" PLUG. UL/CSA LISTED HOSPITAL GRADE. BLACK / CLEAR. Note. Nema 6-15P plugs mate with Nema 6-15R (15A-250V) & Nema 6-20R (20A-250V) receptacles/connectors.

5669-XHG

HOSPITAL GRADE CONNECTOR, 15A-250V (NEMA 6-15R), GREEN DOT MEDICAL GRADE "CLEAR" CONNECTOR. BLACK / CLEAR.

8115

HOSPITAL GRADE PLUG, 15A-125V, NEMA 5-15P, GREEN DOT MEDICAL GRADE POWER PLUG, "CLAM SHELL" DESIGN CORD GRIP. LIGHT GRAY. UL/CSA LISTED HOSPITAL GRADE.

8119

HOSPITAL GRADE CONNECTOR, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL GRADE POWER CONNECTOR, "CLAM SHELL" DESIGN CORD GRIP. LIGHT GRAY. UL/CSA LISTED HOSPITAL GRADE.

81450-HGC

Discontinued, Replaced by NO. 82470

8200-I

HOSPITAL GRADE DUPLEX RECEPTACLE, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL DUPLEX OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

8201-I

HOSPITAL GRADE RECEPTACLE, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

82400

HOSPITAL GRADE POWER CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 18/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82405

HOSPITAL GRADE POWER CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" PLUG, IEC 60320 C13 "CLEAR" CONNECTOR, SJTO 18/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82410

HOSPITAL GRADE POWER CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 18/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82415

HOSPITAL GRADE POWER CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 16/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82420

HOSPITAL GRADE POWER CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" PLUG, IEC 60320 C13 "CLEAR" CONNECTOR, SJTO 16/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82425

HOSPITAL GRADE POWER CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 16/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82430

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82435

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" PLUG, IEC 60320 C13 "CLEAR" CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82440

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82440-LK

LOCKING 15A-125V HOSPITAL GRADE DETACHABLE POWER CORD, NEMA 5-15P HOSPITAL GRADE (GREEN DOT) PLUG, IEC 60320 "LOCKING" C-13 CONNECTOR, 3.1M (10 FEET) LONG. BLACK.

82445

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C19 CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82450

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" PLUG, IEC 60320 C19 "CLEAR" CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82460

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C19 CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82460-LK

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, "LOCKING" IEC 60320 C-19 CONNECTOR, SJTO 14/3 AWG. 105 DEGREE C MEDICAL POWER CABLE, 2 POLE- 3 WIRE GROUNDING, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. BLACK. .

82465

HOSPITAL GRADE POWER SUPPLY CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 18/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82470

HOSPITAL GRADE POWER SUPPLY CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" CORD PLUG, SJTO 18/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82475

HOSPITAL GRADE POWER SUPPLY CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 18/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82480

HOSPITAL GRADE POWER SUPPLY CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 16/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82485

HOSPITAL GRADE POWER SUPPLY CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" CORD PLUG, SJTO 16/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82490

HOSPITAL GRADE POWER SUPPLY CORD, 13A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 16/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82495

HOSPITAL GRADE POWER SUPPLY CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 14/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82500

HOSPITAL GRADE POWER SUPPLY CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" CORD PLUG, SJTO 14/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82505

HOSPITAL GRADE POWER SUPPLY CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P CORD PLUG, SJTO 14/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82510

HOSPITAL GRADE POWER CORD, 15A-250V, HOSPITAL GRADE GREEN DOT NEMA 6-15P "CLEAR" CORD PLUG, IEC 60320 C-13 "CLEAR" CONNECTOR, SJTO 14/3 AWG. 105 CORD (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.
Note. Nema 6-15P plugs mate with Nema 6-15R (15A-250V) & Nema 6-20R (20A-250V) receptacles, connectors.

82515

HOSPITAL GRADE POWER CORD, 15A-250V, HOSPITAL GRADE GREEN DOT NEMA 6-15P "CLEAR" CORD PLUG, IEC 60320 C19 "CLEAR" CONNECTOR, SJTO 14/3 AWG. 105 DEGREE C CORD, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.
Note. Nema 6-15P plugs mate with Nema 6-15R (15A-250V) & Nema 6-20R (20A-250V) receptacles, connectors.

82520

HOSPITAL GRADE POWER SUPPLY CORD, 15A-250V, HOSPITAL GRADE GREEN DOT NEMA 6-15P "CLEAR" CORD PLUG, SJTO 14/3 AWG. 105 DEGREE C CORD, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.
Note. Nema 6-15P plugs mate with Nema 6-15R (15A-250V) & Nema 6-20R (20A-250V) receptacles, connectors.

82524

HOSPITAL GRADE, 15A-125V NEMA DETACHABLE POWER CORD (NEMA 5-20P) PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG, SJTO 105 DEGREE C, 2 POLE-3 WIRE GROUNDING, 10 FEET LONG. BLACK.

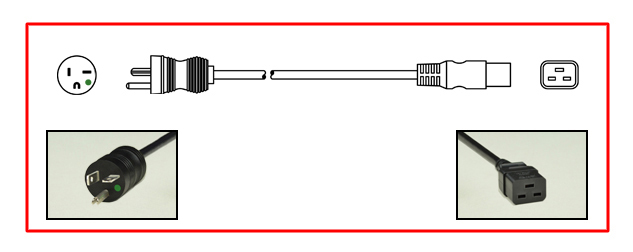

82525

HOSPITAL GRADE POWER CORD, 20A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-20P PLUG, IEC 60320 C-19 CONNECTOR, SJT 12/3 AWG. 105 DEGREE C CORD, (10FT.) LONG. HOSPITAL GRADE APPROVED. BLACK.

82530

HOSPITAL GRADE POWER SUPPLY CORD, 20A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-20P PLUG, SJT 12/3 AWG. 105 DEGREE C CORD, (10FT.) LONG, STRIPPED ENDS. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82534

HOSPITAL GRADE, 15A-250V NEMA DETACHABLE POWER CORD (NEMA 6-20P) PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG, SJTO 105 DEGREE C, 2 POLE-3 WIRE GROUNDING, 10 FEET LONG. BLACK.

82535

HOSPITAL GRADE POWER CORD, 20A-250V, HOSPITAL GRADE GREEN DOT NEMA 6-20P PLUG, IEC 60320 C-19 CONNECTOR, SJT 12/3 AWG. 105 DEGREE C CORD, (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82540

HOSPITAL GRADE POWER SUPPLY CORD, 20A-250V, HOSPITAL GRADE GREEN DOT NEMA 6-20P PLUG, SJT 12/3 AWG. 105 DEGREE C CORD, (10FT.) LONG, STRIPPED ENDS. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

8284-I

HOSPITAL GRADE RECEPTACLE, 15A-125V, NEMA 5-15R, GREEN DOT MEDICAL GRADE PANEL MOUNT OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

8300-I

HOSPITAL GRADE DUPLEX RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL DUPLEX OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

8301-I

HOSPITAL GRADE RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

8384-I

HOSPITAL GRADE RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL GRADE PANEL MOUNT OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

8800-I

HOSPITAL GRADE DUPLEX RECEPTACLE, 20A-250V (NEMA 6-20R / NEMA 6-15R) OUTLET. IVORY.
Note: Outlet accepts Nema 6-20P (20A-250V) & Nema 6-15P (15A-250V) plugs.

8801-I

HOSPITAL GRADE RECEPTACLE, 20A-250V (NEMA 6-20R / NEMA 6-15R). IVORY.
Note: Outlet accepts Nema 6-20P (20A-250V) & Nema 6-15P (15A-250V) plugs.
