Select from the following products:

2946-ALM

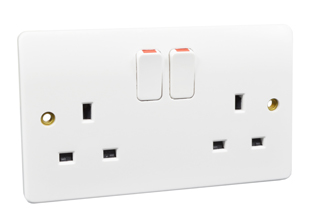

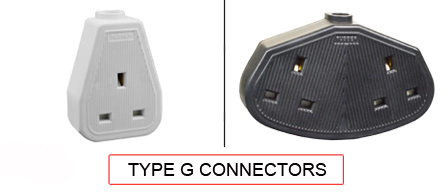

UK, BRITISH, UNITED KINGDOM 13 AMPERE-250 VOLT DUPLEX OUTLET (UK1-13R), DOUBLE POLE ON/OFF SWITCHES, BS 1363A TYPE G SOCKETS, STEEL BOX & COVER, SURFACE MOUNT. GRAY.

2946-ALM-BG

UK, BRITISH, UNITED KINGDOM 13 AMPERE-250 VOLT DUPLEX OUTLET (UK1-13R), DOUBLE POLE ON/OFF SWITCHES, BS 1363A TYPE G SOCKETS, STEEL BOX & COVER, SURFACE MOUNT. GRAY.

2946-ALM-BG-2USB

BRITISH, UNITED KINGDOM 13 AMPERE-250 VOLT DUPLEX OUTLET (UK1-13R), TWO USB PORTS 3.1A 5V, SINGLE POLE ON/OFF SWITCHES, BS 1363A TYPE G SOCKETS, STEEL BOX & COVER, SURFACE MOUNT. GRAY.

2946-ALMLS

UK, BRITISH, UNITED KINGDOM 13 AMPERE-250 VOLT DUPLEX OUTLET (UK1-13R), BS 1363A TYPE G SOCKETS, SHUTTERED CONTACTS, STEEL BOX & COVER, SURFACE MOUNT. GRAY.

592530X45

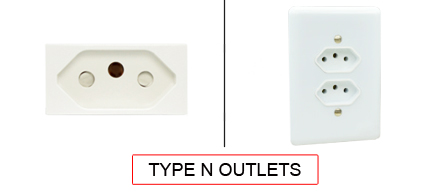

BRAZIL 10A-250V, NBR 14136 TYPE N (BR2-10R) OUTLET, 22.5mmX45mm MODULAR SIZE. WHITE.
Approvals: INMETRO, TUV
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79266X45-N.
* Surface mount insulated wall boxes # 680601X45 series. Surface mount Metal wall boxes # 79240X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730091X45 & # 74790X45 wall box.
* Panel mount frames # 79110X45, # 79110X45-ALU. Panel Mount Instruction Guide
* Not for use with #79100X45, 79100X45-ALU, 69582LX45, 79595X45, 79575X45 mounting frames.

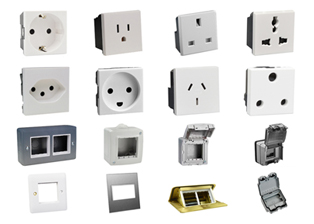

* Complete range of modular devices and mounting component options. Modular Devices Link

592532X45

BRAZIL 16/20 AMPERE-250 VOLT NBR 14136 TYPE N (BR3-20R), OUTLET, SHUTTERED CONTACTS. WHITE.
Approvals: INMETRO, TUV
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79266X45-N.
* Surface mount insulated wall boxes # 680601X45 series. Surface mount Metal wall boxes # 79240X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730091X45 & # 74790X45 wall box.
* Panel mount frames # 79110X45, # 79110X45-ALU. Panel Mount Instruction Guide
* Not for use with #79100X45, 79100X45-ALU, 69582LX45, 79595X45, 79575X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

63100X45

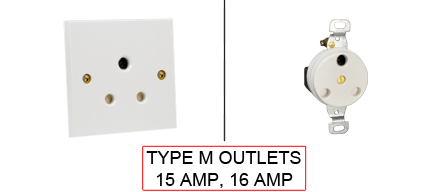

INDIA 16 AMPERE-250 VOLT IS 1293:2005 TYPE M [IN1-16R] OUTLET, ON/OFF SWITCH, SHUTTERED CONTACTS, 67.5mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE. INDIA 16 AMPERE-250 VOLT IS 1293:2005 TYPE M [IN1-16R] OUTLET, ON/OFF SWITCH, SHUTTERED CONTACTS, 67.5mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
Notes:
* ISI mark, BIS approved,
* Flush mount, Surface Mount.
* Mounts on American 2X4 Wall boxes. Requires # 79170X45-N Frame & # 79180X45-N Wall plate.
* Mounts on American 4X4 Wall boxes. Requires # 79210X45N Frame & Wall plate # 79220X45-N.
* Weatherproof Surface mount Enclosures (IP66), (IP55) Available.

63105X45

INDIA 16 AMPERE-250 VOLT IS 1293:2019 TYPE M IN1-16R] OUTLET, 5/6 AMPERE-250 VOLT TYPE D [IN2-6R] OUTLET, SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
BIS [Bureau of India Standards] approved @ 16A-250V, 5/6A-250V. Factory tested @ 25A-250V.

Notes:
* Outlet accepts India 16A-250V Type M, 6A-250V Type D, 25A-250V Type M plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

63105X45-BLK

INDIA 16 AMPERE-250 VOLT IS 1293:2019 TYPE M IN1-16R] OUTLET, 5/6 AMPERE-250 VOLT TYPE D [IN2-6R] OUTLET, SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. BLACK [MAGNESIUM COLOR].
BIS [Bureau of India Standards] approved @ 16A-250V, 5/6A-250V. Factory tested @ 25A-250V.

Notes:
* Outlet accepts India 16A-250V Type M, 6A-250V Type D, 25A-250V Type M plugs.
* Mounts on American 2X4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame #79210X45-N & #79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame #79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

63125

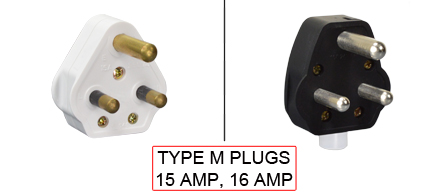

INDIA PLUG, 25 AMPERE-250 VOLT, TYPE M (IN3-25P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.472" (12mm). WHITE.
Notes:
* Plug mates with India 25A-250V type M (IN3-25R) outlets, India 16A-250V type M outlets (IN1-16R).

63125-BLK

INDIA PLUG, 25 AMPERE-250 VOLT, TYPE M (IN3-25P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.472" (12mm). BLACK.
Notes:
* Plug mates with India 25A-250V type M (IN3-25R) outlets, India 16A-250V type M outlets (IN1-16R).

63130

INDIA PLUG, 16 AMPERE-250 VOLT, IS 1293:2005 TYPE M (IN1-16P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.472" (12mm). WHITE.
Notes:
* ISI mark, BIS approved.
* Plug connects with India 16A-250V type M outlets (IN1-16R).

63130-BLK

INDIA PLUG, 16 AMPERE-250 VOLT, IS 1293:2005 TYPE M (IN1-16P), REWIREABLE ANGLE PLUG, TERMINAL SCREW TORQUE = 1.2Nm, MAX. CORD O.D. = 0.472" (12mm). BLACK.
Notes:
* ISI mark, BIS approved.
* Plug connects with India 16A-250V type M outlets (IN1-16R).

63130-BMF

INDIA PLUG, 16 AMPERE-250 VOLT, IS 1293:2005 TYPE M (IN1-16P), REWIREABLE ANGLE PLUG, TERMINAL SCREW TORQUE = 1.2Nm, MAX. CORD O.D. = 0.472" (12mm). BLACK (MATTE).
Notes:
* ISI mark, BIS approved.
* Plug mates with India 16A-250V type M outlets (IN1-16R).

63130-L

INDIA PLUG, 16 AMPERE-250 VOLT, IS 1293:2019 TYPE M (IN1-16P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.400" (10mm). WHITE.
Notes:
* ISI mark, BIS approved.
* Plug mates with India 16A-250V type M outlets (IN1-16R).

63140X45

INDIA 13 AMPERE-250 VOLT, 15 AMPERE-127 VOLT UNIVERSAL MULTI-CONFIGURATION OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
Notes:
* Outlet accepts India, South Africa 5A/6A -250V Type D Plugs, British Type G Plugs, European, International, American Plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

63160

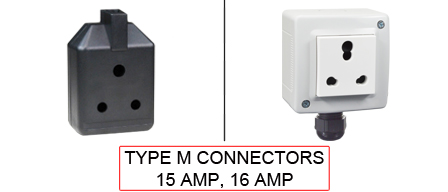

INDIA CONNECTOR, 16A-250V IS 1293:2005 TYPE M [IN1-16R] AND 5/6A-250V TYPE D (IN2-6P) REWIREABLE IN-LINE CONNECTOR, SHUTTERED CONTACTS, WEATHERPROOF ENCLOSURE, IP55 RATED (COVER CLOSED), TRANSPARENT LIFT LID, GLAND CABLE ENTRY, 2 POLE-3 WIRE GROUNDING (2P+E). MAX. CORD O.D. = 0.472". GRAY.
Notes:
* Outlet ISI mark, BIS approved. Factory tested @ 25A-250V.
* Accepts India, South Africa 16A-250V TYPE M , 5A/6A-250V TYPE D , 25A-250V TYPE M plugs.
* Application options = In-line connector, panel mount, or surface wall mount.

63160-BLK

INDIA CONNECTOR, 15A-250V, REWIREABLE CONNECTOR, TYPE M, IN1-16R, SHUTTERED CONTACTS. BLACK.
Notes:
* Accepts India 16 amp plugs
* Max amperage usage * 15 amps

63160-GW

INDIA CONNECTOR, 16A-250V IS 1293:2005 TYPE M [IN1-16R] AND 5/6A-250V TYPE D (IN2-6P) REWIREABLE CONNECTOR, SHUTTERED CONTACTS, ENCLOSURE, GLAND CABLE ENTRY, 2 POLE-3 WIRE GROUNDING (2P+E). MAX. CORD O.D. = 0.472". GRAY.
Notes:
* Outlet ISI mark, BIS approved. Factory tested @ 25A-250V.
* Accepts India, South Africa 16A-250V TYPE M , 5A/6A-250V TYPE D , 25A-250V TYPE M plugs.
* Application options = In-line connector, panel mount, or surface wall mount.

63330

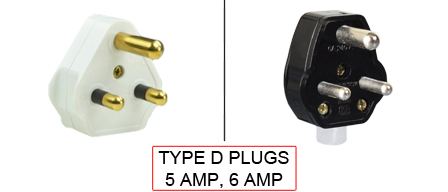

INDIA PLUG, 6 AMPERE-250 VOLT, IS 1293:2005 TYPE D (IN2-6P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.354" (9mm). WHITE.
Notes:
* ISI mark, BIS approved.
* Connects with India, South Africa TYPE D 5A/6A-250V outlets.

63330-BLK

INDIA PLUG, 6 AMPERE-250 VOLT, IS 1293:2005 TYPE D (IN2-6P), REWIREABLE ANGLE PLUG, MAX. CORD O.D. = 0.354" (9mm). BLACK.
Notes:
* ISI mark, BIS approved.
* Connects with India, South Africa TYPE D 5A/6A-250V outlets.

685041x45

BRAZIL 10A-250V, NBR 14136 TYPE N (BR2-10R) OUTLET, 22.5mmX45mm MODULAR SIZE. WHITE.
Approvals: INTERTEK, IEC 60884-1
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79266X45-N.
* Surface mount insulated wall boxes # 680601X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730091X45 & # 74790X45 wall box.
* Panel mount frames # 79110X45, # 79110X45-ALU. Panel Mount Instruction Guide
* Not for use with #79230X45, 79235X45, 79280X45, 79240X45 wall boxes.
* Not for use with #79100X45, 79100X45-ALU, 69582LX45, 79595X45, 79575X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

685042x45

BRAZIL 16/20 AMPERE-250 VOLT NBR 14136 TYPE N (BR3-20R), OUTLET, SHUTTERED CONTACTS. WHITE.
Approvals: INTERTEK
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79266X45-N.
* Surface mount insulated wall boxes # 680601X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730091X45 & # 74790X45 wall box.
* Panel mount frames # 79110X45, # 79110X45-ALU. Panel Mount Instruction Guide
* Not for use with #79230X45, 79235X45, 79280X45, 79240X45 wall boxes.
* Not for use with #79100X45, 79100X45-ALU, 69582LX45, 79595X45, 79575X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

685043X45

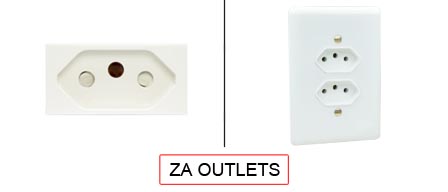

SOUTH AFRICA ZA 16 AMPERE-250 VOLT, Type N , SANS 164-2, (SA1-16R) OUTLET, SOCKET, SHUTTERED CONTACTS, SNAP-IN MOUNT, 22.5mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
SABS APPROVED.
Notes:
* Outlet mounts on South Africa, American 2X4 Wall Boxes & European / International Wall Boxes.
* Outlet accepts South Africa 16A-250V Type N Plugs,
* Effective January 2018, all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa standard SANS 164-2.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79266X45-N.
* Surface mount insulated wall boxes # 680601X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730091X45 & # 74790X45 wall box.
* Panel mount frames # 79110X45, # 79110X45-ALU. Panel Mount Instruction Guide
* Not for use with #79230X45, 79235X45, 79280X45, 79240X45 wall boxes.
* Not for use with #79100X45, 79100X45-ALU, 69582LX45, 79595X45, 79575X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

685044X45

SOUTH AFRICA ZA 16A-250V ZA, SANS 164-2 TYPE N (SA1-16R) OUTLET, SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018, all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

685044X45D

SOUTH AFRICA ZA 16A-250V SANS 164-2 TYPE N (SA1-16R) DUPLEX OUTLET, SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018, all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

685044X45DX

SOUTH AFRICA ZA DUPLEX OUTLET, 16A-250V SANS 164-2 (SA1-16R) TYPE N SOCKET, 16A-250V SANS 164-1 TYPE M (SA2-16R) SOCKET, 6A-250V SANS 164-3 TYPE D (SA3-5R) SOCKET, SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018, all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

685044X45T

SOUTH AFRICA ZA 16A-250V SANS 164-2 TYPE N (SA1-16R), SANS 164-5 TYPE C, TRIPLE OUTLETS, SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018, all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

70100x45

EUROPEAN SCHUKO 16A-250V MODULAR CEE 7/3 TYPE F (EU1-16R) OUTLET, SHUTTERED CONTACTS, 45mmX45mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100x45-BLK

EUROPEAN SCHUKO 16A-250V MODULAR OUTLET CEE 7/3 TYPE F, (EU1-16R), 45mmX45mm SIZE, SHUTTERED CONTACTS. BLACK (MAGNESIUM COLOR).
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100X45-GRN

EUROPEAN SCHUKO 16A-250V MODULAR OUTLET CEE 7/3 TYPE F, (EU1-16R), 45mmX45mm SIZE, SHUTTERED CONTACTS. GREEN.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100x45-IT

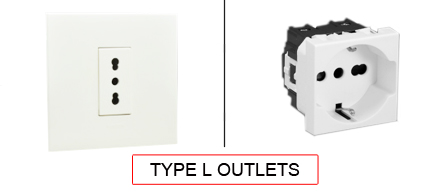

EUROPEAN SCHUKO CEE 7/3 TYPE F, (EU1-16R) 16A-250V, ITALY, CHILE TYPE L MODULAR OUTLET, CEI 23-50 (S17) (IT1-10R/IT2-16R), SHUTTERED CONTACTS, 45mmX45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European wall boxes (60mm on center), requires frame # 79250X45-N & wall plate # 79265X45-N.
* Surface mount insulated wall boxes # 680602X45 series.
* Surface mount weatherproof, IP66 rated. Requires frame # 730092X45 & # 74790X45 wall box.
* Panel Mount, European Wall Box Mount, use frame #730092X45 (Mounts 60mm on center) or # 730092X45 Duplex (Mounts 120mm on center).
* Not for use with #79230X45, 79235X45, 79280X45 wall boxes.
* Not for use with #79100X45, 79100X45-ALU,69582LX45, 79595X45, 79575X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100x45-RED

EUROPEAN SCHUKO 16 AMPERE-250 VOLT MODULAR OUTLET CEE 7/3 TYPE F, (EU1-16R), 45mmX45mm SIZE, SHUTTERED CONTACTS, RED.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100X45-RED-T

EUROPEAN 16A-250V TAMPERPROOF SCHUKO MODULAR OUTLET CEE 7/3 TYPE F, (EU1-16R), SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE. RED.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70100X45-WDC

EUROPEAN SCHUKO 16A-250V MODULAR CEE 7/3 TYPE F (EU1-16R) OUTLET WITH LIFT LID COVER, SHUTTERED CONTACTS, IP40 RATED, 45mmX45mm SIZE, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

70114

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F DUPLEX OUTLET (EU1-16R), SHUTTERED CONTACTS, FLUSH MOUNT / PANEL MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers or panel mount.
* European wall box mount applications = Use #72350X47D, #72350X35D #77190 wall boxes.
* American 2x4 wall box mount applications = Use duplex outlet #70114-DW.
* Locking outlet version #70310 available. Prevents accidental disconnects.

70114-1G

EUROPEAN SCHUKO 16A-250V OUTLET, CEE 7/3 TYPE F (EU1-16R), SHUTTERED CONTACTS, (86mmX86mm SIZE), FLUSH MOUNT OR PANEL MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* European wall boxes = #72350X47D, 72350X35D, 72350-F, 77190, 72360.
* Weatherproof versions available. Use #74790-B1 (IP66 rated), #74790-A (IP55 rated), #74790 (IP13 rated).

70114-2G

EUROPEAN SCHUKO 16A-250V DUPLEX OUTLET, CEE 7/3 TYPE E, F (EU1-16R), SHUTTERED CONTACTS, 86mmX146mm SIZE, FLUSH MOUNT OR PANEL MOUNT. WHITE.
Notes:
* European wall boxes = #72355X47D, 72355X35D, 72355-F, 72365.
* Weatherproof versions available. Use #74790-B2 (IP66 rated), #74790-DX (IP54 rated).
* American 2x4 wall box mount applications = view outlet #70114-DW.

70114-2USB

EUROPEAN SCHUKO 16 AMPERE-250 VOLT CEE 7/3 TYPE F DUPLEX OUTLET (EU1-16R), SHUTTERED CONTACTS, TWO USB-A PORTS, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Combined USB output = DC 5.0V / 2.4A.
* Flush mount on European wall box #77190-D.

70114-CSS

EUROPEAN CHILD-PROOF SOCKET SECURITY / SAFETY SHIELD. SHIELD MOUNTS INTO SCHUKO / FRENCH POWER OUTLETS, SOCKET STRIPS AND IN-LINE CONNECTORS. "KEY" REQUIRED TO REMOVE SAFETY SHIELD. "KEY" INCLUDED.
Notes:
* Safety, security shield restricts access to the socket and prevents objects from being inserted into the outlets electrical system.

70114-DB

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE / DARK GRAY.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DB2

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. DARK GRAY.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DB3

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. CHROME / DARK GRAY.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DB4

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 QUAD OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. BLACK.
Notes:
* Mounts on American 4x4 wall boxes or panel mount.
* Accepts European Schuko type C, E, F, CEE 7, CEE 7/4, CEE 7/7 plugs, Europlug & Italy, Chile type L 10 ampere plugs.
* "Quad" Wall box, Panel mount outlets are available in white, black, red, gray, chrome in various color combinations.
* Terminal screws torque = 0.5Nm.

70114-DR

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. WHITE / RED
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DR2

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. DRK GRAY / RED.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DR3

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. CHROME / RED.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DR4

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 QUAD OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. RED / WHITE.
Notes:
* Mounts on American 4x4 wall boxes or panel mount.
* Accepts European Schuko type C, E, F, CEE 7, CEE 7/4, CEE 7/7 plugs, Europlug & Italy, Chile type L 10 ampere plugs.
* "Quad" Wall box, Panel mount outlets are available in white, black, red, gray, chrome in various color combinations.
* Terminal screws torque = 0.5Nm.

70114-DW

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. WHITE.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 39/32" (83mm / 84mm) mounting centers.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.

70114-DW2

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). DARK GRAY / WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DW3

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 DUPLEX OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. CHROME / WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Weatherproof IP 55 Version: Requires ONE # 84202-WP & TWO # 84211-A outlets (White). Options: Red, Dark Gray.
* Outlet accepts European Type C, E, F, CEE 7, CEE 7/4, CEE 7/7 Plugs, Europlug & Italy, Chile, Type L 10A-250V Plugs.
* Outlet terminal screws torque = 0.5Nm.

70114-DW4

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 QUAD OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), SHUTTERED CONTACTS, WALL BOX, PANEL MOUNT. WHITE.
Notes:
* Mounts on American 4x4 wall boxes or panel mount.
* Accepts European Schuko type C, E, F, CEE 7, CEE 7/4, CEE 7/7 plugs, Europlug & Italy, Chile type L 10 ampere plugs.
* "Quad" Wall box, Panel mount outlets are available in white, red, gray, chrome in various color combinations.
* Terminal screws torque = 0.5Nm.

70114-S

EUROPEAN SCHUKO 16A-250V SINGLE OUTLET CEE 7/3 TYPE F (EU1-16R), "SHUTTERED CONTACTS". WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* European Schuko "locking outlet" #70300 available. Prevents accidental disconnects.

70115

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT SINGLE OUTLET, SHUTTERED CONTACTS, WHITE OUTLET, GREY ENCLOSURE.

70115-BLK

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT SINGLE OUTLET. BLACK.
Notes:
* Surface mount base plate available, use part #70115-BP.

70115-D

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT DUPLEX OUTLET, SHUTTERED CONTACTS, WHITE OUTLET, GREY ENCLOSURE.

70115-WHT

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT SINGLE OUTLET. WHITE.
Notes:
* Surface mount base plate available, use part #70115-BP.

70116-BLK

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT DUPLEX OUTLET. BLACK.
Notes:
* Surface mount base plate available, use part # 70116-BP.

70116-WHT

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT DUPLEX OUTLET. WHITE.
Notes:
* Surface mount base plate available, use part # 70116-BP.

70117

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT TRIPLE OUTLET. BASE PLATE INCLUDED, IVORY.
Notes:
* Surface mount base plate available, use part # 1493-008.

70118

EUROPEAN SCHUKO CEE 7/3 TYPE F (EU1-16R) 16A-250V SURFACE MOUNT QUAD OUTLET. IVORY.
Notes:
* Base plate # 0004-060 included with 70118. Use base plate when mounting on European wall boxes or metal panels.
* Base plate has cord grip feature that allows # 70118 to be used as a four outlet "quad" extension cord.

70118-NS

EUROPEAN SCHUKO 16A-250V SURFACE MOUNT QUAD OUTLET, IP20, CEE 7/3 TYPE F OUTLET, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet has cord grip / strain relief for extension cord applications. Requires European 16A-250V power cord. Power Cords Link
* Surface mount applications require fixing centers. View print for details.

70118-NSB

EUROPEAN SCHUKO 16A-250V SURFACE MOUNT QUAD OUTLET, IP20, CEE 7/3 TYPE F OUTLET, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet has cord grip / strain relief for extension cord applications. Requires European 16A-250V power cord. Power Cords Link
* Surface mount applications require fixing centers. View print for details.

70119-NSB

EUROPEAN SCHUKO 16A-250V SURFACE MOUNT SIX OUTLET, IP20, CEE 7/3 TYPE F OUTLET, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet has cord grip / strain relief for extension cord applications. Requires European 16A-250V power cord. Power Cords Link
* Surface mount applications require fixing centers. View print for details.

70119-NSW

EUROPEAN SCHUKO 16A-250V SURFACE MOUNT SIX OUTLET, IP20, CEE 7/3 TYPE F OUTLET, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet has cord grip / strain relief for extension cord applications. Requires European 16A-250V power cord. Power Cords Link
* Surface mount applications require fixing centers. View print for details.

70120-LFL-BLK

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F OUTLET (EU1-16R), 50mmX50mm SIZE, PANEL OR WALL BOX MOUNT. BLACK.
Notes:
* Stainless steel wall plates #97120-BZ and #97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Optional panel mount terminal shield #70127 available.
* European Schuko "locking" outlet #70300 available. Prevents accidental disconnects.

70120-LFL-BLU

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F OUTLET (EU1-16R), 50mmX50mm SIZE, PANEL OR WALL BOX MOUNT. BLUE.
Notes:
* Stainless steel wall plates #97120-BZ and #97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Optional panel mount terminal shield #70127 available.
* European Schuko "locking" outlet #70300 available. Prevents accidental disconnects.

70120-LFL-GRY

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F OUTLET (EU1-16R), 50mmX50mm SIZE, PANEL OR WALL BOX MOUNT. GRAY.
Notes:
* Stainless steel wall plates #97120-BZ and #97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Optional panel mount terminal shield #70127 available.
* European Schuko "locking" outlet #70300 available. Prevents accidental disconnects.

70120-LFL-RED

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F OUTLET (EU1-16R), 50mmX50mm SIZE, PANEL OR WALL BOX MOUNT. RED.
Notes:
* Stainless steel wall plates #97120-BZ and #97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Optional panel mount terminal shield #70127 available.
* European Schuko "locking" outlet #70300 available. Prevents accidental disconnects.

70120-LFL-WHT

EUROPEAN SCHUKO 16A-250V CEE 7/3 TYPE F OUTLET (EU1-16R), 50mmX50mm SIZE, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Stainless steel wall plates #97120-BZ and #97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Optional panel mount terminal shield #70127 available.
* European Schuko "locking" outlet #70300 available. Prevents accidental disconnects.

70130

EUROPEAN SCHUKO PLUG, 16A-250V, CEE 7/7 TYPE E, F PLUG (EU1-16P), 4.8mm DIA. PINS, REWIREABLE DOWN ANGLE PLUG, MAX. CORD O.D. = 10mm (0.394"). WHITE.

70130-BLK

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F PLUG (4.8 mm DIA. PINS), CEE 7/7 (EU1-16P), REWIREABLE DOWN ANGLE PLUG, MAX. CORD O.D. = 8.5mm (0.335"). BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70130-NSB

EUROPEAN SCHUKO PLUG, 16A-250V, IP20, CEE 7/7 TYPE E, F PLUG (EU1-16P), 4.8mm DIA. PINS, REWIREABLE DOWN ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), MAX. CORD O.D. = 10mm (0.394", NYLON. BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70130-NSW

EUROPEAN SCHUKO PLUG, 16A-250V, IP20, CEE 7/7 TYPE E, F PLUG (EU1-16P), 4.8mm DIA. PINS, REWIREABLE DOWN ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), MAX. CORD O.D. = 10mm (0.394"), NYLON. WHITE.

70130A

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F PLUG, 4.0 mm DIA. PINS, CEE 7/7 (EU1-16P), REWIREABLE DOWN ANGLE PLUG, MAX. CORD O.D. = 10mm (0.394"). IVORY.

70139

EUROPE, ITALY, INTERNATIONAL, SOUTH AFRICA, THAILAND, ASIA, SOUTH AMERICA 10A-250V REWIREABLE PLUG, SCREW TERMINALS, 4.0 mm DIA. PINS, CEE 7/16, CEI 23-50 (S10), SANS 164-6, 2 POLE-2 WIRE (2P), CORD GRIP RANGE = 0.315-0390". BLACK.
ACCEPTS ROUND & FLAT CORDAGE, INTERNAL & EXTERNAL STRAIN RELIEFS, IP20 RATED. IMQ APPROVAL, CE MARK.

70139-NB

EUROPE, INTERNATIONAL, SOUTH AFRICA, THAILAND, ASIA, SOUTH AMERICA EUROPLUG, SCREW TERMINALS, TYPE C REWIREABLE PLUG, 2.5A-250V, 4.0 mm DIA. PINS, CEE 7/16, CEI 23-16, SANS 164-5, 2 POLE-2 WIRE (2P), MAX. CORD O.D. = 0.300". BLACK.
Notes:
* Accepts round & flat cord. Internal & external strain reliefs.

70139-NW

EUROPE, INTERNATIONAL, SOUTH AFRICA, THAILAND, ASIA, SOUTH AMERICA EUROPLUG, SCREW TERMINALS, TYPE C REWIREABLE PLUG, 2.5A-250V, 4.0 mm DIA. PINS, CEE 7/16, CEI 23-16, SANS 164-5, 2 POLE-2 WIRE (2P), MAX. CORD O.D. = 0.300".WHITE.
Notes:
* Accepts round & flat cord. Internal & external strain reliefs.

70140

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM, RUSSIA PLUG, 16 AMPERE-250 VOLT, CEE 7/7 (EU1-16P) TYPE E, F PLUG, 4.8mm DIA. PINS), IP20 RATED, REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409"). WHITE.
Notes:
* European Schuko "locking plug" #70341-N is listed below. Prevents accidental disconnects.

70140-NSLW

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F CEE 7/7 (EU1-16P) PLUG, 4.8 mm DIA. PINS, REWIREABLE PLUG, STRAIN RELIEF, O.D. CORD GRIP = 11.5mm (0.453"). WHITE.
Notes:
* European Schuko "locking plug" #70341-N is listed below. Prevents accidental disconnects.

70140-NSW

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F CEE 7/7 (EU1-16P) PLUG, 4.8 mm DIA. PINS, REWIREABLE PLUG, STRAIN RELIEF, O.D. CORD GRIP = 8.3mm (0.330"). WHITE.
Notes:
* European Schuko "locking plug" #70341-N is listed below. Prevents accidental disconnects.

70141

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM, RUSSIA PLUG, 16A-250V, CEE 7/7 (EU1-16P) TYPE E, F PLUG (4.8mm DIA. PINS), IP20 RATED, REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409") DIA., BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70141-CSS

EUROPEAN CHILD-PROOF SOCKET SECURITY / SAFETY SHIELD. SHIELD MOUNTS INTO SCHUKO / FRENCH POWER OUTLETS, SOCKET STRIPS AND IN-LINE CONNECTORS. "KEY" REQUIRED TO REMOVE SAFETY SHIELD. "KEY" INCLUDED.
Notes:
* Safety, Security Shield restricts access to the socket and prevents objects from being inserted into the outlets electrical system.

70141-F

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V, CEE 7/7 (EU1-16P) TYPE E, F PLUG, 4.8mm DIA. PINS, REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409"). BLACK.
Notes:
* All CEE 7/7 European Schuko type plugs & power cords mate with France / Belgium outlets, sockets, connectors.

70141-HD

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM HEAVY DUTY RUBBER PLUG, 16A-250V, (4.8mm DIA. PINS), TYPE E, F PLUG CEE 7/7 (EU1-16P), IP54, REWIREABLE PLUG, TPE RUBBER MATERIAL, IMPACT RESISTANT, MAX. CORD O.D. 13MM = 0.5118". BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70141-N

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM, RUSSIA PLUG, 16 AMPERE-250 VOLT, CEE 7/7 (EU1-16P) TYPE E, F PLUG (4.8mm DIA. PINS), IP20 RATED, REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409") DIA., BLACK.
Notes:
* European Schuko "Locking Plug" #70341-N is listed below. Prevents accidental disconnects.

70141-NS

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, CEE 7/7 TYPE E, F PLUG (EU1-16P), 4.8 mm DIA. PINS, REWIREABLE PLUG, O.D. CORD GRIP = 8.4mm (0.330"). BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70141-NSL

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F PLUG, CEE 7/7 (EU1-16P), 4.8 mm DIA. PINS, REWIREABLE PLUG, STRAIN RELIEF, O.D. CORD GRIP = 11.5mm (0.450"). BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70142

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM, RUSSIA PLUG, 16 AMPERE-250 VOLT, CEE 7/7 (EU1-16P) TYPE E, F PLUG, 4.8mm DIA. PINS, IP20 RATED, REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409"). GRAY.
Notes:
* European Schuko "locking plug" #70341-N is listed below. Prevents accidental disconnects.

70142A

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, TYPE E, F PLUG, CEE 7/7 (EU1-16P), 4.0 mm DIA. PINS, REWIREABLE PLUG, STRAIN RELIEF, O.D. CORD GRIP = 8.3mm (0.330"). WHITE.

70150-A

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V, 4.8 mm DIA. PINS, TYPE E, F PLUG, CEE 7/7 (EU1-16P), IP44, IMPACT RESISTANT, REWIREABLE RUBBER PLUG, MAX. CORD O.D. = 8.0mm (0.315"), BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70150-AD

AUDIO-HIFI EUROPEAN PLUG, 16A-250V, GERMANY, FRANCE, BELGIUM 16 AMPERE-250 VOLT TYPE E, F PLUG, CEE 7/7, CEE 7/4 (EU1-16P), 4.8 mm DIA. PINS, IP54 RATED, REWIREABLE POWER PLUG, DUAL STRAIN RELIEFS, "T" MARK (IMPACT RESISTANT BODY), TERMINALS ACCEPT 12/3, 14/3, 16/3, 18/3 CONDUCTORS, MAX. O.D. CORD GRIP = 12.4mm (0.473"), BLACK.

70150-DA

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM RUBBER DOWN ANGLE PLUG, 16 AMPERE-250 VOLT CEE 7/7, VDE DIN 0620 TYPE E, F (EU1-16P), (4.8mm DIA. PINS), REWIREABLE PLUG, TPE RUBBER MATERIAL, 2 POLE-3 WIRE GROUNDING (2P+E), IP44, IK08 RATED, IMPACT & UV RESISTANT, OPERATING TEMP. = -25°C TO +40°C, ACCEPTS 0.75mm² UP TO 2.5mm² CORDAGE, MAX. CORD O.D.= 12mm DIA., BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70150-N

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, 16A-250V TYPE E, F PLUG, CEE 7/7, CEE 7/4 PLUG (4.8mm DIA. PINS) (EU1-16P), IP54 RATED, REWIREABLE PLUG, O.D. CORD GRIP = 12.4mm (0.473"), BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70150-NS

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM RUBBER PLUG, 16 AMPERE-250 VOLT CEE 7/7, VDE DIN 0620 TYPE E, F (EU1-16P), (4.8mm DIA. PINS), REWIREABLE PLUG, TPE RUBBER MATERIAL, 2 POLE-3 WIRE GROUNDING (2P+E), IP44, IK08 RATED, IMPACT & UV RESISTANT, OPERATING TEMP. = -25°C TO +40°C, ACCEPTS 0.75mm² UP TO 2.5mm² CORDAGE, MAX. CORD O.D.= 12mm DIA., BLACK.
Notes:
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70151

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, (EU1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG, 4.8 mm DIA. PINS, IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLACK.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70151-BLU

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, (EU1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG, 4.8 mm DIA. PINS, IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLUE.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70151-RD

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM PLUG, (EU1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG, 4.8 mm DIA. PINS, IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., RED.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking plug available # 70341-N. Locking design also prevents accidental disconnect.

70161

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F, CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, IP20, MAX. CORD O.D. = 13mm (0.510"), BLACK.
Notes:
* Operating temp. = -10°C to +60°C.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70161-A

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE E, F CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, MAX. CORD O.D. = 12mm (0.472"). BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70161-B2

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) DUPLEX POWER STRIP / REWIREABLE IN-LINE CONNECTOR, IP20 RATED, NYLON. BLACK.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 8mm (0.315").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-B3

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, THREE (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20 RATED, NYLON. BLACK.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D.: 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-B4

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, FOUR (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20 RATED, NYLON. BLACK.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-B6

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, SIX (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20 RATED, NYLON. BLACK.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-HD

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F, CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, MAX. CORD O.D. = 0.433". BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70161-HDA

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F, CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, IP54, SPRING LOADED SNAP SHUT COVER, MAX. CORD O.D. = 0.433". BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70161-HDB

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F, CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, IP54, RUBBER FLIP LID CLOSURE COVER, MAX. CORD O.D. = 0.433". BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70161-W

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F, CEE 7/3 (EU1-16R) REWIREABLE IN-LINE CONNECTOR, MAX. CORD O.D. = 13mm (0.510"). WHITE.
Notes:
* Select a European 16A-250V power cord. Power Cords Link
* European Schuko "locking connector" #70361 is listed below. Prevents accidental disconnects.

70161-W2

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) DUPLEX POWER STRIP / REWIREABLE IN-LINE CONNECTOR, IP20 RATED, NYLON. WHITE.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 8mm (0.315").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-W3

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, THREE (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20 RATED. NYLON. WHITE.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-W4

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, FOUR (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20 RATED. NYLON. WHITE.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70161-W6

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT TYPE F CEE 7/3 (EU1-16R) POWER STRIP / REWIREABLE IN-LINE CONNECTOR, SIX (45° ANGLE) OUTLETS, SHUTTERED CONTACTS, IP20. NYLON. WHITE.
Notes:
* View print for power supply cords or use 1.5mm² cordage. Max. O.D. = 10mm (0.394").
* Select a European 16A-250V power cord. Power Cords Link
* Temp. Range: Nylon (PA) Temp. rating = -40°C to +75°C., VDE Minimum Temp. rating = -5°C to +35°C.

70162

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16A-250V CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, IP20 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLACK.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70162-BLU

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16A-250V CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, IP20 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLUE.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70162-RD

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16A-250V CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, IP20 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., RED.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70162-WP

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16 AMPERE-250 VOLT CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, MAX. CORD O.D. = 0.492" DIA., BLACK.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70162-WP-BLU

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16 AMPERE-250 VOLT CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, MAX. CORD O.D. = 0.492" DIA., BLUE.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70162-WP-RD

EUROPEAN SCHUKO, GERMANY CONNECTOR, (EU1-16R) 16 AMPERE-250 VOLT CEE 7/3, DIN / VDE 0620, IEC 60884 TYPE F, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, MAX. CORD O.D. = 0.492" DIA., RED.
Notes:
*ELAMID Plastic Material Features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70170-3C

EUROPEAN SCHUKO CONNECTOR, 16A-250V CEE 7/3 TYPE F (EU1-16R) THREE OUTLET SPLASHPROOF RUBBER REWIREABLE CONNECTOR (***), IP44, FLIP LID CLOSURE COVERS, T SHAPE BODY, IMPACT RESISTANT. BLACK.
Notes:
* Max cord O.D. = 15mm (0.590").
* (***) with integral hanger bracket.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.

70170-3CA

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE-250 VOLT, CEE 7/3 TYPE F (EU1-16R) THREE OUTLET, IP54 RUBBER REWIREABLE CONNECTOR (***), SNAP SHUT CLOSURE LIDS. BLACK.
Notes:
* (***) with integral hanger bracket.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.

70170-N

EUROPEAN SCHUKO CONNECTOR, 16A-250V TYPE F REWIREABLE CONNECTOR, CEE 7/3 (EU1-16R), IP54 RATED, CLOSURE LID, POWER ON INDICATOR, HIGH IMPACT RESISTANT BODY, MAX. CORD O.D. = 15mm (0.590") DIA., BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70170-NS

EUROPEAN SCHUKO, GERMANY, FRANCE, BELGIUM RUBBER CONNECTOR, 16 AMPERE-250 VOLT CEE 7/3, VDE DIN 0620 TYPE F, TPE RUBBER MATERIAL, IP44, IK08 RATED, IMPACT & UV RESISTANT, OPERATING TEMP. = -25°C TO +40°C, ACCEPTS 0.75mm² UP TO 2.5mm² CORDAGE, MAX. CORD O.D.= 12mm DIA., BLACK.
Notes:
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.
* Watertight IP68/IP66 Locking Connector available # 70361. Locking design also prevents accidental disconnect.

70190

EUROPEAN CEE 7/7 (EU1-16P) SCHUKO TYPE E, F, 16A-250V WEATHERPROOF IP44 POWER INLET. BLACK.
Notes:
* # 70190 Accepts European Schuko # 70161 (EU1-16R), France / Belgium # 71161 (FR1-16R) type connectors.
* IP68 Rated Watertight option listed below.
* # 71442 , 71443 , 71444 Watertight Power Inlets Lock onto Schuko Connector # 71445 . Prevents accidental disconnects.

70341

EUROPEAN SCHUKO, GERMAN, FRANCE, BELGIUM PLUG, IP66 / IP68 WATERTIGHT, 16A-250V, CEE 7/7 (EU1-16P) TYPE E, F PLUG, REWIREABLE LOCKING PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE.
Notes:
* # 70341-N Watertight Plug Locks onto Schuko Outlets / Connectors series # 70361. Prevents accidental disconnects.
* # 70341-N Watertight Plug Locks onto France, Belgium Outlets / Connectors series # 71175. Prevents accidental disconnects.
* # 70341-N Watertight Plug Locks onto Schuko Watertight Power Strip # 71449. Prevents accidental disconnects.
* Available in Color Dark Green. Part #70341-N-GRN

70341-N

EUROPEAN SCHUKO, GERMAN, FRANCE, BELGIUM PLUG, IP66 / IP68 WATERTIGHT, 16A-250V, CEE 7/7 (EU1-16P) TYPE E, F PLUG, REWIREABLE LOCKING PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE.
Notes:
* # 70341-N Watertight Plug Locks onto Schuko Outlets / Connectors series # 70361. Prevents accidental disconnects.
* # 70341-N Watertight Plug Locks onto Schuko Watertight Power Strip # 71449. Prevents accidental disconnects.
* European Schuko Watertight Extension cords available. View # 70025.
* Available in Color Dark Green. Part #70341-N-GRN

70341-N-GRN

EUROPEAN SCHUKO, GERMAN, FRANCE, BELGIUM PLUG, IP66 / IP68 WATERTIGHT, 16A-250V, CEE 7/7 (EU1-16P) TYPE E, F PLUG, REWIREABLE LOCKING PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). DARK GREEN.
Notes:
* # 70341-N-GRN Watertight Plug Locks onto Schuko Outlets / Connectors series # 70361-GRN and # 70310-NS-GRN. Prevents accidental disconnects.
* European Schuko Watertight Extension cords available. View # 70025.
* Available in Color Blue. Part #70341-N

70361

EUROPEAN SCHUKO CONNECTOR, LOCKING 16A-250V IP66 / IP68 WATERTIGHT REWIREABLE CONNECTOR, CEE 7/3 (EU1-16R) TYPE E, F, SHUTTERED CONTACTS. BLUE.
Notes:
* # 70361 Watertight Connector Locks onto Schuko Plug # 70341-N . Prevents accidental disconnects.
* # 70361 Watertight Connector Locks onto Schuko Plug # 71441. Prevents accidental disconnects.
* # 70361 Watertight Connector Locks onto Schuko Power Inlet series # 71442. Prevents accidental disconnects.
* European Schuko Watertight Extension cords available. View # 70025.
* Available in Color Dark Green. Part #70361-GRN

70361-GRN

EUROPEAN SCHUKO CONNECTOR, LOCKING 16A-250V IP66 / IP68 WATERTIGHT REWIREABLE CONNECTOR, CEE 7/3 (EU1-16R) TYPE E, F, SHUTTERED CONTACTS. DARK GREEN.
Notes:
* # 70361-GRN Watertight Connector Locks onto Schuko Plug # 70341-N-GRN . Prevents accidental disconnects.
* European Schuko Watertight Extension cords available. View # 70025.
* Available in Color Blue. Part #70361

70395

EUROPEAN SCHUKO 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 WATERTIGHT LOCKING FLANGE MOUNT (60mm-60mm) POWER INLET WITH GASKET AND CLOSURE COVER, CEE 7/4 TYPE E (EU1-16P), PANEL MOUNT OR WALL BOX MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). NYLON. GRAY / BLUE.
Notes:
* 70395 Watertight Power Inlet Locks onto Schuko Connector # 70361 . Prevents accidental disconnects.
* Material = Thermoplastic Elastomer, Temperature Range: -15°C to +70°C.
* European Schuko Watertight Extension cords available. View # 70025.

71100x45

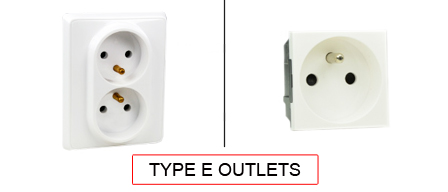

FRANCE, BELGIUM 16A-250V OUTLET CEE 7/5 TYPE E (FR1-16R), SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* CEE 7/7 European type plugs & power cords connect with France / Belgium outlets, sockets, connectors.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

71100X45-BLK

FRANCE, BELGIUM 16A-250V OUTLET CEE 7/5 TYPE E (FR1-16R), SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE. BLACK (MAGNESIUM COLOR).
Notes:
* CEE 7/7 European type plugs & power cords connect with France / Belgium outlets, sockets, connectors.
* Mounts on American 2X4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame #79100X45. DIN rail mount Frame #79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

71110-BLK

FRANCE, BELGIUM CEE 7/5 TYPE E 16A-250V (FR1-16R) PANEL MOUNT OUTLET, SHUTTERED CONTACTS. BLACK.
Notes:
* Requires #97120-BZ wall plate when mounted on American 2x4 wall boxes.
* France, Belgium "locking" outlets #71125, #71130 available. Prevents accidental disconnects.

71110-N

FRANCE, BELGIUM CEE 7/5 TYPE E 16A-250V (FR1-16R) PANEL MOUNT OUTLET, SHUTTERED CONTACTS. WHITE.
Notes:
* Requires #97125 wall plate when mounted on American 2x4 wall boxes.
* France, Belgium "locking" outlets #71125, #71130 available. Prevents accidental disconnects.

71110-WHT

FRANCE, BELGIUM CEE 7/5 TYPE E 16A-250V (FR1-16R) PANEL MOUNT OUTLET, SHUTTERED CONTACTS. WHITE.
Notes:
* Requires #97120-BZ wall plate when mounted on American 2x4 wall boxes.
* France, Belgium "locking" outlets #71125, #71130 available. Prevents accidental disconnects.

71114

FRANCE, BELGIUM 16A-250V TYPE E CEE 7/5 (FR1-16R) DUPLEX RECEPTACLE, OUTLET, SOCKET, "SHUTTERED CONTACTS". WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers or panel mount.
* All CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium outlets, sockets, connectors.
* Outlet " Safety Shield" Available. View # 70141-CSS.

71114-NS

FRANCE, BELGIUM 16A-250V TYPE E CEE 7/5 (FR1-16R) DUPLEX OUTLET, PANEL MOUNT OR WALL BOX MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers or panel mount.
* France, Belgium "locking" outlets #71125, #71130 available. Prevents accidental disconnects.

71114-S

FRANCE, BELGIUM 16A-250V TYPE E OUTLET CEE 7/5 (FR1-16R), "SHUTTERED CONTACTS". WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* GFCI (RCBO/RCD) France, Belgium Outlet available. View # 71200X45, mounts on American wall boxes.
* All CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium outlets, sockets, connectors.

71130-NSB

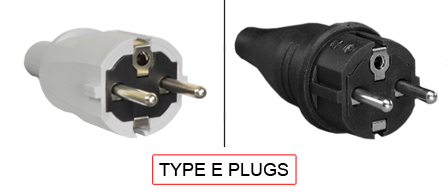

FRANCE, BELGIUM PLUG, 16 AMPERE-250 VOLT, CEE 7/7 TYPE E, F PLUG (FR1-16P), (4.8mm DIA. PINS), REWIREABLE ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), MAX. CORD O.D. = 10mm (0.394"). BLACK.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.
* Watertight IP68/IP66 Locking plug available # 71341. Locking design also prevents accidental disconnect.

71130-NSW

FRANCE, BELGIUM PLUG, 16 AMPERE-250 VOLT, CEE 7/7 TYPE E, F PLUG (FR1-16P), (4.8mm DIA. PINS), REWIREABLE ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), MAX. CORD O.D. = 10mm (0.394"). WHITE.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71140

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V, CEE 7/7 (FR1-16P) TYPE E, F PLUG (4.8mm DIA. PINS), REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409") DIA., WHITE.
Notes:
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71141

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V CEE 7/7 (FR1-16P) TYPE E, F PLUG (4.8mm DIA. PINS), REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409") DIA., BLACK.
Notes:
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.
* Watertight IP68/IP66 Locking plug available # 71341. Locking design also prevents accidental disconnect.

71141-HD

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V TYPE E PLUG, CEE 7/7 (FR1-16P) (4.8mm DIA. PINS), IP54, REWIREABLE PLUG, IMPACT RESISTANT, MAX. CORD O.D. = 0.433". BLACK.
Notes:
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.
* Watertight IP68/IP66 Locking plug available # 71341. Locking design also prevents accidental disconnect.

71142

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V CEE 7/7 (FR1-16P) TYPE E, F PLUG (4.8mm DIA. PINS), REWIREABLE PLUG, O.D. CORD GRIP = 10.4mm (0.409") DIA., GRAY.
Notes:
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71150

FRANCE, BELGIUM, EUROPEAN SCHUKO, GERMANY PLUG, 16A-250V TYPE E, F PLUG, CEE 7/7 (FR1-16P) (4.8mm DIA. PINS), IP44, IMPACT RESISTANT, REWIREABLE RUBBER PLUG, MAX. CORD O.D. = 0.315" DIA., BLACK.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.
* Watertight IP68/IP66 Locking plug available # 71341. Locking design also prevents accidental disconnect.

71151

FRANCE, BELGIUM PLUG, (FR1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG (4.8mm DIA. PINS), IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLACK.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71151-BLU

FRANCE, BELGIUM PLUG, (FR1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG (4.8mm DIA. PINS), IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., BLUE.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71151-RD

FRANCE, BELGIUM PLUG, (FR1-16P) 16A-250V CEE 7/7, DIN / VDE 0620, IEC 60884 TYPE E, F PLUG (4.8mm DIA. PINS), IP44 RATED, IK08 RATED, REWIREABLE ELAMID PLASTIC PLUG, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, TERMINALS ACCEPT 2.5mm CONDUCTORS, MAX. CORD O.D. = 0.492" DIA., RED.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* CEE 7/7 European Schuko type plugs & power cords connect with France / Belgium CEE 7/5 outlets, sockets, connectors.

71161

FRANCE, BELGIUM CONNECTOR, 16A-250V CEE 7/5 (FR1-16R) TYPE E, F REWIREABLE IN-LINE CONNECTOR. BLACK.
Notes:
* Terminals accept 4.0mm (12 AWG) conductors, Max. cord dia. = 10mm (0.394").
* Watertight IP68/IP66 Locking Connector available # 71175". Locking design also prevents accidental disconnect.

71162-WP

FRANCE, BELGIUM CONNECTOR, (FR1-16R) 16 AMPERE-250 VOLT CEE 7/5, DIN / VDE 0620, TYPE E, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, MAX. CORD O.D. = 0.492" DIA., BLACK.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking Connector available # 71175". Locking design also prevents accidental disconnect.

71162-WP-BLU

FRANCE, BELGIUM CONNECTOR, (FR1-16R) 16 AMPERE-250 VOLT CEE 7/5, DIN / VDE 0620, TYPE E, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, MAX. CORD O.D. = 0.492" DIA., BLUE.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking Connector available # 71175". Locking design also prevents accidental disconnect.

71162-WP-RD

FRANCE, BELGIUM CONNECTOR, (FR1-16R) 16 AMPERE-250 VOLT CEE 7/5, DIN / VDE 0620, TYPE E, REWIREABLE ELAMID PLASTIC CONNECTOR, PROTECTIVE FLIP LID COVER, IP44 RATED, IK08 RATED, UV PROTECTION, CHEMICAL AND IMPACT RESISTANT, MAX. CORD O.D. = 0.492" DIA., RED.
Notes:
* ELAMID plastic material features: -40°C to +80°C rated, UV protection, chemical and impact resistant.
* Watertight IP68/IP66 Locking Connector available # 71175". Locking design also prevents accidental disconnect.

71170

FRANCE, BELGIUM CONNECTOR, 16A-250V CEE 7/5 (FR1-16R) TYPE E, F REWIREABLE IN-LINE RUBBER CONNECTOR. BLACK.
Notes:
* Terminals accept 2.5mm (14 AWG) conductors, Max. cord dia. = 10mm (0.394").
* Watertight IP68/IP66 Locking Connector available # 71175". Locking design also prevents accidental disconnect.

71175

FRANCE, BELGIUM CONNECTOR, LOCKING 16 AMPERE-250 VOLT CEE 7/5 (FR1-16R) TYPE E IP66 / IP68 WATERTIGHT REWIREABLE CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE.
* # 71175 Watertight Connector Locks onto France / Belgium Plug # # 71341. Prevents accidental disconnects.
* France / Belgium Watertight extension cords available. View # 71015.
* Available in Color Dark Green. Part #71175-GRN

71175-GRN

FRANCE, BELGIUM CONNECTOR, LOCKING 16 AMPERE-250 VOLT CEE 7/5 (FR1-16R) TYPE E IP66 / IP68 WATERTIGHT REWIREABLE CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). DARK GREEN.
* # 71175-GRN Watertight Connector Locks onto France / Belgium Plug # 71341-GRN. Prevents accidental disconnects.
* France / Belgium Watertight extension cords available. View # 71015.
* Available in Color Blue. Part #71175

71341

FRANCE, BELGIUM PLUG, 16 AMPERE-250 VOLT CEE 7/7 (FR1-16P) TYPE F PLUG, IP66 / IP68 WATERTIGHT, REWIREABLE LOCKING PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE.
Notes:
* # 71341 Watertight Plug Locks onto France / Belgium Connector # 71175. Prevents accidental disconnects.
* # 71341 Watertight Plug Locks onto Schuko Power Strip # 71449 # 71449. Prevents accidental disconnects.
* France / Belgium Watertight extension cords available. View # 71015.
* Available in Color Dark Green. Part #71341-GRN

71341-GRN

FRANCE, BELGIUM PLUG, 16 AMPERE-250 VOLT CEE 7/7 (FR1-16P) TYPE F PLUG, IP66 / IP68 WATERTIGHT, REWIREABLE LOCKING PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). DARK GREEN.
Notes:
* # 71341-GRN Watertight Plug Locks onto France / Belgium Connector # 71175-GRN. Prevents accidental disconnects.
* # 71341-GRN Watertight Plug Locks onto Schuko Power Strip # 71449 # 71449. Prevents accidental disconnects.
* France / Belgium Watertight extension cords available. View # 71015.
* Available in Color Blue. Part #71341

71440

SPARE CLOSURE COVER FOR PLUG # 71441, PROTECTS PLUG FROM WEATHER AND IMPACT DAMAGE, IP68 RATED. GRAY.
Notes:
* Material: PA6 (Nylon) Temp. Range:-40°C to +80°C.

71440-A

SPARE CLOSURE COVER FOR FLANGED INLETS # 71442, # 71443, PROTECTS INLETS FROM WEATHER AND IMPACT DAMAGE, IP68 RATED. GRAY.
Notes:
* Material: PA6 (Nylon) Temp. Range:-40°C to +80°C.

71440-B

SPARE CLOSURE COVER FOR FLANGED INLET # 71444, PROTECTS INLET FROM WEATHER AND IMPACT DAMAGE, IP68 RATED. GRAY.
Notes:
* Material: PA6 (Nylon) Temp. Range:-40°C to +80°C.

71441

EUROPEAN SCHUKO PLUG, 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 RATED (WATERTIGHT), CEE 7/4 TYPE E PLUG (EU1-16P), REWIREABLE LOCKING PLUG, GRAY / BLUE.
Notes:
* # 71441 Watertight Plug Locks onto Schuko Connector # 71445. Prevents accidental disconnects.
* # 71441 Watertight Plug Locks onto Schuko Connector # 70361. Prevents accidental disconnects.
* # 71441 Watertight Plug Locks onto Schuko Power Strip # 71449. Prevents accidental disconnects.
* Spare watertight IP68 rated closure covers available for # 71441. View # 71440.
* European Schuko Watertight Extension cords available. View # 72025.

71442

EUROPEAN SCHUKO 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 WATERTIGHT LOCKING FLANGE MOUNT (58mm-60mm) POWER INLET WITH GASKET AND CLOSURE COVER, CEE 7/4 TYPE E (EU1-16P), PANEL MOUNT OR WALL BOX MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). NYLON. GRAY / BLUE.
Notes:
* # 71442 Watertight Power Inlet Locks onto Schuko Connector # 71445 . Prevents accidental disconnects.
* # 71442 Watertight Power Inlet Locks onto Schuko Connector # 70361. Prevents accidental disconnects.
* Spare watertight IP68 rated closure covers available for # 71442. View # 71440-A.
* European Schuko Watertight Extension cords available. View # 72025.

71443

EUROPEAN SCHUKO 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 RATED WATERTIGHT SURFACE MOUNT LOCKING FLANGED POWER INLET, CEE 7/4 TYPE E (EU1-16P). GRAY / BLUE.
Notes:
* Includes one PG16 cable strain relief. Additional PG16 cable strain reliefs use Part # 20516-GRY.
* # 71443 Watertight Power Inlet Locks onto Schuko Connector # 71445 . Prevents accidental disconnects.
* # 71443 Watertight Power Inlet Locks onto Schuko Connector # 70361. Prevents accidental disconnects.
* Spare watertight IP68 rated closure covers available for # 71443. View # 71440-A.
* European Schuko Watertight Extension cords available. View # 72025.

71444

EUROPEAN SCHUKO 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 RATED WATERTIGHT SURFACE MOUNT DOWN ANGLE LOCKING FLANGED POWER INLET, CEE 7/4 TYPE E (EU1-16P). GRAY / BLUE.
Notes:
* Includes one PG16 cable strain relief. Additional PG16 cable strain reliefs use Part # 20516.
* # 71444 Watertight Power Inlet Locks onto Schuko Connector # 71445 . Prevents accidental disconnects.
* # 71444 Watertight Power Inlet Locks onto Schuko Connector # 70361. Prevents accidental disconnects.
* Spare watertight IP68 rated closure covers available for # 71444. View # 71440-B.
* European Schuko Watertight Extension cords available. View # 72025.

71445

EUROPEAN SCHUKO CONNECTOR, 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 RATED WATERTIGHT REWIREABLE LOCKING CONNECTOR, CEE 7/3 TYPE F (EU1-16R). GRAY / BLUE.
Notes:
* # 71445 Watertight Connector Locks onto Schuko Plug # 71441. Prevents accidental disconnects.
* # 71445 Watertight Connector Locks onto Schuko Plug # 70341-N . Prevents accidental disconnects.
* # 71445 Watertight Connector Locks onto France / Belgium Plug, # 71341 . Prevents accidental disconnects.
* Cord grip range = 8-16mm (0.315-0.629"), Terminal torque = 3Nm max. Material: PA6 (Nylon) Temp. Range:-40°C to +80°C.
* European Schuko Watertight Extension cords available. View # 72025.

72100x45

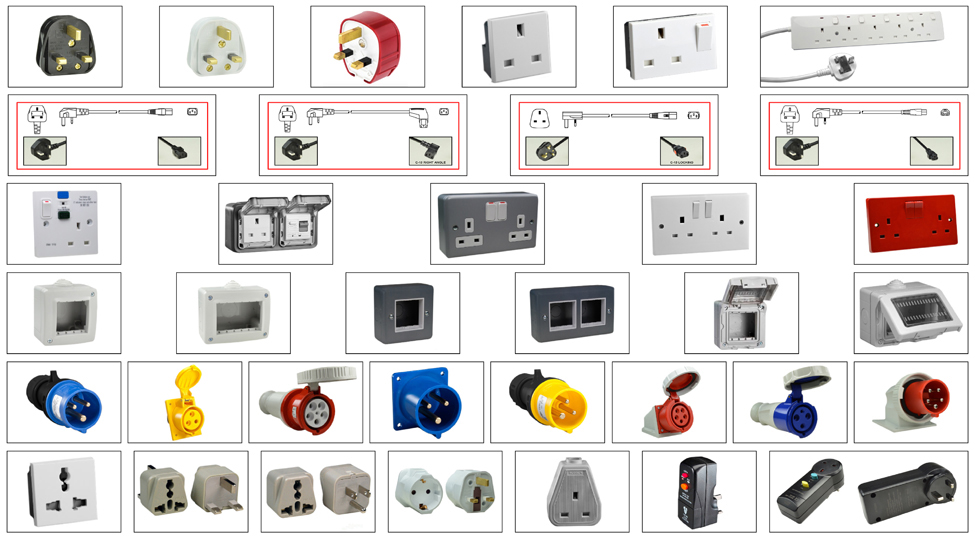

BRITISH, UNITED KINGDOM, UK BS 1363A, SAUDI ARABIA SASO 2203 13A-250V 45mmX45mm SIZE MODULAR OUTLET (SA1-13R) (UK1-13R) TYPE G SOCKET, SHUTTERED CONTACTS. WHITE. ASTA, SASO 2203, INTERTEK APPROVED.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

72100x45-BLK

BRITISH, UNITED KINGDOM, UK BS 1363A, SAUDI ARABIA SASO 2203,13A-250V, 45mmX45mm SIZE MODULAR OUTLET (SA1-13R) (UK1-13R) TYPE G SOCKET, SHUTTERED CONTACTS, BLACK (MAGNESIUM COLOR). ASTA, SASO 2203 (INTERTEK) APPROVED.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

72105x45

UK, BRITISH, UNITED KINGDOM, SINGAPORE 13A-250V 67.5mmX45mm MODULAR SIZE OUTLET (UK1-13R), BS 1363A TYPE G SOCKET, SHUTTERED CONTACTS, SINGLE POLE ON/OFF SWITCH. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

72110

BRITISH, UNITED KINGDOM, SAUDI ARABIA 13A-250V PANEL MOUNT TYPE G OUTLET, BS 1363 (UK1-13R, SASO 2203, SA1-13R), SHUTTERED CONTACTS, SIDE WIRED. WHITE.
Notes:
* Face Dia. = 49.12mm.
* Outlet has "G MARK" certification required by Gulf States, Saudi Arabia "SASO 2203", Bahrain, Kuwait, Qatar, Oman, Yemen, UAE.

72110-BLK

BRITISH, UNITED KINGDOM 13A-250V PANEL MOUNT OUTLET (UK1-13R), BS 1363A TYPE G SOCKET, SHUTTERED CONTACTS, BACK WIRED. BLACK.
Notes:
* Face Dia. = 50mm.

72110-C

BRITISH, UNITED KINGDOM, 13A-250V PANEL MOUNT TYPE G OUTLET, BS 1363 (UK1-13R), SHUTTERED CONTACTS, BACK WIRED. WHITE.
Notes:
* Face dia. = 49.12mm.

72110-RED

BRITISH, UNITED KINGDOM 13A-250V PANEL MOUNT OUTLET (UK1-13R), BS 1363A TYPE G SOCKET, SHUTTERED CONTACTS, BACK WIRED. RED.
Notes:
* Face Dia. = 50mm.
* Applications include general use and “dedicated circuits” in commercial, industrial, hospital or medical installations.

72130

UK, BRITISH, UNITED KINGDOM PLUG (UK1-13P), 13A-250V, BS 1363A TYPE G PLUG, IP20, REWIREABLE DOWN ANGLE PLUG, 13 AMPERE FUSED, MAX. CORD O.D. = 0.335" (8.5mm). WHITE.

72130-BLK

UK, BRITISH, UNITED KINGDOM PLUG (UK1-13P), 13A-250V, BS 1363A TYPE G PLUG, IP20, REWIREABLE DOWN ANGLE PLUG, 13 AMPERE FUSED, MAX. CORD O.D. = 0.335" (8.5mm). BLACK.

72135

UK, BRITISH, UNITED KINGDOM PLUG (UK1-13P), 13A-250V, BS 1363A TYPE G PLUG, 13 AMPERE FUSED, REWIREABLE DOWN ANGLE PLUG, MAX. CORD O.D. = 0.433" (11mm). WHITE.

72135-BLK

UK, BRITISH, UNITED KINGDOM PLUG (UK1-13P), 13A-250V, BS 1363A TYPE G PLUG, 13 AMPERE FUSED, REWIREABLE DOWN ANGLE PLUG, MAX. CORD O.D. = 0.433" (11mm). BLACK.

72135-CL

BRITISH, UNITED KINGDOM 13A-250V ANGLE PLUG, BS 1363A, TYPE G, (UK1-13P, (SEE-THROUGH DESIGN) REWIREABLE. CLEAR.
Notes:
* MAX. CORD O.D. = 0.433" (11mm).

72140

BRITISH, UK, 13A-250V IMPACT RESISTANT ANGLE PLUG, (UK1-13P), BS 1363A TYPE G, 13 AMPERE FUSED, REWIREABLE, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE. MAX. CORD O.D. = 0.433" (11mm).

72140-RED

BRITISH, UK, 13 AMPERE-250 VOLT IMPACT RESISTANT ANGLE PLUG, (UK1-13P), BS 1363A TYPE G, 13 AMPERE FUSED, REWIREABLE, 2 POLE-3 WIRE GROUNDING (2P+E). RED. MAX. CORD O.D. = 0.433" (11mm).
Notes:
* Applications include General Use and “Dedicated Circuits” in Commercial, Industrial, Hospital or Medical Installations.
* Clear "See-Through" plug # 72135-CL Available.

72140-RED-H

BRITISH UK "HOSPITAL PROPERTY" IMPACT RESISTANT ANGLE PLUG, 13A-250V, TYPE G BS1363A (UK1-13P), 13 AMPERE FUSED, REWIREABLE, 2 POLE-3 WIRE GROUNDING (2P+E). RED. Max. cord O.D. = 0.433" (11mm).
Notes:
* Applications include general use and “dedicated circuits” in commercial, industrial, hospital or medical installations.
* Clear "see-through" plug #72135-CL available.

72140-SPP

UK, BRITISH, UNITED KINGDOM PLUG, 13 AMPERE-250 VOLT, 50/60HZ, SURGE PROTECTED (UK1-13P, TYPE 3 SPD), BS 1363 TYPE G PLUG, 13 AMP FUSED, REWIREABLE ANGLE PLUG, NEON "RED" COLOR CIRCUIT INDICATOR. WHITE. MAX. CORD O.D. = 0.370" (9.4mm).

72141

BRITISH, UK, 13A-250V IMPACT RESISTANT ANGLE PLUG, (UK1-13P), BS 1363A TYPE G, 13 AMPERE FUSED, REWIREABLE, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK. MAX. CORD O.D. = 0.433" (11mm).

72141-AD

AUDIO-HIFI BRITISH UK PLUG (UK1-13P), 13A-250V, BS 1363A TYPE G PLUG, IMPACT RESISTANT, 13 AMP. FUSE, REWIREABLE DOWN ANGLE PLUG, TERMINALS ACCEPT 14/3, 16/3, 18/3 AWG. CONDUCTORS, MAX. CORD O.D. = 11mm (0.433") DIA., BLACK.

72145

SAUDI ARABIA / GULF STATES PLUG, 13 AMPERE-250 VOLT, BS 1363A TYPE G PLUG (UK1-13P)(SA1-13P), REWIREABLE PLUG, MAX. CORD O.D. = 0.433" (11mm). WHITE.
GULF STATES ("G" MARK) APPROVED.

72145-BLK

SAUDI ARABIA / GULF STATES PLUG, 13 AMPERE-250 VOLT, BS 1363A TYPE G PLUG (UK1-13P)(SA1-13P), FUSED 13 AMP, REWIREABLE PLUG, MAX. CORD O.D. = 0.433" (11mm). BLACK.
GULF STATES ("G" MARK) APPROVED.

72150-AN

UK, BRITISH, SAUDI-ARABIA, GULF STATES PLUG, 13A-250V,IMPACT RESISTANT (UK1-13P), BS 1363A, SS 145A, MS 589-1 TYPE G PLUG, 13 AMP FUSE (BS 1362, SS 167), REWIREABLE RUBBER ANGLE PLUG. BLACK.
ASTA, GULF STATES ("G" MARK) APPROVED.
Notes:
* Max. Cord O.D. = 0.433" (11mm).

72150-AN-ORG

UK, BRITISH, SAUDI-ARABIA, GULF STATES PLUG, 13A-250V, IMPACT RESISTANT (UK1-13P), BS 1363A, SS 145A, MS 589-1 TYPE G PLUG, 13 AMPERE FUSE (BS 1362, SS 167), REWIREABLE RUBBER ANGLE PLUG. ORANGE.
ASTA, GULF STATES ("G" MARK) APPROVED.
Notes:
* Max. Cord O.D. = 0.433" (11mm).

72150-SN

UNITED KINGDOM, BRITISH PLUG, 13 AMPERE-250 VOLT, (UK1-13P), BS 1363A TYPE G PLUG, REWIREABLE STRAIGHT PLUG, HARD DUTY "IMPACT RESISTANT" PLUG, CLAMP TYPE MULTI-CONDUCTOR TERMINALS, STRAIN RELIEF (CORD GRIP) ACCEPTS 0.236-0.787" (6.0-20.0mm) O.D. CABLES, WIRING TERMINALS ACCEPT 14, 12, 10 AWG SIZE CONDUCTORS. BLACK.

72160

UK, BRITISH, UNITED KINGDOM CONNECTOR, 13 AMPERE-250 VOLT REWIREABLE IN-LINE CONNECTOR, BS 1363A TYPE G (UK1-13R), SHUTTERED CONTACTS, MAX. CORD O.D. = 0.393" (10mm). WHITE.
* BRITISH UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.

72160-BLK

UK, BRITISH, UNITED KINGDOM CONNECTOR, 13 AMPERE-250 VOLT REWIREABLE IN-LINE CONNECTOR, BS 1363A TYPE G (UK1-13R), SHUTTERED CONTACTS, MAX. CORD O.D. = 0.393" (10mm). BLACK.
Notes:
* UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.

72160-D

UK, BRITISH, UNITED KINGDOM CONNECTOR, 13 AMPERE-250 VOLT REWIREABLE IN-LINE DUPLEX CONNECTOR, BS 1363A TYPE G (UK1-13R), SHUTTERED CONTACTS, MAX. CORD O.D. = 10mm (0.393") DIA., WHITE.
* BRITISH UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.

72160-DBLK

UK, BRITISH, UNITED KINGDOM CONNECTOR, 13 AMPERE-250 VOLT REWIREABLE IN-LINE DUPLEX CONNECTOR, BS 1363A TYPE G (UK1-13R), SHUTTERED CONTACTS, MAX. CORD O.D. = 10mm (0.393") DIA., BLACK.
* BRITISH UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.

72160-ORG

UK, BRITISH, UNITED KINGDOM CONNECTOR, 13 AMPERE-250 VOLT REWIREABLE IN-LINE CONNECTOR, BS 1363A TYPE G (UK1-13R), SHUTTERED CONTACTS, MAX. CORD O.D. = 0.393" (10mm). ORANGE.
* BRITISH UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.

72160-UV

UNIVERSAL CONNECTOR, MULTI-CONFIGURATION 20 AMPERE-250 VOLT STRAIGHT REWIREABLE IN-LINE CONNECTOR , SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Connector accepts European ** , British, BS 1363 Australia, American NEMA, Denmark, Swiss, China, Japan, Israel, Brazil, Argentina, South America, Asia, Thailand Plugs & South Africa / India Type D Plugs. View dimensional data for details.
* Use # 74900-SGA Add on adapter for (2P+E)[Earth] connection when European Type E, F Schuko CEE 7/4, CEE 7/7 plugs are used with # 72160-UV connector. Option: # 30140-BLK British, UK plug adapter.
* # 72160-UV Accepts American 125V & 250V NEMA Plugs 5-15P, 5-20P, 6-15P, 6-20P Types A, B, C, D, G, H, I, J, K, L, N, O.
* BRITISH UK Extension Cords, Type G, Weatherproof IP44, GFCI/RCD versions. View: UK-Extension-Cords.
* European, Schuko Extension Cords, Type E, F, Weatherproof IP44, GFCI/RCD versions. View: European-Extension-Cords.

72215

BRITISH, UNITED KINGDOM 13 AMPERE-250 VOLT OUTLET (86mmX86mm Size) (UK1-13R), BS 1363 TYPE G SOCKET, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

72220

BRITISH, UNITED KINGDOM 13A-250V OUTLET (86mmX86mm Size), BS 1363 TYPE G SOCKET (UK1-13R), ON/OFF SINGLE POLE SWITCH, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

72220-DP

BRITISH, UNITED KINGDOM 13A-250V OUTLET (86mmX86mm Size), BS 1363 TYPE G SOCKET (UK1-13R), ON/OFF DOUBLE POLE SWITCH, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

72220-DP-RED

BRITISH, UNITED KINGDOM 13A-250V OUTLET (86mmX86mm Size), BS 1363 TYPE G SOCKET (UK1-13R), ON/OFF DOUBLE POLE SWITCH, SHUTTERED CONTACTS. DARK RED.
Notes:
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

72220-UNV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION, 13A-250V OUTLET (86mmX86mm Size), SINGLE POLE ON/OFF SWITCH, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED wall box series.
* Weatherproof cover available # 74790-A (IP55 rated). Cover accepts & closes over (down angle) type plugs (Not all plug variations).
* Weatherproof box / enclosure available # 74790-B1 (IP66 rated). Cover closes & locks over (down angle) type plugs (Not all plug variations).

72316

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET (86mmX146mm SIZE), (UK1-13R) BS 1363, TYPE G, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72316-RED

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET [86mmX146mm Size], [UK1-13R], BS 1363 TYPE G SOCKETS, SHUTTERED CONTACTS. RED.
Notes:
* Weatherproof enclosure, #74790-B2 (IP66 rated), weatherproof cover #74790-DX (IP54 rated).
* Applications include general use and “dedicated circuits” in commercial, industrial, hospital or medical installations.

72320

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET (86mmX146mm SIZE), (UK1-13R), BS 1363 TYPE G SOCKETS, SINGLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72320-2USB

UK, BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET WITH TWO USB-A PORTS, (86mmX146mm Size), BS 1363 TYPE G SOCKETS (UK1-13R), SINGLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72320-2USB-U

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13A-250V DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), (86mmX146mm Size), TWO USB-A PORTS, LED INDICATORS, SINGLE POLE SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D wall box series.
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available # 74790-B2 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

72320-2USB-U-C

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13 AMPERE-250 VOLT DUPLEX OUTLET WITH USB PORTS, ONE TYPE A USB (USB-A) PORT, ONE TYPE C USB (USB-C) PORT, BS 1363 TYPE G (UK1-13R), (86mmX146mm Size), SINGLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS, 50/60HZ, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D wall box series.
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available # 74790-B2 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

72320-DP

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET (86mmX146mm Size), (UK1-13R), BS 1363A TYPE G SOCKETS, DOUBLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72320-DP-RED

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET (86mmX146mm Size), (UK1-13R), BS 1363A TYPE G SOCKETS, DOUBLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.
* Dark Red Color.
* Applications include General Use and “Dedicated Circuits” in commercial, industrial, hospital or medical installations.

72320-RED

UK, BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET [86mmX146mm Size], [UK1-13R] BS 1363 TYPE G SOCKETS, DOUBLE POLE ON / OFF SWITCHES, SHUTTERED CONTACTS. RED.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.
* Applications include general use and “dedicated circuits” in commercial, industrial, hospital or medical installations.

72320-RED-CE

BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET [86mmX146mm Size], [UK1-13R], BS 1363 TYPE G SOCKETS, DOUBLE POLE ON/OFF SWITCHES CONTROL OUTLETS, SHUTTERED CONTACTS, ISOLATED GROUND [CLEAN EARTH]. RED.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72320-SPD

BRITISH, UNITED KINGDOM 13A-250, 50/60HZ, SURGE PROTECTED DUPLEX OUTLET [86mmX146mm Size], (UK1-13R, TYPE 3 SPD), BS 1363 / BS 5733, TYPE G SOCKETS, SINGLE POLE ON/OFF SWITCHES CONTROL OUTLETS, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72320-UNV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION, 13A-250V DUPLEX OUTLET (86mmX146mm Size), BS 1363 TYPE G (UK1-13R), SINGLE POLE SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D wall box series.
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available # 74790-B2 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

72320-USB-A-C

UK, BRITISH, UNITED KINGDOM 13A-240V DUPLEX OUTLET WITH TWO USB PORTS, ONE TYPE A USB-A PORT, ONE TYPE C USB-C PORT, BS 1363 TYPE G (UK1-13R), (86mmX146mm Size), SINGLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS, 50/60HZ, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

72403

BRITISH, UK, UNITED KINGDOM 3 AMPERE-250 VOLT BS 1362 FUSE FOR BRITISH BS 1363A PLUGS, POWER CORDS.

72405

BRITISH, UK, UNITED KINGDOM 5 AMPERE-250 VOLT BS 1362 FUSE FOR BS 1363A PLUGS, POWER CORDS.

72410

BRITISH, UK, UNITED KINGDOM 10 AMPERE-250 VOLT BS 1362 FUSE FOR BS 1363A PLUGS, POWER CORDS.

72413

BRITISH, UK, UNITED KINGDOM 13 AMPERE-250 VOLT BS 1362 FUSE FOR BS 1363A PLUGS, POWER CORDS.

72450

EUROPEAN, INTERNATIONAL SHAVER OUTLET (86mmX146mm Size). SHAVERS ONLY DEVICE WITH DUAL OUTPUT VOLTAGE, 50 / 60 HZ, IP41 RATED. WHITE.

* OUTPUT VOLTAGES: 115 VAC 20VA / 240 VAC 20VA.
* INPUT VOLTAGE: EUROPEAN 220-240 VAC.
Notes:
* Weatherproof enclosure, #74790-B2 [IP66 rated], weatherproof cover #74790-DX [IP54 rated].
* Minimum box depth required 47mm. Option box #72355X47D

72495

UK, BRITISH, UNITED KINGDOM 13A-250V PANEL MOUNT OUTLET (UK1-13R), BS 1363A TYPE G SOCKET, SHUTTERED CONTACTS. BLACK.

72495-W

UK, BRITISH, UNITED KINGDOM 13A-250V PANEL MOUNT OUTLET (UK1-13R), BS 1363A TYPE G SOCKET, SHUTTERED CONTACTS. WHITE.

730066

BRITISH, UNITED KINGDOM, SAUDI ARABIA, GULF STATES "G MARK" APPROVED 13A-250V OUTLET (UK1-13R) (86mmX86mm Size), BS 1363 TYPE G SOCKET, ON/OFF SINGLE POLE SWITCH, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

73100x45

SOUTH AFRICA 15 AMPERE-250 VOLT POWER OUTLET, 67.5mmX45mm MODULAR SIZE, TYPE M SANS 164-1, BS 546, (UK2-15R), SHUTTERED CONTACTS, ON/OFF SWITCH, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Mounts on South Africa / American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on South Africa / American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

73105x45

SOUTH AFRICA 16 AMPERE-250 VOLT TYPE M SANS 164-1, BS 546, (UK2-15R) OUTLET, 5/6 AMPERE-250 VOLT TYPE D [UK3-5R] OUTLET, SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
BIS approved @ 16A-250V, 5/6A-250V. Factory tested @ 25A-250V.

Notes:
* Outlet accepts South Africa 16A-250V Type M, 6A-250V Type D, 25A-250V Type M plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

73105X45-BLK

SOUTH AFRICA 16 AMPERE-250 VOLT TYPE M SANS 164-1, BS 546, [UK2-15R] OUTLET, 5/6 AMPERE-250 VOLT TYPE D [UK3-5R] OUTLET, SHUTTERED CONTACTS, 45mmX45mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING [2P+E]. BLACK [MAGNESIUM COLOR].
BIS approved @ 16A-250V, 5/6A-250V. Factory tested @ 25A-250V.

Notes:
* Outlet accepts South Africa 16A-250V Type M, 6A-250V Type D, 25A-250V Type M plugs.
* Mounts on American 2X4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame #79210X45-N & #79215X45-N wall plate (White).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame #79100X45. DIN rail mount Frame 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

73110

SOUTH AFRICA 15 AMPERE-250 VOLT OUTLET (86mmX86mm SIZE), TYPE M SANS 164-1, BS 546, (UK2-15R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
*Panel Mount, Flush mount, Surface Mount.
* European / International wall boxes = Use # 72350X47D, # 72350X35D, # 72350-F, # 72360 series.
* Weatherproof Enclosure / Covers = # 74790-B1 (IP66 rated), # 74790-A (IP55 rated), # 74790 (IP13 rated).
* Accepts South Africa type M 15A/16A- 250 Volt plugs.

73110-S

SOUTH AFRICA 15A-250V OUTLET (86mmX86mm SIZE), TYPE M SANS 164-1, BS 546, (UK2-15R), SHUTTERED CONTACTS, SINGLE POLE ON/OFF SWITCH. WHITE.
Notes:
*Panel Mount, Flush mount, Surface Mount.
* European / International wall boxes = Use # 72350X47D, # 72350X35D, # 72350-F, # 72360 series.
* Weatherproof Enclosure / Covers = # 74790-B1 (IP66 rated), # 74790-A (IP55 rated), # 74790 (IP13 rated).
* Accepts South Africa type M 15A/16A- 250 Volt plugs.

73110X45

SOUTH AFRICA 16A-250V OUTLET, TYPE M SANS 164-1, BS 546, (UK2-15R), 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS. WHITE.
Notes:
* Accepts South Africa type M 15A/16A- 250 Volt plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

73130

SOUTH AFRICA PLUG, 15A-250V TYPE M PLUG, SANS 164-1, BS 546, (UK2-15P) REWIREABLE PLUG. WHITE.
Notes:
* Type M plugs connects with South Africa 15A/16A-250V outlets.

73130-BLK

SOUTH AFRICA PLUG, 15A-250V TYPE M PLUG, SANS 164-1, BS 546, (UK2-15P), REWIREABLE PLUG. BLACK.
Notes:
* Type M plugs connects with South Africa 15A/16A-250V outlets.

73160

SOUTH AFRICA, UNITED KINGDOM CONNECTOR, 15A-250V REWIREABLE CONNECTOR, TYPE M (UK2-15R), SHUTTERED CONTACTS. BLACK.
Notes:
* Safety & Compliance Tested (DEKRA Accredited Lab)

73160-GW

SOUTH AFRICA CONNECTOR, 15A-250V IS 1293:2005 TYPE M [UK2-15R] AND 5/6A-250V TYPE D (UK3-5R) REWIREABLE CONNECTOR, SHUTTERED CONTACTS, ENCLOSURE, GLAND CABLE ENTRY, 2 POLE-3 WIRE GROUNDING (2P+E). MAX. CORD O.D. = 0.472". GRAY.
Notes:
* Accepts South Africa 15A-250V TYPE M , 5A/6A-250V TYPE D plugs.
* Application options = In-line connector, panel mount, or surface wall mount.

73160-WP

SOUTH AFRICA CONNECTOR, 15A-250V IS 1293:2005 TYPE M [UK2-15R] AND 5/6A-250V TYPE D [UK3-5R] REWIREABLE IN-LINE CONNECTOR, SHUTTERED CONTACTS, WEATHERPROOF ENCLOSURE, IP55 RATED [COVER CLOSED], TRANSPARENT LIFT LID, GLAND CABLE ENTRY, 2 POLE-3 WIRE GROUNDING [2P+E]. MAX. CORD O.D. = 0.472". GRAY.
Notes:
* Accepts South Africa 15A-250V TYPE M , 5A/6A-250V TYPE D plugs.
* Application options = In-line connector, panel mount, or surface wall mount.

73210

SOUTH AFRICA 15 AMPERE-250 VOLT PANEL MOUNT OUTLET, TYPE M , BS 546, SANS 164-1, (UK2-15R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
*Panel Mount.
* Accepts South Africa type M 15A/16A- 250 Volt plugs.

73210-BLK

SOUTH AFRICA 15A-250V PANEL MOUNT OUTLET, TYPE M , BS 546, SANS 164-1, (UK2-15R), SHUTTERED CONTACTS. BLACK.
Notes:
*Panel Mount.
* Accepts South Africa type M 15A/16A- 250 Volt plugs.

73310

SOUTH AFRICA 5A/6A-250 VOLT POWER OUTLET, TYPE D SANS 164-3, BS 546 (UK3-5P), SHUTTERED CONTACTS, (86mmX86mm Size), 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
*Panel Mount, Flush mount, Surface Mount.
* European / International wall boxes = Use # 72350X47D, # 72350X35D, # 72350-F, # 72360 series.
* Weatherproof Enclosure / Covers = # 74790-B1 (IP66 rated), # 74790-A (IP55 rated), # 74790 (IP13 rated).
* Accepts type D South Africa 5A/6A-250 volt plugs.

73310x45

SOUTH AFRICA 5A/6A-250V OUTLET, 45mmX45mm MODULAR SIZE, TYPE D SOCKET, SANS 164-3, BS 546 (UK3-5R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts South Africa 5/6A-250V Type D plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

73330

SOUTH AFRICA PLUG, 5A/6A-250V, TYPE D PLUG, SANS 164-3, BS 546 (UK3-5P), REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Type D plugs connect with South Africa 5A/6A- 250 volt outlets.

73330-BLK

SOUTH AFRICA PLUG, 5A/6A-250V, TYPE D PLUG, SANS 164-3, BS 546 (UK3-5P), REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Type D plugs connect with South Africa 5A/6A- 250 volt outlets.

73360-GW

SOUTH AFRICA CONNECTOR, 5A-250V TYPE D (UK3-5R) REWIREABLE CONNECTOR, SHUTTERED CONTACTS, ENCLOSURE, GLAND CABLE ENTRY, 2 POLE-3 WIRE GROUNDING (2P+E). MAX. CORD O.D. = 0.472". GRAY.
Notes:
* Accepts South Africa 5A-250V TYPE D plugs.
* Application options = In-line connector, panel mount, or surface wall mount.

73400

SOUTH AFRICA 16A-250V DUPLEX OUTLET, ZA, SANS 164-2 TYPE N (SA1-16R), SHUTTERED CONTACTS, SCREW TERMINALS. WHITE. SABS APPROVED.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa Standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

73400-DX

SOUTH AFRICA ZA DUPLEX OUTLET, 16A-250V, SANS 164-2 (SA1-16R) TYPE N SOCKET, 16A-250V SANS 164-1 TYPE M (SA2-16R) SOCKET, SHUTTERED CONTACTS. WHITE. SABS APPROVED.
Notes:
* Mounts on American / South Africa 2x4 wall boxes.
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa Standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

73401

SOUTH AFRICA ZA 16A-250V MODULAR OUTLET (25mmX50mm SIZE), SANS 164-2 TYPE N (SA1-16R), SHUTTERED CONTACTS, SCREW TERMINALS. WHITE. SABS APPROVED.
Notes:
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one outlet complying with South Africa Standard SANS 164-2. Outlet accepts South Africa SANS 164-2 type N (3 pin), SANS 164-5 (2 pin) plugs and type C (2 pin) "Europlugs".

73403

SOUTH AFRICA 16A-250V MODULAR OUTLET (50mmX50mm SIZE), SANS 164-1 TYPE M (SA2-16R), SHUTTERED CONTACTS, SCREW TERMINALS. WHITE. SABS APPROVED.
Notes:
*#73403 is the standard 16A-250V South Africa power outlet, Accepts South Africa plug #73450-BLK, SANS 164-1 lugs, all SANS 164-4 "dedicated" circuit plugs.

73404

SOUTH AFRICA 15/16A-250V "DEDICATED CIRCUIT" MODULAR OUTLET (50mmX50mm SIZE), SANS 164-4 TYPE M (SA3-16R), SHUTTERED CONTACTS, SCREW TERMINALS. RED. SABS APPROVED.
Notes:
* Red color "dedicated" outlets are designed for specific electrical circuit applications, i.e., Safe, Local Network, Independent of Standard power supply, Clean earth wiring system.
*Outlet accepts only South Africa red color SANS 164-4 "dedicated" plugs. Plug #73460-RED.

73405

SOUTH AFRICA 15/16A-250V "DEDICATED CIRCUIT" MODULAR OUTLET (50mmX50mm SIZE), SANS 164-4 TYPE M (SA4-16R), SHUTTERED CONTACTS, SCREW TERMINALS. BLUE. SABS APPROVED.
Notes:
* Blue color "dedicated" outlets are designed for specific electrical circuit applications, i.e., Local Network with uninterrupted power supply.
* Outlet accepts only South Africa blue color SANS 164-4 "dedicated" plugs. Plug #73460-BLU.

73406

SOUTH AFRICA 15/16A-250V"DEDICATED CIRCUIT" MODULAR OUTLET (50mmX50mm SIZE), SANS 164-4 TYPE M (SA5-16R), SHUTTERED CONTACTS, SCREW TERMINALS. BLACK. SABS APPROVED.
Notes:
* Black color "dedicated" outlets are designed for specific electrical circuit applications, i.e., Isolated power supply with clean system earth, and/or circuit that runs through a 1:1 isolating transformer.
* Outlet accepts only South Africa black color SANS 164-4 "dedicated" plugs. Plug #73460-BLK.

73407

SOUTH AFRICA EUROPEAN SCHUKO 16 AMPERE-250 VOLT MODULAR OUTLET, CEE 7/3 TYPE F SANS 164-6 (SA6-16R), 50mmX50mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E), SCREWLESS TERMINALS. WHITE.
Notes:
* Outlet accepts standard European Schuko and Euro type plugs #70141, 70139-NB.

73408

SOUTH AFRICA 10A-220/250V MULTI-CONFIGURATION (BRITISH, EUROPEAN, AUSTRALIA, CHINA, INDIA, S. AFRICA) MODULAR OUTLET SANS 164-6 (SA7-10), 50mmX50mm SIZE, SHUTTERED CONTACTS, SCREW TERMINALS. WHITE. SABS APPROVAL.
Notes:
* Outlet accepts British (13A) Australia, China, Argentina (10A) 3 pin, India, S. Africa (5A-6A) 3 pin, European (16A-10A) 2 pin plugs.

73425

SOUTH AFRICA ZA PLUG, 16 AMPERE-250 VOLT, SANS 164-2, TYPE N (SA1-16P), REWIREABLE STRAIGHT PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one socket - outlet complying with SABS South Africa Standard SANS 164-2.

73425-BLK

SOUTH AFRICA ZA PLUG, 16 AMPERE-250 VOLT, SANS 164-2, TYPE N (SA1-16P), REWIREABLE STRAIGHT PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one socket - outlet complying with SABS South Africa Standard SANS 164-2.

73430

SOUTH AFRICA ZA PLUG, 16 AMPERE-250 VOLT, SANS 164-2, TYPE N (SA1-16P), REWIREABLE ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one socket - outlet complying with SABS South Africa Standard SANS 164-2.

73430-BLK

SOUTH AFRICA ZA PLUG, 16 AMPERE-250 VOLT, SANS 164-2, TYPE N (SA1-16P), REWIREABLE ANGLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Effective January 2018 all new South Africa electrical installations shall include a minimum of one socket - outlet complying with SABS South Africa Standard SANS 164-2.

73435-BLK

SOUTH AFRICA ZA CONNECTOR, 16A-250V SANS 16-2 (SA1-16R), BRAZIL 20A-250V NBR 14136 (BR3-20R) REWIREABLE IN-LINE CONNECTOR, TYPE N , CORD GRIP = 0.275-0.450" DIA., NYLON. BLACK.
*South Africa ZA 16A-250V Type N connectors / sockets & Brazil 10A/20A-250V Type N connectors / sockets have similar socket / outlet configurations.

73450-BLK

SOUTH AFRICA PLUG, 15/16 AMPERE-250 VOLT, TYPE M SANS 164-1, BS 546 (UK2-15P), IP 20, REWIREABLE PLUG, O.D. CORD GRIP = 11mm (0.433") DIA., 2 POLE-3 WIRE GROUNDING (2P+E), BLACK.
Notes:
** SABS Approved. (South Africa Bureau of Standards)
* Type M plugs mate with SANS 164-1 South Africa 15/16A-250V power outlets.

73450-WHT

SOUTH AFRICA PLUG, 15/16 AMPERE-250 VOLT, TYPE M SANS 164-1, BS 546 (UK2-15P), IP 20, REWIREABLE PLUG, O.D. CORD GRIP = 11mm (0.433") DIA., 2 POLE-3 WIRE GROUNDING (2P+E), WHITE.
Notes:
** SABS Approved. (South Africa Bureau of Standards)
* Type M plugs mate with SANS 164-1 South Africa 15/16A-250V power outlets.

73460-BLK

SOUTH AFRICA PLUG, 15/16 AMPERE-250 VOLT, TYPE M PLUG, SANS 164-4 (SA5-16P), REWIREABLE DEDICATED CIRCUIT PLUG, O.D. CORD GRIP = 9.5mm (0.374") DIA., BLACK. SABS APPROVED.
Notes:
* #73460-BLK "dedicated" plug connects with #73406 BLACK color "dedicated" outlets and standard South Africa 16A-250V SANS 164-1 type M outlets.

73460-BLU

SOUTH AFRICA PLUG, 15/16 AMPERE-250 VOLT, TYPE M PLUG, SANS 164-4 (SA4-16P), REWIREABLE DEDICATED CIRCUIT PLUG, O.D. CORD GRIP = 9.5mm (0.374") DIA., BLUE. SABS APPROVED.
Notes:
* #73460-BLU "dedicated" plug connects with #73405 blue color "dedicated" outlets and standard South Africa 16A-250V SANS 164-1 type M outlets. Plug will not connect with South Africa red color or black color "dedicated" outlets.

73460-RED

SOUTH AFRICA PLUG, 15/16 AMPERE-250 VOLT, TYPE M PLUG, SANS 164-4 (SA3-16P), REWIREABLE DEDICATED CIRCUIT PLUG, O.D. CORD GRIP = 9.5mm (0.374") DIA., RED. SABS APPROVED.
Notes:
* #73460-RED "dedicated" plug connects with #73404 red color "dedicated" outlets and standard South Africa 16A-250V SANS 164-1 type M outlets. Plug will not connect with South Africa blue color or black color "dedicated" outlets.

73550

SOUTH AFRICA 15 AMPERE-250 VOLT OUTLET, TYPE M , BS 546, SANS 164-1, (UK2-15R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E), WHITE.
Notes:
Mounts on South Africa / American 2X4 Wall Boxes or Panel Mount. Face Diameter = 44.6mm (1.756").
* Use # 73570-SS Wall plate or Weatherproof cover # 79411 when flush mounting on South Africa / American 2x4 wall boxes.
* Surface mounts on American wall boxes # 79420, # 79425 & # 84225-AR box.

73551-US

AMERICAN 15A-125V NEMA 5-15R OUTLET, TYPE A, TYPE B, IP20, 86mmX86mm SIZE. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View # 72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series.
* Weatherproof cover available, IP55 rated # 74790-A.
* Weatherproof enclosure available # 74790X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73552-US

AMERICAN 15A-125V NEMA 5-15R DUPLEX OUTLET, TYPE A, TYPE B, 86mmX146mm Size. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D box.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73553-MCS

THAILAND, ASIA, SOUTH AMERICA, AMERICAN, EUROPEAN, MULTI-CONFIGURATION POWER OUTLET, 16 AMPERE-250 VOLT / 15 AMPERE-127 VOLT, TYPE A, B, C, O, THAILAND TIS 2532-2555 (2P+E), SHUTTERED CONTACTS, 86mmX86mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series.
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .

73554-MCD

THAILAND, ASIA, SOUTH AMERICA, AMERICAN, EUROPEAN, MULTI-CONFIGURATION DUPLEX POWER OUTLET, 16 AMPERE-250 VOLT / 15 AMPERE-127 VOLT, TYPE A, B, C, O, THAILAND TIS 2532-2555 (2P+E), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE- 3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D box.
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .

73555-UV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13A-250V OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series. Not for use with #77190 wall box.
* Weatherproof cover available, IP55 rated #74790-A.
* Weatherproof enclosure available #74790X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73555-UV-B

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 77190, 72360, 72360-RED wall box series.
* Weatherproof covers available, IP55 rated # 74790-A, # 74790.
* Weatherproof enclosures available # 74790-B1, (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73555-UV-W

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 77190, 72360, 72360-RED wall box series.
* Weatherproof covers available, IP55 rated # 74790-A, # 74790.
* Weatherproof enclosures available # 74790-B1, (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73556-UV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13A-250V DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D wall box.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73556-UV-B

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73556-UV-W

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

74100

Special order item. Contact sales office.
AUSTRALIA / NEW ZEALAND 10 AMPERE-250 VOLT TYPE I (AU1-10R), AS/NZS 3112 OUTLET, PANEL MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
* Outlet accepts 10 Ampere Australia / New Zealand plugs.
* Panel Mount Snap-In version Available . View 74105X45-NS * Requires Snap-In Mounting Frame . View 79100X45

74105x45

AUSTRALIA, NEW ZEALAND 10A-240V TYPE I OUTLET AS/NZS 4417, AS/NZS 3112 (AU1-10R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74105X45-BLK

AUSTRALIA, NEW ZEALAND 10A-240V TYPE I OUTLET AS/NZS 4417, AS/NZS 3112 (AU1-10R), 45mmX45mm MODULAR SIZE. BLACK (MAGNESIUM COLOR).
Notes:
* Mounts on American 2X4 wall boxes, requires frame 79120X45-N & wall plate 79130X45-BLK (WPs offered SS, Alum, & White).
* Mounts on American 4X4 wall boxes, requires frame 79210X45-N & wall plate 79220X45-BLK (WPs offered SS & White).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74105X45-BLK-NS

AUSTRALIA, NEW ZEALAND 10A-240V TYPE I OUTLET AS/NZS 4417, AS/NZS 3112 (AU1-10R), 45mmX45mm MODULAR SIZE. BLACK.
Notes:
* Mounts on American 2X4 wall boxes, requires frame 79120X45-N & wall plate 79130X45-BLK (WPs offered SS, Alum, & White).
* Mounts on American 4X4 wall boxes, requires frame 79210X45-N & wall plate 79220X45-BLK (WPs offered SS & White).
** Wall plates 79130X45-BLK, 79220X45-BLK are Magnesium color and receptacle 74105X45-BLK-NS is a true all Black color.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74105X45-NS

AUSTRALIA, NEW ZEALAND 10A-240V TYPE I OUTLET AS/NZS 4417, AS/NZS 3112 (AU1-10R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74130

AUSTRALIA / NEW ZEALAND PLUG, 10A-250V TYPE I PLUG (AU1-10P), REWIREABLE ANGLE PLUG. WHITE.
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74131

AUSTRALIA / NEW ZEALAND PLUG, 10A-250V TYPE I PLUG (AU1-10P), REWIREABLE ANGLE PLUG. CLEAR (TRANSPARENT).
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74140

AUSTRALIA,NEW ZEALAND 10A-240V PLUG, TYPE I, AS/NZS 4417 (RCM), AS/NZS 3112, (AU1-10P), IP2X RATED, REWIREABLE. WHITE.
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74140-BLK

AUSTRALIA,NEW ZEALAND 10A-240V PLUG, TYPE I, AS/NZS 4417 (RCM), AS/NZS 3112, (AU1-10P), IP2X RATED, REWIREABLE. BLACK. <
Notes:
* 10 Ampere Australian Plugs connect with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74140-BLK10

AUSTRALIA, NEW ZEALAND PLUG, 10A-240V TYPE I PLUG, AS/NZS 4417 (RCM), AS/NZS 3112, (AU1-10P, REWIREABLE POWER PLUG. BLACK.
Notes:
* Plug mates with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74140-GRY10

AUSTRALIA, NEW ZEALAND PLUG, 10A-250V TYPE I PLUG, AS/NZS 4417 (RCM) AS/NZS 3112, (AU1-10P), REWIREABLE POWER PLUG. GRAY.
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74140-K

AUSTRALIA, NEW ZEALAND PLUG, 10A-250V TYPE I PLUG, AS/NZS 3112, (AU1-10P), IP20 RATED, REWIREABLE PLUG, IMPACT RESISTANT NYLON, O.D. CORD GRIP = 9.5mm (0.374") DIA., BLACK.
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74141

AUSTRALIA / NEW ZEALAND PLUG, 10A-250V TYPE I PLUG (AU1-10P), REWIREABLE POWER PLUG. CLEAR (TRANSPARENT).
Notes:
* Plug connects with 10 Ampere, 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74180

AUSTRALIA / NEW ZEALAND 10A-250V PANEL MOUNT POWER INLET (AU1-10P). BLACK.
Notes:
* Panel mount inlet accepts Australia, New Zealand 20A, 15A, 10A In-line connectors.

74210

AUSTRALIA / NEW ZEALAND 10A-250V TYPE I DUPLEX OUTLET, AS/NZS 3112 (AU1-10R), INTEGRAL WALL PLATE. WHITE.
* Mounts on Surface wall boxes # 84225-AR, # 74225 boxes.
* Weatherproof covers available. View# # 74900-MCS.
* Australia TUV approved building wire/cable available. #CNCP07AA002.

74215

AUSTRALIA / NEW ZEALAND 10A-250V TYPE I DUPLEX OUTLET (AU1-10R), SINGLE POLE ON/OFF SWITCHES, INTEGRAL WALL PLATE. WHITE.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Mounts on Surface wall boxes # 84225-AR, # 74225 boxes.
* Australia TUV approved building wire/cable available. #CNCP07AA002.

74215-2USB

AUSTRALIA / NEW ZEALAND 10A-250V 50HZ, TYPE I DUPLEX OUTLET WITH TWO USB-A PORTS AS/NZS 3112 (AU1-10R), SINGLE POLE ON/OFF SWITCHES, INTEGRAL WALL PLATE, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 39/32" (83mm / 84mm) mounting centers.
* Surface mounts on # 74225, # 84225-AR wall boxes or panel mount.
* Australia TUV approved building wire/cable #CNCP07AA002.

74215-DPS

AUSTRALIAN DUPLEX OUTLET TYPE I, 10 AMPERE-250 VOLT (AU1-10R). HORIZONTAL MOUNT, DOUBLE POLE ON/OFF SWITCHES, INTEGRAL WALL PLATE. WHITE.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 39/32" (83mm / 84mm) mounting centers.
* Surface mounts on # 74225, # 84225-AR wall boxes or panel mount.
* Australia TUV approved building wire/cable #CNCP07AA002.

74220

AUSTRALIA / NEW ZEALAND 10A-250V DUPLEX OUTLET TYPE I (AU1-10R), SINGLE POLE ON/OFF SWITCHES, INTEGRAL WALL PLATE. WHITE.
Notes:
* Vertical mount on American 2x4 wall boxes, surface mount on #84225-AR, #74225 wall boxes.
* Australia TUV approved building wire/cable #CNCP07AA002.

74500

Special order item. Contact sales office.
AUSTRALIA / NEW ZEALAND 15 AMPERE-250 VOLT TYPE I (AU2-15R), AS/NZS 3112 OUTLET, PANEL MOUNT, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
* Outlet accepts 10 & 15 Ampere Australia / New Zealand plugs.
* Panel Mount Snap-In version Available . View 74505X45-NS * Requires Snap-In Mounting Frame . View 79100X45

74505x45

AUSTRALIA, NEW ZEALAND 15A-250V TYPE I OUTLET AS/NZS 3112, AS/NZS 4417, (AU2-15R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Outlet accepts 10 Amp. and 15 Amp. Australian / New Zealand plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74505X45-BLK-NS

AUSTRALIA, NEW ZEALAND 15A-240V TYPE I OUTLET AS/NZS 3112, AS/NZS 4417, (AU2-15R), 45mmX45mm MODULAR SIZE. BLACK.
Notes:
* Outlet accepts 10 Amp. and 15 Amp. Australian / New Zealand plugs.
* Mounts on American 2X4 wall boxes, requires frame 79120X45-N & wall plate 79130X45-BLK (WPs offered SS, Alum, & White).
* Mounts on American 4X4 wall boxes, requires frame 79210X45-N & wall plate 79220X45-BLK (WPs offered SS & White).
** Wall plates 79130X45-BLK, 79220X45-BLK are Magnesium color and receptacle 74505X45-BLK-NS is a true all Black color.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74505X45-NS

AUSTRALIA, NEW ZEALAND 15A-240V TYPE I OUTLET AS/NZS 3112, AS/NZS 4417, (AU2-15R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Outlet accepts 10 Amp. and 15 Amp. Australian / New Zealand plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74510

Special order item. Contact sales office.
AUSTRALIA / NEW ZEALAND 15A-250V TYPE I OUTLET (AU2-15R) WALL BOX MOUNT. WHITE.
Notes:
* Vertical mount on American 2x4 wall boxes, surface mount on #84225-AR, #74225 wall boxes.
* Australia TUV Approved building wire/cable #CNCP07AA002.
* Outlet accepts 15 Amp, 10 Amp Australian, New Zealand plugs.

74515-DPS

AUSTRALIAN DUPLEX OUTLET, 15A-250V (AU2-15R). HORIZONTAL MOUNT, DOUBLE POLE ON/OFF SWITCHES, INTEGRAL WALL PLATE. WHITE.
Notes:
* Horizontal mount on American 2x4 wall boxes, surface mount on #84225-AR, #74225 wall boxes.
* Australia TUV approved building wire/cable #CNCP07AA002.
* Outlet accepts 15 Amp., 10 Amp. Australian, New Zealand plugs.

74530

AUSTRALIA / NEW ZEALAND PLUG (AU2-15P), 15A-250V, REWIREABLE ANGLE POWER PLUG. WHITE.
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74540

AUSTRALIA, NEW ZEALAND PLUG, 15A-250V, AS/NZS 4417 (RCM), AS/NZS 3112 (AU2-15P), REWIREABLE POWER PLUG. WHITE.
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74540-BLK

AUSTRALIA, NEW ZEALAND PLUG, 15A-250V AS/NZS 4417 (RCM), AS/NZS 3112, AS/NZS 3100, (AU2-15P), REWIREABLE POWER PLUG, MAX. CORD DIA. = 9mm (0.354"). BLACK.
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74540-GRY

AUSTRALIA, NEW ZEALAND PLUG, 15A-250V AS/NZS 4417 (RCM), AS/NZS 3112 (AU2-15P), REWIREABLE POWER PLUG. GRAY.
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, receptacles, connectors.

74540-WHT

AUSTRALIA, NEW ZEALAND PLUG, 15A-250V AS/NZS 4417 (RCM), AS/NZS 3112, AS/NZS 3100, (AU2-15P), REWIREABLE POWER PLUG, MAX. CORD DIA. = 9mm (0.354). WHITE.
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74541

AUSTRALIA / NEW ZEALAND PLUG, 15A-250V, (AU2-15P), REWIREABLE POWER PLUG. CLEAR (TRANSPARENT).
Notes:
* Plug connects with 15 Ampere, 20 Ampere Australian, New Zealand outlets, connectors.

74560-BLK

AUSTRALIA / NEW ZEALAND CONNECTOR, 15/10A-250V REWIREABLE IN-LINE POWER CONNECTOR (AU1-10R, AU2-15R). BLACK.
Notes:
* Connector accepts 15 Ampere, 10 Ampere Australian / New Zealand plugs.

74560-BLK10

AUSTRALIA / NEW ZEALAND CONNECTOR, 10A-250V REWIREABLE IN-LINE POWER CONNECTOR (AU1-10R). BLACK.
Notes:
* Connector accepts 10 Ampere Australian / New Zealand plugs.

74560-GRY

AUSTRALIA / NEW ZEALAND CONNECTOR, 15/10A-250V REWIREABLE IN-LINE POWER CONNECTOR (AU1-10R, AU2-15R). GRAY.
Notes:
* Connector accepts 15 Ampere, 10 Ampere Australian / New Zealand plugs.

74560-GRY10

AUSTRALIA / NEW ZEALAND CONNECTOR, 10A-250V REWIREABLE IN-LINE POWER CONNECTOR (AU1-10R). GRAY.
Notes:
* Connector accepts 10 Ampere Australian / New Zealand plugs.

74560-WHT

AUSTRALIA / NEW ZEALAND CONNECTOR, 15/10A-250V REWIREABLE IN-LINE POWER CONNECTOR (AU1-10R, AU2-15R). WHITE.
Notes:
* Connector accepts 15 Ampere, 10 Ampere Australian / New Zealand plugs.

74580-WP

AUSTRALIA / NEW ZEALAND 15A-250V PANEL MOUNT INLET (AU2-15P), WEATHERPROOF IP34. WHITE.
* For mobile equipment, RV, applications.
Notes:
* Panel mount inlet accepts Australia, New Zealand 20A, 15A, In-line connectors.
* For RV, camper, mobile home applications, Australia building wire available. # CNCP07AA002.

74600x45

CHINA 16A-250V OUTLET GB 1002, GB 2099 (CH2-16R), TYPE I, 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Outlet accepts only 16 Ampere (CH2-16P) type plugs.
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Panel Mount, European Wall Box Mount, use frame #730092X45 (Mounts 60mm on center) or # 730092X45 Duplex (Mounts 120mm on center).
* Surface Mount on European (60mm on center) wall boxes, use frame # 79250X45-N & wall plate # 79265X45-N.
* # 74600X45 cannot be used with # 79100X45, 69582LX45, 79575X45, 79595X45 mounting frames.
* Complete range of modular devices and mounting component options. Modular Devices Link

74615

CHINA 16 AMPERE-250 VOLT (CH2-16R) GB 2099.1 POWER OUTLET, TYPE I, (86mmX86mm Size), 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.View # 72350,72350-F,72360 wall boxes.
* Weatherproof panel mount outlet - Use covers # 74790, #74790-A, # 74790-B1.
* Outlet accepts 16 ampere (CH2-16P) China plugs only.

74630

CHINA PLUG, 16A-250V, TYPE I PLUG (CH2-16P), REWIREABLE ANGLE PLUG. WHITE.
Notes:
* Plug connects with China CH2-16R (16A-250V) outlets only.
* China 10 Ampere-250 Volt (CH1-10P) Plugs, Power Cords cords available. View # 74730

74630-BLK

CHINA PLUG, 16 AMPERE-250 VOLT, TYPE I PLUG (CH2-16P, REWIREABLE ANGLE PLUG. BLACK.
Notes:
* Plug connects with China CH2-16R (16A-250V) outlets only.
* China 10 Ampere-250 Volt (CH1-10P) Plugs, Power Cords cords available. View # 74730-BLK

74640-YL

CHINA PLUG, 16 AMPERE-250 VOLT, TYPE I PLUG, (CH2-16P), REWIREABLE STRAIGHT PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). YELLOW.
Notes:
* Plug connects with China CH2-16R (16A-250V) outlets only.
* China 10 Ampere-250 Volt (CH1-10P) Plugs, Power Cords cords available. View # 74740-YL

74660

CHINA CONNECTOR, 16A-250V TYPE I (CH2-16R)
REWIREABLE IN-LINE CONNECTOR WEATHERPROOF, IP55 RATED (COVER CLOSED), SHUTTERED CONTACTS. MAX. CORD O.D. = 12mm (0.472") DIA., GRAY.
Notes:
* Option = Wall mount, connector also designed for surface mount applications.

74700x45

CHINA 10A-250V OUTLET GB 1002, GB 2099 (CH1-10R), TYPE I, 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74705x45

CHINA 10A-250V OUTLET GB 2099, GB 1002 (CH1-10R) & (EURO/NEMA), 67.5mmx45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74715

CHINA 10 AMPERE-250 VOLT (CH1-10R) GB 2099.1 OUTLET, TYPE I, (86mmX86mm Size), 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers. View # 72350, 72360,72350-F wall boxes.
* Outlet accepts 10 ampere (CH1-10P) China plugs only.

74730

CHINA PLUG, 10 AMPERE-250 VOLT, TYPE I PLUG, (CH1-10P), REWIREABLE ANGLE PLUG. WHITE.
Notes:
* Plug connects with China CH1-10R (10A-250V) outlets only.
* China 16 Ampere-250 Volt (CH2-16P) Plugs, Power Cords cords available. View # 74630

74730-BLK

CHINA PLUG, 10 AMPERE-250 VOLT, TYPE I PLUG, (CH1-10P), REWIREABLE ANGLE PLUG. BLACK.
Notes:
* Connects with China CH1-10R (10A-250V) outlets only.
* China 16 Ampere-250 Volt (CH2-16P) Plugs, Power Cords cords available. View # 74630-BLK

74740-YL

CHINA PLUG, 10A-250V TYPE I PLUG, (CH1-10P), REWIREABLE STRAIGHT PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). YELLOW.
Notes:
* Plug connects with China CH1-10R (10A-250V) outlets only.
* China 16 Ampere-250 Volt (CH2-16P) Plugs, Power Cords cords available. View # 74640-YL

74760

CHINA CONNECTOR, 10A-250V WEATHERPROOF REWIREABLE CONNECTOR , SHUTTERED CONTACTS, TYPE I (CH1-10R) IP55 RATED (COVER CLOSED). GRAY.
Notes:
* Max cord O.D. = 0.472".
* Option = Connector also designed for surface mount applications.
* Connector accepts China CH1-10P (10A-250V) plugs only.

74800

Special order item. Contact sales office.
AUSTRALIA / NEW ZEALAND 20A-250V TYPE I PANEL MOUNT OUTLET (AU3-20R). WHITE.
Notes:
* Outlet accepts 20 Ampere, 15 Ampere, 10 Ampere Australia / New Zealand plugs.

74841

AUSTRALIA / NEW ZEALAND PLUG, 20 AMPERE-240 VOLT AS/NZS 3112 (AU3-20P), REWIREABLE POWER PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). CLEAR (TRANSPARENT).
Notes:
* Mates with Australian / New Zealand 20A-240V outlets / connectors only.
* Applications = Medical / Industrial / Commercial Equipment.

74841-A

AUSTRALIA / NEW ZEALAND PLUG, 20 AMPERE-240 VOLT, TYPE I PLUG, AS/NZS 4417(RCM), AS/NZS 3112, (AU3-20P), IP2X RATED, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Mates with Australian / New Zealand 20A-240V outlets / connectors only.
* Applications = Industrial / Commercial Equipment.

74860-CL

AUSTRALIA / NEW ZEALAND CONNECTOR, 20A, 15A, 10A-240 VOLT REWIREABLE IN-LINE CONNECTOR, (AU3-20R) AS/NZS 3112, COMPRESSION CORD GRIP, 2 POLE-3 WIRE GROUNDING (2P+E). CLEAR, TRANSPARENT.
Notes:
* Connector accepts 20 Ampere, 15 Ampere, 10 Ampere Australian / New Zealand plugs.

74900

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, INTERNATIONAL, UK, BRITISH, UNITED KINGDOM, AUSTRALIA, CHINA, S. AMERICA, BRAZIL, ASIA, THAILAND, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE. <
* Contact sales for product application assistance.

74900-BLK

UNIVERSAL MULTI-CONFIGURATION 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910-BLK.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-BE.
* Contact sales for product application assistance.

74900-WPC

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND CONNECTOR, MULTI-CONFIGURATION, REWIREABLE IN-LINE CONNECTOR, 13A-250V, 15A-127V (MAXIMUM RATINGS), WEATHERPROOF, IP55 RATED (COVER CLOSED), SHUTTERED CONTACTS, GRAY.
Notes:
* Max cord O.D. = 0.472".
* Option = Wall mount, connector also designed for surface mount applications.

74900x45

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA , ASIA, THAILAND, 13A-250V, 15A-127V [MAX. RATINGS], MULTI-CONFIGURATION OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING [2P+E]. BLACK [MAGNESIUM COLOR].
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74900x45-W

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA , ASIA, THAILAND, 13A-250V, 15A-127V [MAX. RATINGS], MULTI-CONFIGURATION OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74900X45-WS

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND, 16A-250V, 15A-127V (MAX. RATING), MULTI-CONFIGURATION OUTLET, 67.5mmX45mm MODULAR SIZE, SINGLE POLE SWITCH, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Plug adapter # 30140 available, provides "Earth" (2P+E) grounding connection for European, German, French Schuko CEE 7/7, CEE 7/4 plugs when used with outlet.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74901

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, INTERNATIONAL, UK, BRITISH, UNITED KINGDOM, AUSTRALIA, CHINA, S. AMERICA, BRAZIL, ASIA, THAILAND, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Surface mount on wall boxes. View surface box series
* Contact sales for product application assistance.

74901-515

AMERICAN NEMA 5-15R TYPE A, B, 15 AMPERE 125 VOLT MODULAR OUTLET, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts 15A-125V Type A NEMA 1-15P, Type B NEMA 5-15P plugs.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-515U

INTERNATIONAL MULTI-CONFIGURATION 10 AMPERE 250 VOLT TYPE A, B, I, O, MODULAR OUTLET, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-BLK

UNIVERSAL MULTI-CONFIGURATION 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910-BLK.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-BE.
* Contact sales for product application assistance.

74901-CH10

CHINA 10A-250V MODULAR OUTLET, 36mmX36mm SIZE, GB 2099-1, GB 1002 TYPE I (CH1-10R), 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
APPROVALS = CHINA CCC. CERT. = CE MARK.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-CH10-D

CHINA 10 AMPERE 250 VOLT DUPLEX OUTLET, GB 2099-1, GB 1002 TYPE I (CH1-10R), 2 POLE-3 WIRE GROUNDING (2P+E). IVORY. APPROVALS CHINA CCC

Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Receptacles can be rotated and installed in multiple directions. Up or down direction or each receptacle in either direction.
* Surface mount on wall boxes # 74225, # 84225-AR. Weatherproof horizontal mount cover # 74900-MCS.
* Outlet accepts (2P+E) 10A-250V China (CH1-10P), Australia (AU1-10P), Argentina (AR1-10P) plugs.
* Universal outlets switches, circuit breakers, USB sockets, IEC C-13 sockets, C-14 inlets available. Scroll down to view.

74901-CH16

CHINA 16 AMPERE 250 VOLT MODULAR OUTLET, 36mmX36mm SIZE, GB 2099-1, GB 1002 TYPE I (CH2-16R), 2 POLE-3 WIRE GROUNDING (2P+E), IVORY.
APPROVAL S= CHINA CCC. CERT. = CE MARK.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-CH16-D

CHINA 16 AMPERE 250 VOLT DUPLEX OUTLET, GB 2099-1, GB 1002 TYPE I (CH2-16R). IVORY. APPROVALS CHINA CCC
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Receptacles can be rotated and installed in multiple directions. Up or down direction or each receptacle in either direction.
* Surface mount on wall boxes # 74225, # 84225-AR. Weatherproof horizontal mount cover # 74900-MCS.
* Outlet accepts (2P+E) 16A-250V (China CH2-16P), Argentina (AR2-20P) 20A-250V plugs.

74901-CHU

CHINA MULTI-CONFIGURATION 10A-250V MODULAR OUTLET, GB 2099-1 TYPE I (CH1-10R), 36mmX36mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E), SCREW-CLAMP TERMINALS. IVORY.
APPROVALS = CHINA CCC. CERT. = CE MARK. <
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-CHU-D

CHINA MULTI-CONFIGURATION 10A-250V DUPLEX OUTLET, GB 2099-1, GB 1002 TYPE I (CH1-10R), SHUTTERED CONTACTS. IVORY. APPROVALS CHINA CCC
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Receptacles can be rotated and installed in multiple directions. Up or down direction or each receptacle in either direction.
* Surface mount on wall boxes # 74225, # 84225-AR. Weatherproof horizontal mount cover # 74900-MCS.
* Outlet accepts (2P+E) 10A-250V China (CH1-10P), Australia (AU1-10P), Argentina (AR1-10P) plugs.
* Outlet accepts (2P) China, American, European, Australia, Argentina plugs.

74901-CHU-X

CHINA MULTI-CONFIGURATION 16A-250V / 10A-250V VOLT DUPLEX OUTLET, GB 2099-1, GB 1002 TYPE I (CH1-10R / CH2-16R). 2 POLE-3 WIRE GROUNDING (2P+E). IVORY. APPROVALS CHINA CCC.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Receptacles can be rotated and installed in multiple directions. Up or down direction or each receptacle in either direction.
* Surface mount on wall boxes # 74225, # 84225-AR. Weatherproof horizontal mount cover # 74900-MCS.
* Outlet accepts (2P+E) 10A-250V China (CH1-10P), Australia (AU1-10P), Argentina (AR1-10P) plugs.
* Outlet accepts (2P+E) 16A-250V (China CH2-16P), Argentina (AR2-20P) 20A-250V plugs.
* Outlet accepts (2P) China, American, European, Australia, Argentina plugs.

74901-INS

BLANK MODULAR INSERT, 36mmX36mm SIZE. IVORY.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74901-LKC

UNIVERSAL CONNECTOR, REWIREABLE LOCKING, 15 AMPERE 250 VOLT, 15 AMPERE 125 VOLT, 2 POLE-3 WIRE GROUNDING (2P+E), MAX CORD GRIP O.D. = 10mm (0.393"). BLACK.
Notes:
* #74901-LKC locking connector connects with #58206, #58205 power strip inlets and #74901-LKP locking plug.
* Locking power cords (88-WE-XXX series) are listed below. Scroll down to view.

74901-LKO

UNIVERSAL LOCKING MODULAR OUTLET, 16A-250V, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Mating wall plates / mounting frames, GFCI outlets, PDU power strips, circuit breaker, switch, plug adapters are listed below in related products. Scroll down to view.

74901-LKP

UNIVERSAL LOCKING PLUG, 15A-250V, 15A-125V, 2 POLE-3 WIRE GROUNDING (2P+E), MAX CORD GRIP O.D. = 10mm (0.393"). BLACK.
Notes:
* #74901-LKP plug connects with #74901-LKC locking connector and #74901-LKO locking outlet.

74901-SCH

MULTI-CONFIGURATION EUROPEAN SCHUKO 16A-250V CEE 7/3 (EU1-16R), TYPE A, B, C, E, F, L, J, OUTLET, ACCEPTS CEE 7/7, CEE 7/4 (EU1-16P), ITALY-CHILE (IT1-10P), SWISS (SW1-10P), AMERICAN NEMA 5-15P PLUGs. IVORY. <
Notes:
* Snap-in panel mount frame. View series # 74970-W.
* Surface panel mount frames. View series # 74930.
* DIN Rail mount frame. View # 74970-DIN.
** 74901-SCH accepts most NEMA 5-15P molded cord set plugs with * small plug body design*.
* Contact sales for product application assistance.

74901-UK

UNITED KINGDOM, BRITISH MODULAR OUTLET, 13A-250V BS 1363 TYPE G (UK1-13R), 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Contact sales for product application assistance.

74921

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, OUTLET, SHUTTERED CONTACTS. IVORY.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Surface mounts on wall boxes # 74225, # 84225-AR.
* Weatherproof horizontal mount cover # 74900-MCS. Note: Not for use on wall boxes # 74225, # 84225-AR. MCS.

74922

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, BRITISH (**), DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL DUPLEX OUTLET, SHUTTERED CONTACTS. IVORY.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Surface mounts on wall boxes # 74225, # 84225-AR.
* Weatherproof horizontal mount cover # 74900-MCS. Note: Not for use on wall boxes # 74225, # 84225-AR.
* (**) Duplex outlet accepts European, International plugs. NOTE: Outlet accepts ONLY ONE British BS 1363 plug.

74923

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL OUTLET, SHUTTERED CONTACTS. BLACK.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Surface mounts on wall boxes # 74225, # 84225-AR.
* Weatherproof horizontal mount cover # 74900-MCS. Note: Not for use on wall boxes # 74225, # 84225-AR.

74924

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, BRITISH (**), DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL DUPLEX OUTLET, SHUTTERED CONTACTS. BLACK.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Surface mounts on wall boxes # 74225, # 84225-AR.
* Weatherproof horizontal mount cover # 74900-MCS. Note: Not for use on wall boxes # 74225, # 84225-AR.
* (**) Duplex outlet accepts European, International plugs. NOTE: Outlet accepts ONLY ONE British BS 1363 plug.

75100x45

ITALY, CHILE, S. AMERICA 10A-250V OUTLET CEI 23-16/VII (IT1-10R), 22.5mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. DIN rail mount Frame. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

75130

ITALIAN, ITALY, CHILE PLUG, 10A-250V TYPE L PLUG, CEI 23-50 (S11), CEI 23-16 (IT1-10P), REWIREABLE ANGLE PLUG, (4.0mm DIA. PINS). BLACK.

75140

ITALIAN, ITALY, CHILE PLUG, 10A-250V CEI 23-50 (S11), CEI 23-16 TYPE L PLUG (IT1-10P), REWIREABLE PLUG, (2P+E), (4.0mm DIA. PINS). BLACK.

75160

ITALIAN, ITALY, CHILE CONNECTOR, 10/16A-250V CEI 23-50 (S17) (S11), CEI 23-16 TYPE L (IT1-10R/IT2-16R) REWIREABLE CONNECTOR. BLACK.

75500-S

ITALY, CHILE 16A / 10A -250V OUTLET, SHUTTERED CONTACTS, TYPE L, CEI 23-50 (S17) (S11) CEI 23-16, (IT2-16R & IT1-10R). WHITE.
Notes:
*
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* For surface mount applications use wall box #79260X45-N.
* For flush mount applications use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED series.

75500x45

ITALY, CHILE, S. AMERICA 16/10A-250V OUTLET CEI 23-16/VII (IT1-10R/IT2-16R), 22.5mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

75500X45-BLK

ITALY, CHILE, S. AMERICA 16/10A-250V OUTLET CEI 23-16/VII (IT1-10R/IT2-16R), 22.5mmX45mm MODULAR SIZE. BLACK (MAGNESIUM COLOR).
Notes:
* Mounts on American 2X4 wall boxes, requires frame #79170X45-N & #79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame #79210X45-N & #79215X45-N wall plate (White) & blank #79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79266X45-N.
* Panel mount frame #79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

75530

ITALIAN, ITALY, CHILE PLUG, 16A-250V TYPE L PLUG, CEI 23-50 (S17), REWIREABLE ANGLE PLUG, (5.0mm DIA. PINS). BLACK.

75540

ITALIAN, ITALY, CHILE PLUG, 16A-250V TYPE L PLUG, CEI 23-50 (S17), REWIREABLE PLUG, (5.0mm DIA. PINS). BLACK.

76100x45

SWITZERLAND 10A-250V OUTLET TYPE J (SW1-10R), 22.5mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76101-S

SWISS 10A-250V OUTLET, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* For surface mount applications use wall box #79260X45-N.

76101x45

SWITZERLAND 10A-250V RECEPTACLE, OUTLET, SOCKET, TYPE J (SW1-10R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76105x45

SWITZERLAND 16A-250V T-23 (SW2-16R & SW1-10R) OUTLET TYPE J, 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76110

SWISS 10A-250V OUTLET (SW1-10R) TYPE 13, SNAP-IN PANEL MOUNT. WHITE.

76140

SWISS PLUG, 10A-250V, SEV (SN 441011 CH-TYP 12) (SW1-10P), TYPE J PLUG, INSULATED PINS, REWIREABLE PLUG, CORD DIA. = 0.394". BLACK.

76140-SP

SWISS PLUG, 10 AMPERE-250 VOLT, SN 441011 TYP 13, IP55, (SW1-10P) TYPE J PLUG, INSULATED PINS, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), CORD DIA. ACCEPTED 6.4mm-14.5mm, PA6, TPE, THERMOPLASTIC (HIGH IMPACT RESISTANT). BLACK.
Notes:
* Use 76140-SP with receptacle 76120-NS, 76120-NSB to maintain IP55 rating while in use.
* Plug accepts 1mm to 2.5mm gauge wire sizes.
* Nickel plated screw terminals. Terminal screw torque = 80 Ncm, Housing screw torque = 80 Ncm, Strain relief torque = 500 Ncm.
* Operating temp. = -25°C to +40°C.
* Materials = PA6, TPE, THERMOPLASTIC.

76142X45

NEMA 1-15R, AMERICAN, ASIA, CHINA, THAILAND, S. AMERICA, SAUDI ARABIA, 15A-127V MODULAR OUTLET, 22.5mmX45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76142X45-BLK

NEMA 1-15R, AMERICAN, ASIA, CHINA, THAILAND, S. AMERICA, SAUDI ARABIA, 15A-127V MODULAR OUTLET, 22.5mmX45mm SIZE. BLACK (MAGNESIUM COLOR).
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76143x45

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) OUTLET, IP20, TYPE A , TYPE B, 45mmX45mm MODULAR SIZE, SCREW TERMINALS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts American NEMA 1-15P (2P), NEMA 515-P (2P+E) Plugs.
* Duplex outlet available #76143X45D. GFCI Duplex available #1597-W.
* Mounts on American 2x4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4x4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame #79100X45. DIN rail mount Frame #79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76143X45D

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) DUPLEX OUTLET, TYPE A , TYPE B, 67.5mmX45mm MODULAR SIZE, IP20 RATED, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* GFCI Duplex available # 1597-W.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76160

SWISS CONNECTOR, 10A-250V (SW1-10R) SEV 1011 REWIREABLE IN-LINE CONNECTOR, CORD DIA. = 0.394", BLACK.

76160-SP

SWISS CONNECTOR, 10 AMPERE-250 VOLT REWIREABLE CONNECTOR, SN 441011 TYP 13, IP55, (SW1-10R), 2 POLE-3 WIRE GROUNDING (2P+E), MAX CORD DIA. ACCEPTED 11mm, PA6, TPE, THERMOPLASTIC (HIGH IMPACT RESISTANT). BLACK WITH BLUE COVER.
Notes:
* Use 10 Amp plug 76140-SP with 76160-SP to maintain IP55 rating while in use.

76510

SWITZERLAND 16A-250V T-23 OUTLET (SW2-16R / SW1-10R) FLUSH MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* Outlet accepts 16 ampere & 10 Ampere Swiss plugs.
* For Surface mount applications use wall box #79260X45-N.

76515

SWITZERLAND 16A-250V T-23 OUTLET (SW2-16R / SW1-10R) SURFACE MOUNT. WHITE.

76540

SWITZERLAND PLUG, 16A-250V, SEV (SN 441011 CH-TYP 23), (SW2-16P), TYPE J PLUG, REWIREABLE PLUG, CORD DIA. = 0.394". BLACK.

76540-SP

SWISS PLUG, 16 AMPERE-250 VOLT, SN 441011 TYP 23, IP55, (SW1-16P) TYPE J PLUG, INSULATED PINS, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E), CORD DIA. ACCEPTED 6.4mm-14.5mm, PA6, TPE, THERMOPLASTIC (HIGH IMPACT RESISTANT). BLACK.
Notes:
* Use 76540-SP with receptacle 76520-NS, 76520-NSB to maintain IP55 rating while in use.
* Plug accepts 1.5mm to 2.5mm gauge wire sizes.
* Nickel plated screw terminals. Terminal screw torque = 80 Ncm, Housing screw torque = 80 Ncm, Strain relief torque = 500 Ncm.
* Operating temp. = -25°C to +40°C.
* Materials = PA6, TPE, THERMOPLASTIC.

76560

SWITZERLAND CONNECTOR, 16A-250V T-23 REWIREABLE CONNECTOR (SW2-16R / SW1-10R) CORD DIA. = 0.394". BLACK.

76560-SP

SWISS CONNECTOR, 16 AMPERE-250 VOLT REWIREABLE CONNECTOR, SN 441011 TYP 23, IP55, (SW1-16R), 2 POLE-3 WIRE GROUNDING (2P+E), MAX CORD DIA. ACCEPTED 11mm, PA6, TPE, THERMOPLASTIC (HIGH IMPACT RESISTANT). BLACK WITH BLUE COVER.
Notes:
* Use 16 Amp plug 76540-SP with 76560-SP to maintain IP55 rating while in use.
* 16 Amp connector #76560-SP accepts 16A and 10A Swiss plugs.

77100x45

ISRAEL 16A-250V OUTLET TYPE H, SI 32 (IS1-16R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

77110

ISRAELI OUTLET, TYPE H, 16A-250V, (IS1-16R), 86mmX86mmm SIZE, PANEL OR WALL BOX MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED series.

77110-S

ISRAEL 16A-250V SINGLE OUTLET SI 32 (IS1-16R), "SHUTTERED CONTACTS", FLUSH OR SURFACE MOUNT. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* For surface mount applications use wall box #79260X45-N.
* For flush mount applications use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED series.

77130

ISRAELI PLUG, 16A-250V, TYPE H PLUG, SI 32 (IS1-16P), REWIREABLE ANGLE PLUG, MAX. O.D. CORD GRIP = 0.354". WHITE.

77140

ISRAELI PLUG, 16 AMPERE-250 VOLT TYPE H PLUG, SI 32 (IS1-16P), REWIREABLE PLUG, MAX. O.D. CORD GRIP = 0.276". WHITE.

77140-BLK

ISRAELI PLUG, 16 AMPERE-250 VOLT TYPE H PLUG, SI 32 (IS1-16P), REWIREABLE PLUG, MAX. O.D. CORD GRIP = 0.276". BLACK.

77140-BLK-A

ISRAELI PLUG, 16 AMPERE-250 VOLT TYPE H PLUG, SI 32 (IS1-16P), REWIREABLE PLUG, MAX. O.D. CORD GRIP = 0.276". BLACK.

77160

ISRAELI CONNECTOR,REWIREABLE IN-LINE 16A-250V CONNECTOR TYPE H SI 32 (IS1-16R). WHITE.

77160-BLK

ISRAELI CONNECTOR, IN-LINE 16A-250V REWIREABLE CONNECTOR, TYPE H SI 32 (IS1-16R), BLACK.

77508x45

DENMARK, DANISH 13A-250V POWER OUTLET TYPE K (DE1-13R), 45mmX45mm MODULAR SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

77509x45

DENMARK ELECTRONIC DATA (EDP) OUTLET, 13A-250V, AFSNIT 107-2-D (DE2-13R), 45mmX45mm MODULAR SIZE, SNAP-IN MOUNT, SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

78117

DENMARK 16A-250V PANEL MOUNT OUTLET, TYPE K (DE1-13R), AFSNIT 107-2-D1, SHUTTERED CONTACTS. WHITE.

78117-HG

DENMARK HOSPITAL GRADE PANEL MOUNT OUTLET, 16A-250V, WHITE.

78117-S

DENMARK, DANISH 13A-250V SINGLE OUTLET TYPE K [DE1-13R], SHUTTERED CONTACTS. WHITE.
Notes:
* Mounts on European wall boxes with 60mm (60.3mm) centers.
* For surface mount applications use wall box #79260X45-N.

78130

DENMARK PLUG, 16A-250V TYPE K PLUG (DE1-13P), REWIREABLE ANGLE POWER PLUG. GRAY.

78130-HG

DENMARK HOSPITAL GRADE ANGLE PLUG, 16A-250V, AFSNIT 107-2-01. GRAY.

78140

DENMARK PLUG, 16A-250V (DE1-13P) TYPE K PLUG, REWIREABLE POWER PLUG. WHITE.

78140-BLK

DENMARK PLUG, 16A-250V (DE1-13P) TYPE K PLUG, REWIREABLE POWER PLUG. BLACK.

78140-HG

DENMARK HOSPITAL GRADE PLUG, 16A-250V, AFSNIT 107-2-01. WHITE.

78160

DENMARK, DANISH CONNECTOR, 16A-250V REWIREABLE IN-LINE TYPE K CONNECTOR (DE1-13R). WHITE.

78160-BLK

DENMARK, DANISH CONNECTOR, 16A-250V REWIREABLE IN-LNE CONNECTOR TYPE K (DE1-13R). BLACK.

78230

DENMARK ELECTRONIC DATA ANGLE PLUG (EDP) 13A-250V, (DE2-13P), REWIREABLE. GREY.

78500

JAPAN 15A-125V DUPLEX RECEPTACLE, OUTLET, SOCKET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY, BACK OR SIDE WIRED. IVORY. PSE, JET APPROVED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78501.
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78500-LK. Prevents accidental disconnects.

78500-BK

JAPAN 15A-125V DUPLEX OUTLET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY, BACK OR SIDE WIRED. BLACK. PSE, JET APPROVED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78501.
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78500-LK. Prevents accidental disconnects.

78500-LK

15 AMPERE-125 VOLT DUPLEX LOCKING OUTLET, JAPAN JIS C 8303 (JA5-15R), OUTLET "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P PLUGS), JAPAN (JA1-15P PLUGS) . IVORY. PSE, JET APPROVED.
Notes:
* This outlets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs.. Prevents accidental disconnects.
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78502.

78508

JAPAN 15A-125V PANEL MOUNT OUTLET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY. IVORY. PSE, JET APPROVED.
Notes:
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78508-LK prevents accidental disconnects.

78508-BK

JAPAN 15A-125V PANEL MOUNT OUTLET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY. BLACK. PSE, JET APPROVED.
Notes:
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78508-LK prevents accidental disconnects.

78508-LK

15 AMPERE-125 VOLT LOCKING PANEL MOUNT OUTLET, JAPAN JIS C 8303 (JA5-15R), OUTLET "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P PLUGS), JAPAN (JA1-15P PLUGS) , BACK OR SIDE WIRED WIRED. IVORY. PSE, JET APPROVED.
Notes:
* This outlets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.

78508-LK-BK

15 AMPERE-125 VOLT LOCKING PANEL MOUNT OUTLET, JAPAN JIS C 8303 (JA5-15R), OUTLET "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P PLUGS), JAPAN (JA1-15P PLUGS) , BACK OR SIDE WIRED WIRED. BLACK. PSE, JET APPROVED.
Notes:
* This outlets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.

78520

JAPAN 15A-125V OUTLET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY, BACK OR SIDE WIRED. IVORY. PSE, JET APPROVED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78503.
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78520-LK prevents accidental disconnects.

78520-BK

JAPAN 15A-125V OUTLET, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, IMPACT RESISTANT NYLON BODY, BACK OR SIDE WIRED. BLACK. PSE, JET APPROVED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78503.
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs.
* Locking version available #78520-LK-BK. Prevents accidental disconnects.

78520-LK

15 AMPERE-125 VOLT LOCKING OUTLET, JAPAN JIS C 8303 (JA5-15R), OUTLET "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P PLUGS), JAPAN (JA1-15P PLUGS) , BACK WIRED. IVORY. PSE, JET APPROVED.
Notes:
* This outlets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78504 or #78503.

78520-LK-BK

15 AMPERE-125 VOLT LOCKING OUTLET, JAPAN JIS C 8303 (JA5-15R), OUTLET "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P PLUGS), JAPAN (JA1-15P PLUGS) , BACK WIRED. BLACK. PSE, JET APPROVED.
Notes:
* This outlets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.
* Outlet mounts on American 2x4 wall boxes. Mating wall plate #78504 or #78503

78530

JAPAN PLUG, 15 AMPERE-125 VOLT, JIS C 8303 (JA1-15P), TYPE B PLUG, REWIREABLE PLUG, IMPACT RESISTANT NYLON BODY, MAX. CORD O.D. = 0.465" DIA. BLACK.
Notes:
* Certifications: PSE, JET, JIS C 8303, RoHS.

78530-A

JAPAN PLUG, 15A-125V, (JA1-15P), TYPE B PLUG, REWIREABLE PLUG, NYLON BODY. BLACK.

78540

JAPAN HOSPITAL PLUG, 15A-125V, JIS T 1021, JIS C 8303 (JA1-15P), TYPE B, REWIREABLE, IMPACT RESISTANT, TERMINALS ACCEPT 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.625" CORD GRIP RANGE. TRANSPARENT.
JIS T 1021 Hospital Standard. PSE APPROVED.

78860

15A-125V JAPAN CONNECTOR, JIS C 8303 (JA1-15R), TYPE B, REWIREABLE, IMPACT RESISTANT NYLON BODY, MAX. CORD O.D. = 0.465 DIA. BLACK.
Notes:
* Certifications: PSE, JET, JIS C 8303, RoHS.
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking version available #78860-LK. Prevents accidental disconnects.

78860-LK

15A-125V LOCKING IN-LINE CONNECTOR, JAPAN JIS C 8303 (JA5-15R), CONNECTOR "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P) PLUGS, JAPAN (JA1-15P) PLUGS , IMPACT RESISTANT NYLON BODY, MAX. CORD O.D. = 0.465" DIA. BLACK. PSE, JET APPROVED.
Notes:
* This sockets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.

81720-D-WHT

SOUTH KOREA DUPLEX OUTLET (45° ANGLED SOCKETS), 16A-250V, SHUTTERED CONTACTS, STAB-IN TERMINALS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.
* Mounts on American 2x4, South Korea & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

81720-WHT

SOUTH KOREA OUTLET, 16A-250V, SHUTTERED CONTACTS, STAB-IN TERMINALS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.
* Mounts on American 2x4, South Korea & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

81720-WP-D-WHT

SOUTH KOREA WEATHER RESISTANT DUPLEX OUTLET WITH COVER (45° ANGLED SOCKETS) 16A-250V, SHUTTERED CONTACTS, STAB-IN TERMINALS, GASKET, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.
* Mounts on American 2x4, South Korea & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

81720-WP-WHT

SOUTH KOREA WEATHER RESISTANT OUTLET WITH COVER, 16A-250V, SHUTTERED CONTACTS, STAB-IN TERMINALS, GASKET, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.
* Mounts on American 2x4, South Korea & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

81730-BLK

SOUTH KOREA ANGLE PLUG, 16A-250V, KSC8305, CEE 7/4 TYPE E, F, (SK1-16P), IP20 RATED, REWIREABLE, IMPACT RESISTANT. (KC MARK). BLACK.

81730-WHT

SOUTH KOREA ANGLE PLUG, 16A-250V, KSC8305, CEE 7/4 TYPE E, F, (SK1-16P), IP20 RATED, REWIREABLE, IMPACT RESISTANT. (KC MARK). WHITE.

81740-BLK

SOUTH KOREA PLUG, 16A-250V, KSC8305, CEE 7/4 TYPE E, F, (SK1-16P), IP20 RATED, REWIREABLE, IMPACT RESISTANT. (KC MARK). BLACK.

81740-WHT

SOUTH KOREA PLUG, 16A-250V, KSC8305, CEE 7/4 TYPE E, F, (SK1-16P), IP20 RATED, REWIREABLE, IMPACT RESISTANT. (KC MARK). WHITE.

81760-WHT

SOUTH KOREA CONNECTOR (IN-LINE), 16A-250V, SHUTTERED CONTACTS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, REWIREABLE, IMPACT RESISTANT. (KC MARK). WHITE.

81780-BLK

SOUTH KOREA PANEL MOUNT OUTLET, 16A-250V, SHUTTERED CONTACTS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). BLACK.

81780-WHT

SOUTH KOREA PANEL MOUNT OUTLET, 16A-250V, SHUTTERED CONTACTS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.

81781-BLK

SOUTH KOREA WEATHER RESISTANT PANEL MOUNT OUTLET WITH COVER, 16A-250V,SHUTTERED CONTACTS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). BLACK.

81781-WHT

SOUTH KOREA WEATHER RESISTANT PANEL MOUNT OUTLET WITH COVER, 16A-250V, SHUTTERED CONTACTS, KSC8305, CEE 7/4 TYPE E, F, (SK1-16R), IP20 RATED, IMPACT RESISTANT. (KC MARK). WHITE.

81841

TAIWAN PLUG, 15 AMPERE 125 VOLT, REWIREABLE PLUG, RUBBER BODY. BLACK

81860

TAIWAN CONNECTOR, 15 AMPERE 125 VOLT REWIREABLE CONNECTOR, RUBBER BODY. BLACK

84100x45

ARGENTINA 10A-250V IRAM 1073 TYPE I (AR1-10R) MODULAR OUTLET, 45mmX45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

84201

ARGENTINA 10A-250V MODULAR OUTLET, TYPE I (AR1-10R), 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.8Nm
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84201-BLK

ARGENTINA 10A-250V MODULAR OUTLET, TYPE I (AR1-10R), 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY.. Terminal screws torque = 0.8Nm
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84201-D

ARGENTINA 10A-250V MODULAR DUPLEX OUTLET, TYPE I (AR1-10R), 75mmX50mm SIZE, WALL BOX MOUNT, SCREWLESS TERMINALS. WHITE.
Notes:
* Mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84202-D (White). Options: Dark Gray, Chrome.
* Mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Duplex outlet Weatherproof cover Available. View # 84202-WP .
* Surface mount Duplex outlet available. View # 84201-DSM .

84201-DBLK

ARGENTINA 10A-250V MODULAR DUPLEX OUTLET, TYPE I (AR1-10R), 75mmX50mm SIZE, WALL BOX MOUNT, SCREWLESS TERMINALS. DARK GRAY.
Notes:
* Mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84202-D (White). Options: Dark Gray, Chrome.
* Mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Duplex outlet Weatherproof cover Available. View # 84202-WP .
* Surface mount Duplex outlet available. View # 84201-DSM .

84201-DRED

ARGENTINA 10A-250V MODULAR DUPLEX OUTLET, TYPE I (AR1-10R), 75mmX50mm SIZE, WALL BOX MOUNT, SCREWLESS TERMINALS. RED.
Notes:
* Mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84202-D (White). Options: Dark Gray, Chrome.
* Mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Duplex outlet Weatherproof cover Available. View # 84202-WP .
* Surface mount Duplex outlet available. View # 84201-DSM .

84201-DSM

ARGENTINA 10A-250V DUPLEX OUTLET, SURFACE MOUNT, PANEL MOUNT, TYPE I (AR1-10R), SCREWLESS TERMINALS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* For WP Surface mount IP 55 rated applications, use # 84201-D outlet, # 84202-WP cover, wall box # 84225-AR.
* For WP Panel mount IP 55 rated applications, use # 84201-D outlet, # 84202-WP cover.

84201-PM

ARGENTINA 10A-250V PANEL MOUNT OUTLET TYPE I (AR1-10R), 2 POLE-3 WIRE GROUNDING (2P+E). WHITE. Terminal screws torque = 0.8Nm
Notes:
* Option: Dark Gray outlet available.
* Options: Snap-In frames # 84455 (White), # 84455-BLK (Dark Gray).

84201-RED

ARGENTINA 10A-250V MODULAR OUTLET, TYPE I (AR1-10R), 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. RED. Terminal screws torque = 0.8Nm
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84201-S

ARGENTINA 10A-250V OUTLET, SHUTTERED CONTACTS , TYPE I (AR1-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.8Nm
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84201-SBLK

ARGENTINA 10A-250V MODULAR OUTLET, TYPE I (AR1-10R), 37mmX50mm SIZE, SHUTTERED CONTACTS , WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Terminal screws torque = 0.8Nm
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84207

ITALY, CHILE, SOUTH AMERICA 10A-250V MODULAR CEI 23-16/VII OUTLET, TYPE L (IT1-10R), SHUTTERED CONTACTS, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84207-BLK

ITALY, CHILE, SOUTH AMERICA 10A-250V MODULAR CEI 23-16/VII OUTLET, TYPE L (IT1-10R), SHUTTERED CONTACTS, 18.5mmX50mm MODULAR SIZE,WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84208

ITALY, CHILE, SOUTH AMERICA 16A/10A-250V MODULAR CEI 23-16/VII OUTLET, TYPE L (IT2-16R / IT1-10R), SHUTTERED CONTACTS, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Outlet accepts Italy, Chile 16A & 10A plugs. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84208-BLK

ITALY, CHILE, SOUTH AMERICA 16A/10A-250V MODULAR CEI 23-16/VII OUTLET, TYPE L (IT2-16R / IT1-10R), SHUTTERED CONTACTS, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Outlet accepts Italy, Chile 16A & 10A plugs. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84209

BRAZIL 10A-250V NBR 14136 OUTLET TYPE N (BR2-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84209-BLK

BRAZIL 10A-250V NBR 14136 OUTLET TYPE N (BR2-10R), 37mmX50mm MODULAR SIZE. DARK GRAY, WALL BOX, PANEL, DIN RAIL MOUNT. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84210

BRAZIL 20A-250V NBR 14136 OUTLET TYPE N (BR3-20R / BR2-10R), 37mmX50mm MODULAR SIZE, 2 POLE-3 WIRE GROUNDING (2P+E), WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Outlet accepts Brazil 20A & 10A plugs. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84210-BLK

BRAZIL 20A-250V NBR 14136 OUTLET TYPE N (BR3-20R / BR2-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Outlet accepts Brazil 20A & 10A plugs. Terminal screw torque: 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211-A

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, SHUTTERED CONTACTS, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211-ABLK

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, SHUTTERED CONTACTS, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211-ARED

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, SHUTTERED CONTACTS, WALL BOX, PANEL, DIN RAIL MOUNT. RED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211-BLK

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84211-RED

EUROPEAN SCHUKO, ITALY, CHILE, 16A-250V CEE 7/3 MODULAR OUTLET, TYPE E, F, L (EU1-16R / IT1-10R), 37mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. RED.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84212

AMERICA 15A-125V NEMA 5-15R TYPE A, B, MODULAR OUTLET, 37mmX50mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E), WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84212-BLK

AMERICA 15A-125V NEMA 5-15R TYPE A, B, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84212-RED

AMERICA 15A-125V NEMA 5-15R TYPE A, B, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. RED. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84213

AMERICA 15A-250V NEMA 6-15R TYPE B, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84213-BLK

AMERICA 15A-250V NEMA 6-15R TYPE B, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84214

SOUTH AMERICA, EUROPEAN 15A/10A-250V (NEMA 5-15R / EURO) TYPE B, C, MODULAR OUTLET, 37mmX50mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E), WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame #84202-F & wall plate #84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover #84202-WP, IP55 rated, Mounts on American 2x4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame #84203-F & wall plate #84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame #84455 (White) Option: Dark Gray. DIN Rail Mount. Requires frame #84449. White.
* Surface mount wall boxes, View #84443 series. Surface mount weatherproof box, IP55 rated #84446. White.

84214-BLK

SOUTH AMERICA, EUROPEAN 15A/10A-250V (NEMA 5-15R / EURO) TYPE B, C, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame #84202-F & wall plate #84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover #84202-WP, IP55 rated, Mounts on American 2x4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame #84203-F & wall plate #84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame #84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame #84449. White.
* Surface mount wall boxes, View #84443 series. Surface mount weatherproof box, IP55 rated #84446. White.

84214-RED

SOUTH AMERICA, EUROPEAN 15A/10A-250V (NEMA 5-15R / EURO) TYPE B, C, MODULAR OUTLET, 37mmX50mm SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. RED. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame #84202-F & wall plate #84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover #84202-WP, IP55 rated, Mounts on American 2x4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame #84203-F & wall plate #84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame #84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame #84449. White.
* Surface mount wall boxes, View #84443 series. Surface mount weatherproof box, IP55 rated #84446. White.

84215

AMERICAN 15A-125V (NEMA 1-15R) TYPE A MODULAR OUTLET, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT, TERMINAL SCREWS TORQUE = 0.5Nm. WHITE.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.
* Outlet accepts NEMA 1-15P (2P) Type A plugs.

84215-BLK

AMERICAN 15A-125V NEMA 1-15R TYPE A MODULAR OUTLET, 18.5mmX50mm MODULAR SIZE WALL BOX, PANEL, DIN RAIL MOUNT, TERMINAL SCREWS TORAUE = 0.5Nm. DARK GRAY.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84442 series. Surface mount weatherproof box , IP 55 rated # 84446. White.
* Outlet accepts NEMA 1-15P (2P) Type A plugs.

84216

SOUTH AMERICA, EUROPEAN 15A/10A-250V (NEMA 1-15R / EURO) TYPE A, C, MODULAR OUTLET, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. WHITE. Terminal screws torque = 0.5Nm.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame #84202-F & wall plate #84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover #84202-WP, IP55 rated, Mounts on American 2x4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame #84203-F & wall plate #84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame #84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame #84449. White.
* Surface mount wall boxes, View #84442 series. Surface mount weatherproof box, IP55 rated #84446. White.
* Outlet accepts NEMA 1-15P (2P) Type A plugs & European (2P) Type C plugs with 4.0mm diameter pins.

84216-BLK

SOUTH AMERICA, EUROPEAN 15A/10A-250V (NEMA 1-15R / EURO) TYPE A, C, MODULAR OUTLET, 18.5mmX50mm MODULAR SIZE, WALL BOX, PANEL, DIN RAIL MOUNT. Dark Gray. Terminal screws torque = 0.5Nm. DARK GRAY.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame #84202-F & wall plate #84703 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover #84202-WP, IP55 rated, Mounts on American 2x4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame #84203-F & wall plate #84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame #84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame #84449. White.
* Surface mount wall boxes, View #84442 series. Surface mount weatherproof box, IP55 rated #84446. White.
* Outlet accepts NEMA 1-15P (2P) Type A plugs & European (2P) Type C plugs with 4.0mm diameter pins.

84230

ARGENTINA PLUG, 10A-250V, TYPE I PLUG (AR1-10P), REWIREABLE PLUG, O.D. CORD GRIP = 8mm (0.315") DIA., WHITE.
Notes:
* ARGENTINA 20A-250V Plugs, Power Cords, Outlets, Power Strips available. View series # 84450.
* ARGENTINA, BRAZIL, CHILE, PERU Wall box mount, Panel mount outlets available. View series # 84201-D.
* ARGENTINA POWER STRIPS available. View series # 84205.
* ARGENTINA PLUG ADAPTERS available. View series # 38800-25 .
* Scroll down to view Argentina power cords, power strips, plug adapters and related European, International wiring devices.

84230-BLK

ARGENTINA PLUG, 10A-250V TYPE I PLUG, (AR1-10P), REWIREABLE PLUG, O.D. CORD GRIP = 8mm (0.315") DIA., BLACK.
Notes:
* ARGENTINA 20A-250V Plugs, Power Cords, Outlets, Power Strips available. View series # 84450.
* ARGENTINA, BRAZIL, CHILE, PERU Wall box mount, Panel mount outlets available. View series # 84201-D.
* ARGENTINA POWER STRIPS available. View series # 84205.
* ARGENTINA PLUG ADAPTERS available. View series # 38800-25 .
* Scroll down to view Argentina power cords, power strips, plug adapters and related European, International wiring devices.

84250

ARGENTINA PLUG, 10A-250V TYPE I PLUG, (AR1-10P), REWIREABLE ANGLE PLUG, O.D. CORD GRIP = 13mm (0.510") DIA., WHITE.
Notes:
* Angle plug design allows cord to exit left, right, up or down.

84250-BLK

ARGENTINA PLUG, 10A-250V TYPE I PLUG (AR1-10P), REWIREABLE ANGLE PLUG, O.D. CORD GRIP = 13mm (0.510") DIA., DARK GRAY.
Notes:
* Angle plug design allows cord to exit left, right, up or down.

84260

ARGENTINA CONNECTOR, 10A-250V REWIREABLE CONNECTOR TYPE I (AR1-10R), O.D. CORD GRIP = 8mm (0.315") DIA., WHITE.

84260-BLK

ARGENTINA CONNECTOR, 10A-250V REWIREABLE CONNECTOR TYPE I (AR1-10R), O.D. CORD GRIP = 8mm (0.315") DIA., BLACK.

84410

ARGENTINA 20A-250V MODULAR OUTLET TYPE I (AR2-20R), 37mmX50mm SIZE, SHUTTERED CONTACTS , WALL BOX, PANEL, DIN RAIL MOUNT. WHITE.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84410-BLK

ARGENTINA 20A-250V MODULAR OUTLET TYPE I (AR2-20R), 37mmX50mm SIZE, SHUTTERED CONTACTS , WALL BOX, PANEL, DIN RAIL MOUNT. DARK GRAY.
Notes:
* Outlet mounts on American 2x4 wall boxes. Requires frame # 84202-F & wall plate # 84702 (White). Options: Dark Gray, Chrome.
* Weatherproof Cover # 84202-WP, IP 55 rated, Mounts on American 2X4 Wall box or Panel Mount.
* Outlet mounts on American 4x4 wall boxes. Requires frame # 84203-F & wall plate # 84705 (White). Options: Dark Gray, Chrome.
* Outlet Panel Mounts. Requires frame # 84455 (White) Option: Dark Gray. DIN Rail mount. Requires frame # 84449. White.
* Surface mount wall boxes, View # 84443 series. Surface mount weatherproof box , IP 55 rated # 84446. White.

84450

ARGENTINA PLUG, 20A-250V TYPE I PLUG (AR2-20P), REWIREABLE ANGLE PLUG, O.D. CORD GRIP = 13mm (0.510") DIA., WHITE.
Notes:
* Plug mates with Argentina 20A-250V (AR2-20R) # 84410, # 84410-BLK outlets.
* Plug mates with universal power strips # 59208-C19H, # 59208-C19V, # 59208-C19BH, # 59208-C19BV.
* Argentina TYPE "I" plug designs and "polarity" are different from other countries that have similar TYPE "I" plug designs.

84450-BLK

ARGENTINA PLUG, 20A-250V TYPE I PLUG (AR2-20P), REWIREABLE ANGLE PLUG, O.D. CORD GRIP = 13mm (0.510") DIA., DARK GRAY.
Notes:
* Plug mates with Argentina 20A-250V (AR2-20R) # 84410, # 84410-BLK outlets.
* Plug mates with universal power strips # 59208-C19H, # 59208-C19V, # 59208-C19BH, # 59208-C19BV.
* Argentina TYPE "I" plug designs and "polarity" are different from other countries that have similar TYPE "I" plug designs.

85100-MCD

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, MULTI-CONFIGURATION POWER OUTLET, TYPE A (2P), TYPE B (2P+E), TYPE C (2P), TYPE O, THAILAND TIS 2532-2555 (2P+E), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Mounts on American 2x4 wall boxes & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

85100-MCS

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, MULTI-CONFIGURATION POWER OUTLET, TYPE A (2P), TYPE B (2P+E), TYPE C (2P), TYPE O, THAILAND TIS 2532-2555 (2P+E), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Mounts on American 2x4 wall boxes & International wall boxes with 39/32" (83mm / 84mm) mounting centers.

85100x45

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN, INTERNATIONAL 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, TYPE A (2P), TYPE B (2P+E), TYPE C (2P), TYPE O, THAILAND TIS 2532-2555 (2P+E), MULTI-CONFIGURATION POWER OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Duplex Outlets available #85100X45D, GFCI (RCD) #85100-RCD, Universal GFCI (RCD) #74900-RCDS.
* Complete range of modular devices and mounting component options. Modular Devices Link

85100x45D

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN, INTERNATIONAL 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, TYPE A, B NEMA, TYPE C CEE 7/16, TYPE O, THAILAND TIS 2532-2555 MULTI-CONFIGURATION DUPLEX POWER RECEPTACLE, OUTLET, 67.5mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Mounts on American 2x4 wall boxes, requires frame #79170X45-N & #79180X45-N wall plate (White, SS).
* Mounts on American 4x4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame #730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

85102X45

SOUTH AMERICA, AMERICA, EUROPEAN, THAILAND, ASIA, INTERNATIONAL 16A-250V, 15A-127V, TYPE A NEMA, TYPE C CEE 7/16 MULTI-CONFIGURATION OUTLET, SHUTTERED CONTACTS, 22.5mmX45mm MODULAR SIZE. WHITE.

85102X45-BLK

SOUTH AMERICA, AMERICA, EUROPEAN, THAILAND, ASIA, INTERNATIONAL 16A-250V, 15A-127V, TYPE A NEMA, TYPE C CEE 7/16 MULTI-CONFIGURATION OUTLET, SHUTTERED CONTACTS, 22.5mmX45mm MODULAR SIZE. BLACK (MAGNESIUM COLOR).

85145-BLK

THAILAND PLUG, 16 AMPERE-250 VOLT, TISI TIS 166-2549 TYPE O, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.
* Plug supplied with cable hanger support ring. Removable if not required.

85160-BLK

THAILAND CONNECTOR, MULTI-CONFIGURATION,16A-250V, TYPE O TIS 2432-2555, ASIA, SOUTH AMERICA, AMERICA TYPE A, B, C, REWIREABLE CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Connector accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Connector supplied with cable hanger support ring. Removable if not required.

85162

THAILAND, ASIA, SOUTH AMERICA CONNECTOR, MULTI-CONFIGURATION DUPLEX REWIREABLE CONNECTOR TYPE A, B, C AND TYPE O TIS 2432-2555, SHUTTERED CONTACTS, 16 AMPERE-250 VOLT (3,500 WATT MAX), 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Connector supplied with cable hanger support ring. Removable if not required.

85163

THAILAND, ASIA, SOUTH AMERICA MULTI-CONFIGURATION POWER STRIP, TYPE A, B, C AND TYPE O TIS 2432-2555 FOUR OUTLET REWIREABLE POWER STRIP, ILLUMINATED SINGLE POLE CIRCUIT BREAKER, SHUTTERED CONTACTS, 16 AMPERE-250 VOLT (3,500 WATT MAX), 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Power Strip accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Power strip supplied with cable hanger support ring. Removable if not required.

85164

THAILAND, ASIA, SOUTH AMERICA CONNECTOR, MULTI-CONFIGURATION FOUR OUTLET REWIREABLE CONNECTOR, TYPE A, B, C AND TYPE O TIS 2432-2555, SURFACE OR WALL MOUNT, SHUTTERED CONTACTS, 16 AMPERE-250 VOLT (3,500 WATT MAX), 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Connector supplied with cable hanger support ring. Removable if not required.

85165

THAILAND, ASIA, SOUTH AMERICA MULTI-CONFIGURATION POWER STRIP, TYPE A, B, C AND TYPE O TIS 2432-2555 FOUR OUTLET REWIREABLE POWER STRIP WITH 30 AMP DOUBLE POLE CIRCUIT BREAKER, SHUTTERED CONTACTS, 16 AMPERE-250 VOLT (3,500 WATT MAX), 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Power Strip accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Power strip supplied with cable hanger support ring. Removable if not required.

85241-BLU

THAILAND PLUG 16A-250V, TISI TYPE O TIS 166-2549, REWIREABLE PLUG, 2 POLE-2 WIRE (2P). BLUE.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85241-GRY

THAILAND PLUG 16 AMPERE-250 VOLT, TISI TYPE O TIS 166-2549, REWIREABLE PLUG, 2 POLE-2 WIRE (2P). GRAY.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85242-BLU

THAILAND PLUG 16A-250V, TISI TYPE O TIS 166-2549, REWIREABLE PLUG, 2 POLE-2 WIRE (2P). BLUE.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85242-GRY

THAILAND PLUG 16 AMPERE-250 VOLT, TISI TYPE O TIS 166-2549, REWIREABLE PLUG, 2 POLE-2 WIRE (2P). GRAY.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85245-BLK

THAILAND PLUG 16A-250V, TISI TYPE O TIS 166-2549 (TH1-16P) REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85245-BLU

THAILAND PLUG 16 AMPERE-250 VOLT, TISI TYPE O TIS 166-2549 (TH1-16P) REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85245-GRY

THAILAND PLUG 16 AMPERE-250 VOLT, TISI TYPE O TIS 166-2549 (TH1-16P), REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). GRAY.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85245-WHT

THAILAND PLUG 16 AMPERE-250 VOLT, TISI TYPE O TIS 166-2549 (TH1-16P), REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
*>>> TIS STANDARD 166-2549 Mandatory effective date November 2020.
* Plug connects with Thailand TIS 2432-2555 Type O multi-configuration Outlets & International Universal Sockets. View: Thailand Receptacles.

85310

BRAZIL 10A-250V NBR 14136 (BR2-10R) TYPE N POWER OUTLET. WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.

85320

BRAZIL 10A-250V DUPLEX POWER OUTLET, TYPE N, NBR 14136 (BR2-10R). WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.

85330

BRAZIL PLUG, 10A-250V NBR 14136 (BR2-10P) TYPE N PLUG, REWIREABLE ANGLE PLUG, NYLON. BLACK.
MAX. CORD GRIP: 0.354" DIA.
Notes:
* Plug mates with 10A-250V, 20A-250V Brazil outlets, connectors.

85330-AB

BRAZIL PLUG, 10A-250V NBR 14136 (BR2-10P) TYPE N PLUG, REWIREABLE ANGLE PLUG, NYLON. BLACK.
CORD GRIP RANGE: 0.250-0.380", TEMP. RATING = -40°C TO +75°C.
Notes:
* Plug mates with 10A-250V, 20A-250V Brazil outlets, connectors.

85330-BLK

BRAZIL PLUG, 10A-250V (BR2-10P), REWIREABLE STRAIGHT / ANGLE PLUG, BLACK.

85340

Currently Out of Stock.
Use in stock replacement option 85340-LG

BRAZIL PLUG, 10A-250V, NBR 14136 (BR2-10P) TYPE N PLUG, REWIREABLE STRAIGHT (*) PLUG. GRAY.
MAX. CORD GRIP: 0.400"DIA.
Notes:
* Plug has an optional "Down Angle" design feature.
* Plug mates with 10A-250V, 20A-250V Brazil outlets, connectors.

85340-LB

BRAZIL PLUG, 10A-250V NBR 14136 (BR2-10P) TYPE N PLUG, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
CORD GRIP RANGE: 0.250-0.435".
Notes:
* Plug mates with 10A-250V, 20A-250V Brazil outlets, connectors.
* 20A-250V Plug View 85430-LB,

85340-LG

BRAZIL PLUG, 10 AMPERE-250 VOLT, NBR 14136 (BR2-10P) TYPE N PLUG, REWIREABLE PLUG, 2 POLE-3 WIRE GROUNDING (2P+E). GRAY.
CORD GRIP RANGE: 0.250-0.435", TEMP. RATING = -40°C +75°C.
Notes:
* Plug mates with 10A-250V, 20A-250V Brazil outlets, connectors.
* 20A-250V Plug View 85430-LG,

85360

BRAZIL CONNECTOR, 10A-250V NBR 14136 (BR2-10R) REWIREABLE IN-LINE CONNECTOR, CORD GRIP = 0.354" DIA., GRAY.

85360-BLK

BRAZIL CONNECTOR, 10A-250V NBR 14136 (BR2-10R) REWIREABLE IN-LINE CONNECTOR, CORD GRIP = 0.500" DIA., BLACK.

85360-LB

BRAZIL CONNECTOR, 10A-250V NBR 14136 (BR2-10P) REWIREABLE IN-LINE CONNECTOR, CORD GRIP = 0.250-0.435", NYLON. BLACK.

85360-LG

BRAZIL CONNECTOR, 10A-250V NBR 14136 (BR2-10P) REWIREABLE IN-LINE CONNECTOR, CORD GRIP = 0.250-0.435", NYLON. GRAY.

85400

BRAZIL 20A-250V NBR 14136 TYPE N (BR3-20R) PANEL MOUNT POWER OUTLET. WHITE.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85400x2

BRAZIL 20A-250V NBR 14136 (BR3-20R) DUPLEX PANEL MOUNT POWER OUTLET. WHITE.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85410

BRAZIL 20A-250V NBR 14136 TYPE N (BR3-20R), SOUTH AFRICA 16A-250V TYPE N POWER OUTLET. WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85420

BRAZIL 20 AMPERE-250 VOLT NBR 14136 TYPE N (BR3-20R) PANEL MOUNT DUPLEX POWER OUTLET, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Mounts on American 2x4 wall boxes or panel mount.
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85430

BRAZIL PLUG, 20A-250V NBR 14136 (BR3-20P) TYPE N PLUG, REWIREABLE ANGLE PLUG, CORD GRIP = 0.354" DIA., GRAY.

85430-AB

BRAZIL PLUG, 20A-250V TYPE N PLUG, NBR 14136 (BR3-20P), REWIREABLE ANGLE PLUG, CORD GRIP = 0.250-0.435", NYLON. BLACK.

85430-BLK

BRAZIL PLUG, 20A-250V NBR 14136 (BR3-20P) TYPE N PLUG, REWIREABLE PLUG, CORD GRIP = 0.400" DIA., BLACK.

85430-LB

BRAZIL PLUG, 20A-250V NBR 14136 TYPE N PLUG, (BR3-20P), REWIREABLE PLUG, CORD GRIP = 0.275-0.450", NYLON. BLACK.

85430-LG

BRAZIL PLUG, 20A-250V TYPE N PLUG, NBR 14136 (BR3-20P), REWIREABLE PLUG, CORD GRIP = 0.275-0.450", NYLON. GRAY.

85460

BRAZIL CONNECTOR, 20A-250V NBR 14136 (BR3-20R), SOUTH AFRICA 16A-250V SANS 164-2 REWIREABLE IN-LINE CONNECTOR, TYPE N, CORD GRIP = 0.354" DIA., GRAY.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85460-BLK

BRAZIL CONNECTOR, 20A-250V NBR 14136 (BR3-20R), SOUTH AFRICA 16A-250V SANS 164-2 REWIREABLE IN-LINE CONNECTOR, TYPE N, CORD GRIP = 0.500" DIA., BLACK.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85460-LB

BRAZIL CONNECTOR, 20A-250V NBR 14136 (BR3-20R), SOUTH AFRICA 16A-250V SANS 164-2 REWIREABLE IN-LINE CONNECTOR, TYPE N, CORD GRIP = 0.275-0.450", NYLON. BLACK.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

85460-LG

BRAZIL CONNECTOR, 20A-250V NBR 14136 (BR3-20R), SOUTH AFRICA 16A-250V SANS 164-2 REWIREABLE IN-LINE CONNECTOR, TYPE N, CORD GRIP = 0.275-0.450", NYLON. GRAY.
Notes:
* Accepts Brazil 10 Ampere, 20 Ampere type N NBR 14136 & South Africa 16 Ampere type N SANS 164-2 plugs / power cords.

88-WSR

Universal LOCKING POWER CONNECTOR, 15 AMPERE-250 VOLT, 15 AMPERE-125 VOLT. BLACK.
Notes:
* Connects with Universal power strips #58206, #58205, #74901-LKP plug, 88-WE-XXX series power cords.
* Universal locking plug available #74901-LKP.

888-2126-UV

IEC 60309 (6h) CEE 17 UNIVERSAL 13A-250V MULTI-CONFIGURATION PLUG ADAPTER. BLUE COLOR.
Notes:
* Adapter outlet accepts British BS 1363, European **, International, American NEMA Plugs. View Dimensional data for details.
* Adapter for European ** SCHUKO CEE 7/7, 7/4 Type E, F (2P+E) plugs. Use # 888-2126-ADP.

Argentina-Devices

ARGENTINA 10 AMPERE, 20 AMPERE 250 VOLT IRAM 2073 TYPE I PLUGS, CONNECTORS, OUTLETS, POWER CORDS, GFCI SOCKETS, POWER STRIPS, PLUG ADAPTERS, WEATHERPROOF ENCLOSURES, WALL BOXES.
Notes:
* Argentina, Brazil, Chile, South America plugs, outlets, GFCI sockets, power strips, power cords, plug adapters for all South America countries are listed below in related products. Scroll down to view.

Brazil-Devices

BRAZIL 10 AMPERE, 20 AMPERE 250 VOLT NBR14136 TYPE N PLUGS, CONNECTORS, OUTLETS, POWER CORDS, GFCI SOCKETS, POWER STRIPS, PLUG ADAPTERS, WEATHERPROOF ENCLOSURES, WALL BOXES. INMETRO APPROVED / CERTIFIED.
Notes:
* Brazil products are individually listed below in related products.
* Scroll down in related products to view and select all Brazil wiring devices and product installation options.

Chile-Devices

CHILE 10 AMPERE, 16 AMPERE 250 VOLT, IP20, IP44, IP55, IP66 RATED WIRING DEVICES.
Notes:
* Chile, Argentina, Brazil, European, American, International plugs, power cords, outlets, GFCI sockets, power strips, plug adapters for all South America countries are listed below in related products. Scroll down to view.

DIN-RAIL-MOUNT-OUTLETS

EUROPEAN,INTERNATIONAL, AMERICAN MODULAR DIN RAIL MOUNT, PANEL MOUNT POWER OUTLETS, SOCKETS, RECEPTACLES, GFCI / RCD / RCBO CIRCUIT BREAKERS, USB SOCKETS, SWITCHES, RJ45 /CAT6 JACKS, INDICATOR / PILOT LIGHTS.
Notes:
*DIN rail mount option: Use DIN rail mount bracket #79595X45 together with receptacle outlets, power sockets and electrical devices in our modular devices range. Scroll down and view in "related products or visit Modular Devices
*Weatherproof DIN rail mount option: Use #70125-DIN din rail bracket and back box #70125 together with weatherproof flip lid receptacles. Visit Weatherproof Din Rail Mount Outlets
*Additional mounting options: Modular Devices also mount on American 2x4, 4x4 wall boxes, weatherproof enclosures, covers rated IP44, IP54, IP66, IP68 available. Visit Modular Devices

Flanged-AC-Inlets----Flanged-AC-Outlets

NEMA UL / CSA, IEC 60309, IEC 60320, EUROPEAN SCHUKO, UNITED KINGDOM, AUSTRALIAN, INTERNATIONAL FLANGED AC POWER INLETS, FLANGED AC OUTLETS, SOCKETS.
Notes:
* Scroll down to related products and view our listing of flanged inlets, flanged outlets for all countries of the world.

Gulf-States-Devices

GULF STATES, 13 AMPERE 250 VOLT SASO 2203 TYPE G PLUGS, CONNECTORS, OUTLETS, POWER CORDS, GFCI SOCKETS, POWER STRIPS, PLUG ADAPTERS, WEATHERPROOF ENCLOSURES, WALL BOXES.
Notes:
* Gulf States products are individually listed below in related products.
* Scroll down in related products to view and select all Gulf State wiring devices and product installation options.

HDPT13B-01

PERMAPLUG HDPT13B-01 PLUG. UK, BRITISH PLUG, 13A-250V, TYPE G PLUG, 13 AMPERE FUSE (BS1362, SS167), (UK1-13P), REWIREABLE RUBBER IMPACT RESISTANT ANGLE PLUG. BLACK.
BSI APPROVED.
Notes:
* Max cord O.D. = 11mm (0.433").

K2747WHI

MK LOGIC PLUS K2747WHI, BRITISH, UNITED KINGDOM 13A-250V DUPLEX OUTLET (86mmX146mm SIZE), (UK1-13R), BS 1363 TYPE G SOCKETS, DOUBLE POLE ON/OFF SWITCHES, SHUTTERED CONTACTS. WHITE.
Notes:
* Weatherproof Cover available, IP44 Rated # 74790-DX.
* Weatherproof enclosure available, IP66 Rated # 74790-B2.
* European wall boxes. # 72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED, 77190-D, series.

K2757WHI

MK LOGIC PLUS K2747WHI, BRITISH, UNITED KINGDOM 13A-250V OUTLET (86mmX86mm Size), BS 1363 TYPE G SOCKET (UK1-13R), ON/OFF DOUBLE POLE SWITCH, SHUTTERED CONTACTS. WHITE.
Notes:
* AMBIENT OPERATING TEMPERATURE: –5°C to +40°C
* IP RATING: IP2XD
* TERMINAL CAPACITY: Live, neutral & earth 3 x 2.5mm²,4mm²
* Weatherproof cover available # 74790-A (IP55 rated), Cover accepts & closes over down angle plugs (Not all plug variations).
* Weatherproof enclosure available # 74790-B1 (IP66 rated), Cover closes & locks over down angle plugs (Not all plug variations).
* European wall boxes. Use # 72350X47D, # 72350X35D, # 72350-F, # 72360, # 72360-RED.

LDSDTESTFILE

SAT TEST ARGENTINA 10A-250V IRAM 1073 TYPE I (AR1-10R) MODULAR OUTLET, 45mmX45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

Modular-Electrical-Devices

INTERNATIONAL EUROPEAN MODULAR ELECTRICAL WIRING DEVICES AND ACCESSORIES.

Saudi-Arabia-Devices

SAUDI ARABIA 13 AMPERE 250 VOLT SASO 2203 TYPE G PLUGS, CONNECTORS, OUTLETS, POWER CORDS, GFCI SOCKETS, POWER STRIPS, PLUG ADAPTERS, WEATHERPROOF ENCLOSURES, WALL BOXES. SASO APPROVED / CERTIFIED.
Notes:
* Saudi Arabia products listed below in related products.
* Scroll down to related products to view all Saudi Arabia wiring devices and product installation options.

South-America-Devices

SOUTH AMERICA 10 AMPERE, 16 AMPERE 250 VOLT, IP20, IP44, IP55, IP66 RATED WIRING DEVICES.
Notes:
* Argentina, Brazil, Chile, European, American, International plugs, power cords, outlets, GFCI sockets, outlet strips, plug adapters for all South America countries are listed below in related products. Scroll down to view.

Thailand-Asia-Pacific-Region-Devices

THAILAND-ASIA-PACIFIC REGION INTERNATIONAL TYPE A, B, C, E ,F, L, J, O PLUGS, OUTLETS, GFCI / RCD SOCKETS, PDU POWER STRIPS, POWER CORDS, PLUG ADAPTERS. UNIVERSAL MULTI-CONFIGURATION OUTLETS, SOCKETS, MODULAR OUTLETS, PLUGS, PLUG ADAPTERS. OUTLETS ACCEPT INTERNATIONAL PLUGS, AMERICAN PLUGS AND POWER CORDS.

WIRING ACCESSORIES FOR THAILAND, SOUTH AMERICA, ASIA, INDONESIA, PAKISTAN, PHILIPPINES, BANGLADESH, VIETNAM, MALAYSIA, CAMBODIA, CHINA, INDIA, SINGAPORE, SOUTH AMERICA COUNTRIES, PACIFIC REGION COUNTRIES.

TRU-LOCK-SYSTEM

NOTE: TRU-LOCK IEC 60320 INTEGRATED COMPONENT LOCKING SYSTEM. IEC 60320 C-13, C-19 Locking Power Strips, C-13 Locking Connectors, C-13 Locking Power Outlets, C-13, C-14, C-19, C-20, NEMA L5-15, L6-15, L5-20, L6-20, L5-30, L6-30, IEC 60309 (6h) (4h) Locking Power Cords.
Call Application Specialist for assistance.

TYPE-C-CONNECTORS

TYPE C Connectors are used in the following Countries:
Primary Countries known for using TYPE C connectors are Austria, Belgium, Brazil, Chile, Denmark, Germany, Finland, Greece, Greenland, France, Italy, Israel, Netherlands, Norway, Philippines, Poland, Sweden, Switzerland, Thailand, Turkey, Thailand, Vietnam.
Additional Countries that use TYPE C connectors are Afghanistan, Albania, Algeria, Andorra, Angola, Argentina, Armenia, Azerbaijan, Bangladesh, Belarus, Benin, Bolivia, Bosnia & Herzegovina, Botswana, Bulgaria, Burkina Faso, Burundi, Cameroon, Canary Islands, Cape Verde, Central African Republic, Chad, Channel Islands, Comoros, Congo - Democratic Republic, Congo - Republic of the, Croatia, Czech Republic, Djibouti, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Faroe Islands, French Guiana, French Polynesia, Gabon, Gaza Strip, Georgia, Gibraltar, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ivory Coast, Jordan, Kazakhstan, Korea - North, Korea - South, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Libya, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Mali - Republic of, Martinique, Mauritania, Mauritius, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Myanmar, Namibia, Nepal, Netherlands Antilles, New Caledonia, Niger, Norway, Oman, Pakistan, Paraguay, Peru, Portugal, Reunion, Romania, Russia, Rwanda, San Marino, São Tomé & Principe, Senegal, Serbia, Slovakia, Slovenia, Somalia, South Africa, Spain, Sri Lanka, Sudan, Suriname, Swaziland, Syria, Tajikistan, Togo, Tunisia, Turkmenistan, Ukraine, Uruguay, Uzbekistan, Zambia.

TYPE-C-OUTLETS

TYPE C Outlets are used in the following Countries:
Primary Countries known for using TYPE C outlets are Austria, Belgium, Brazil, Chile, Denmark, Germany, Finland, Greece, Greenland, France, Italy, Israel, Netherlands, Norway, Philippines, Poland, Sweden, Switzerland, Thailand, Turkey, Thailand, Vietnam.
Additional Countries that use TYPE C outlets are Afghanistan, Albania, Algeria, Andorra, Angola, Argentina, Armenia, Azerbaijan, Bangladesh, Belarus, Benin, Bolivia, Bosnia & Herzegovina, Botswana, Bulgaria, Burkina Faso, Burundi, Cameroon, Canary Islands, Cape Verde, Central African Republic, Chad, Channel Islands, Comoros, Congo - Democratic Republic, Congo - Republic of the, Croatia, Czech Republic, Djibouti, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Faroe Islands, French Guiana, French Polynesia, Gabon, Gaza Strip, Georgia, Gibraltar, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ivory Coast, Jordan, Kazakhstan, Korea - North, Korea - South, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Libya, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Mali - Republic of, Martinique, Mauritania, Mauritius, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Myanmar, Namibia, Nepal, Netherlands Antilles, New Caledonia, Niger, Norway, Oman, Pakistan, Paraguay, Peru, Portugal, Reunion, Romania, Russia, Rwanda, San Marino, São Tomé & Principe, Senegal, Serbia, Slovakia, Slovenia, Somalia, South Africa, Spain, Sri Lanka, Sudan, Suriname, Swaziland, Syria, Tajikistan, Togo, Tunisia, Turkmenistan, Ukraine, Uruguay, Uzbekistan, Zambia.

TYPE-C-PLUGS

TYPE C Plugs are used in the following Countries:
Primary Countries known for using TYPE C plugs are Austria, Belgium, Brazil, Chile, Denmark, Germany, Finland, Greece, Greenland, France, Italy, Israel, Netherlands, Norway, Philippines, Poland, Sweden, Switzerland, Thailand, Turkey, Thailand, Vietnam.
Additional Countries that use TYPE C plugs are Afghanistan, Albania, Algeria, Andorra, Angola, Argentina, Armenia, Azerbaijan, Bangladesh, Belarus, Benin, Bolivia, Bosnia & Herzegovina, Botswana, Bulgaria, Burkina Faso, Burundi, Cameroon, Canary Islands, Cape Verde, Central African Republic, Chad, Channel Islands, Comoros, Congo - Democratic Republic, Congo - Republic of the, Croatia, Czech Republic, Djibouti, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Faroe Islands, French Guiana, French Polynesia, Gabon, Gaza Strip, Georgia, Gibraltar, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ivory Coast, Jordan, Kazakhstan, Korea - North, Korea - South, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Libya, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Mali - Republic of, Martinique, Mauritania, Mauritius, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Myanmar, Namibia, Nepal, Netherlands Antilles, New Caledonia, Niger, Norway, Oman, Pakistan, Paraguay, Peru, Portugal, Reunion, Romania, Russia, Rwanda, San Marino, São Tomé & Principe, Senegal, Serbia, Slovakia, Slovenia, Somalia, South Africa, Spain, Sri Lanka, Sudan, Suriname, Swaziland, Syria, Tajikistan, Togo, Tunisia, Turkmenistan, Ukraine, Uruguay, Uzbekistan, Zambia.
* Additional Type C Electrical Devices:
* Type C Connectors
* Type C Outlets
* Type C Power Cords
* Type C Power Strips
* Type C Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-D-CONNECTORS

TYPE D Connectors are used in the following Countries:
Primary Country known for using TYPE D connectors is Afghanistan, India, South Africa.
Additional Countries that use TYPE D connectors are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland.
* Additional Type D Electrical Devices:
* Type D Plugs
* Type D Outlets
* Type D Power Cords
* Type D Power Strips
* Type D Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-D-OUTLETS

TYPE D Outlets are used in the following Countries:
Primary Country known for using TYPE D outlets is Afghanistan, India, South Africa.
Additional Countries that use TYPE D outlets are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland.
* Additional Type D Electrical Devices:
* Type D Plugs
* Type D Connectors
* Type D Power Cords
* Type D Power Strips
* Type D Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-D-PLUGS

TYPE D Plugs are used in the following Countries:
Primary Country known for using TYPE D plugs is Afghanistan, India, South Africa.
Additional Countries that use TYPE D plugs are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland
* Additional Type D Electrical Devices:
* Type D Connectors
* Type D Outlets
* Type D Power Cords
* Type D Power Strips
* Type D Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-E-CONNECTORS

TYPE E Connectors are used in the following Countries:
Primary Country known for using TYPE E connectors is Belgium, France, Poland, Slovakia.
Additional Countries that use TYPE E connectors are Algeria, Benin, Burundi, Cameroon, Central African Republic, Comoros, Congo - Democratic Republic, Congo - Republic of the, Czech Republic, Djibouti, Equatorial Guinea, Ethiopia, French Guiana, French Polynesia, Gabon, Guadeloupe, Ivory Coast, Madagascar, Mali - Republic of, Martinique, Monaco, Mongolia, Morocco, Reunion, Senegal, Somalia, Syria, Togo, Tunisia.
* Additional Type E Electrical Devices:
* Type E Plugs
* Type E Outlets
* Type E Power Cords
* Type E Power Strips
* Type E Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-E-OUTLETS

TYPE E Outlets are used in the following Countries:
Primary Country known for using TYPE E outlets is Belgium, France, Poland, Slovakia.
Additional Countries that use TYPE E outlets are Algeria, Benin, Burundi, Cameroon, Central African Republic, Comoros, Congo - Democratic Republic, Congo - Republic of the, Czech Republic, Djibouti, Equatorial Guinea, Ethiopia, French Guiana, French Polynesia, Gabon, Guadeloupe, Ivory Coast, Madagascar, Mali - Republic of, Martinique, Monaco, Mongolia, Morocco, Reunion, Senegal, Somalia, Syria, Togo, Tunisia.
* Additional Type E Electrical Devices:
* Type E Plugs
* Type E Connectors
* Type E Power Cords
* Type E Power Strips
* Type E Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-E-PLUGS

TYPE E Plugs are used in the following Countries:
Primary Country known for using TYPE E plugs is Belgium, France, Poland, Slovakia.
Additional Countries that use TYPE E plugs are Algeria, Benin, Burundi, Cameroon, Central African Republic, Comoros, Congo - Democratic Republic, Congo - Republic of the, Czech Republic, Djibouti, Equatorial Guinea, Ethiopia, French Guiana, French Polynesia, Gabon, Guadeloupe, Ivory Coast, Madagascar, Mali - Republic of, Martinique, Monaco, Mongolia, Morocco, Reunion, Senegal, Somalia, Syria, Togo, Tunisia.
* Additional Type E Electrical Devices:
* Type E Connectors
* Type E Outlets
* Type E Power Cords
* Type E Power Strips
* Type E Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-F-CONNECTORS

TYPE F Connectors are used in the following Countries:
Primary Country known for using TYPE F connectors is Austria, Egypt, Finland, Germany, Greece, Hungary, Iceland, Indonesia, Korea, Netherlands, Norway, Portugal, Slovenia, Spain, Sweden, Turkey, Ukraine, Vietnam.
Additional Countries that use TYPE F connectors are Albania, Andorra, Angola, Armenia, Azerbaijan, Belarus, Bosnia & Herzegovina, Bulgaria, Cape Verde, Chad, Croatia, Eritrea, Estonia, Georgia, Guinea, Guinea-Bissau, Iran, Jordan, Kazakhstan, Kyrgyzstan, Laos, Latvia, Lithuania, Luxembourg, Macedonia, Mauritania, Moldova, Montenegro, Netherlands Antilles, New Caledonia, Niger, Paraguay, Romania, Russia, San Marino, São Tomé & Principe, Serbia, Suriname, Tajikistan, Turkmenistan, Uzbekistan.
* Additional Type F Electrical Devices:
* Type F Plugs
* Type F Outlets
* Type F Power Cords
* Type F Power Strips
* Type F Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-F-OUTLETS

TYPE F Outlets are used in the following Countries:
Primary Country known for using TYPE F outlets is Austria, Egypt, Finland, Germany, Greece, Hungary, Iceland, Indonesia, Korea, Netherlands, Norway, Portugal, Slovenia, Spain, Sweden, Turkey, Ukraine, Vietnam.
Additional Countries that use TYPE F outlets are Albania, Andorra, Angola, Armenia, Azerbaijan, Belarus, Bosnia & Herzegovina, Bulgaria, Cape Verde, Chad, Croatia, Eritrea, Estonia, Georgia, Guinea, Guinea-Bissau, Iran, Jordan, Kazakhstan, Kyrgyzstan, Laos, Latvia, Lithuania, Luxembourg, Macedonia, Mauritania, Moldova, Montenegro, Netherlands Antilles, New Caledonia, Niger, Paraguay, Romania, Russia, San Marino, São Tomé & Principe, Serbia, Suriname, Tajikistan, Turkmenistan, Uzbekistan.
* Additional Type F Electrical Devices:
* Type F Plugs
* Type F Connectors
* Type F Power Cords
* Type F Power Strips
* Type F Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-F-PLUGS

TYPE F Plugs are used in the following Countries:
Primary Country known for using TYPE F plugs is Austria, Egypt, Finland, Germany, Greece, Hungary, Iceland, Indonesia, Korea, Netherlands, Norway, Portugal, Slovenia, Spain, Sweden, Turkey, Ukraine, Vietnam.
Additional Countries that use TYPE F plugs are Albania, Andorra, Angola, Armenia, Azerbaijan, Belarus, Bosnia & Herzegovina, Bulgaria, Cape Verde, Chad, Croatia, Eritrea, Estonia, Georgia, Guinea, Guinea-Bissau, Iran, Jordan, Kazakhstan, Kyrgyzstan, Laos, Latvia, Lithuania, Luxembourg, Macedonia, Mauritania, Moldova, Montenegro, Netherlands Antilles, New Caledonia, Niger, Paraguay, Romania, Russia, San Marino, São Tomé & Principe, Serbia, Suriname, Tajikistan, Turkmenistan, Uzbekistan.
* Additional Type F Electrical Devices:
* Type F Connectors
* Type F Outlets
* Type F Power Cords
* Type F Power Strips
* Type F Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-G-CONNECTORS

TYPE G Connectors are used in the following Countries:
Primary Countries known for using TYPE G connectors is the United Kingdom, Great Britain, England, Scotland, Wales, Ireland, Northern Ireland.
Additional Countries that use TYPE G connectors are Bahrain, Bhutan, Brunei, Burma, Cambodia, Cyprus, Dominica, England, Falkland Islands, Islas Malvinas, Gambia, Ghana, Gibraltar, Grenada, Hong Kong, Iraq, Kenya, Kuwait, Lebanon, Macau, Malawi, Malaysia, Maldives, Malta, Mauritius, Myanmar, Nigeria, Oman, Qatar, Saint Helena, Saint Kitts-Nevis, Saint Lucia, Saint Vincent, Saudi Arabia, Seychelles, Sierra Leone, Singapore, Tanzania, Uganda, United Arab Emirates, Yemen, Zambia, Zimbabwe
* Additional Type G Electrical Devices:
* Type G Plugs
* Type G Outlets
* Type G Power Cords
* Type G Power Strips
* Type G Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-G-OUTLETS

TYPE G Outlets are used in the following Countries:
Primary Countries known for using TYPE G outlets is the United Kingdom, Great Britain, England, Scotland, Wales, Ireland, Northern Ireland.
Additional Countries that use TYPE G outlets are Bahrain, Bhutan, Brunei, Burma, Cambodia, Cyprus, Dominica, England, Falkland Islands, Islas Malvinas, Gambia, Ghana, Gibraltar, Grenada, Hong Kong, Iraq, Kenya, Kuwait, Lebanon, Macau, Malawi, Malaysia, Maldives, Malta, Mauritius, Myanmar, Nigeria, Oman, Qatar, Saint Helena, Saint Kitts-Nevis, Saint Lucia, Saint Vincent, Saudi Arabia, Seychelles, Sierra Leone, Singapore, Tanzania, Uganda, United Arab Emirates, Yemen, Zambia, Zimbabwe
* Additional Type G Electrical Devices:
* Type G Plugs
* Type G Connectors
* Type G Power Cords
* Type G Power Strips
* Type G Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-G-PLUGS

TYPE G Plugs are used in the following Countries:
Primary Countries known for using TYPE G plugs is the United Kingdom, Great Britain, England, Scotland, Wales, Ireland, Northern Ireland.
Additional Countries that use TYPE G plugs are Bahrain, Bhutan, Brunei, Burma, Cambodia, Cyprus, Dominica, England, Falkland Islands, Islas Malvinas, Gambia, Ghana, Gibraltar, Grenada, Hong Kong, Iraq, Kenya, Kuwait, Lebanon, Macau, Malawi, Malaysia, Maldives, Malta, Mauritius, Myanmar, Nigeria, Oman, Qatar, Saint Helena, Saint Kitts-Nevis, Saint Lucia, Saint Vincent, Saudi Arabia, Seychelles, Sierra Leone, Singapore, Tanzania, Uganda, United Arab Emirates, Yemen, Zambia, Zimbabwe
* Additional Type G Electrical Devices:
* Type G Connectors
* Type G Outlets
* Type G Power Cords
* Type G Power Strips
* Type G Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-H-CONNECTORS

TYPE H Connectors are used in the following Countries:
Primary Country known for using TYPE H connectors is Israel.
Additional Countries that use TYPE H plugs is Gaza Strip.
* Additional Type H Electrical Devices:
* Type H Plugs
* Type H Outlets
* Type H Power Cords
* Type H Power Strips
* Type H Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-H-OUTLETS

TYPE H Outlets are used in the following Countries:
Primary Country known for using TYPE H outlets is Israel.
Additional Countries that use TYPE H outlets is Gaza Strip.
* Additional Type H Electrical Devices:
* Type H Plugs
* Type H Connectors
* Type H Power Cords
* Type H Power Strips
* Type H Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-H-PLUGS

TYPE H Plugs are used in the following Countries:
Primary Country known for using TYPE H plugs is Israel.
Additional Countries that use TYPE H plugs is the Gaza Strip.
* Additional Type H Electrical Devices:
* Type H Connectors
* Type H Outlets
* Type H Power Cords
* Type H Power Strips
* Type H Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-I-CONNECTORS

TYPE I Connectors are used in the following Countries:
Primary Country known for using TYPE I connectors is the Argentina, Australia, China, New Zealand.
Additional Countries that use TYPE I connectors are Fiji, Kiribati, Nauru, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Uruguay, Vanuatu.
* Additional Type I Electrical Devices:
* Type I Plugs
* Type I Outlets
* Type I Power Cords
* Type I Power Strips
* Type I Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-I-OUTLETS

TYPE I Outlets are used in the following Countries:
Primary Country known for using TYPE I Outlets is the Argentina, Australia, China, New Zealand.
Additional Countries that use TYPE I outlets are Fiji, Kiribati, Nauru, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Uruguay, Vanuatu.
* Additional Type I Electrical Devices:
* Type I Plugs
* Type I Connectors
* Type I Power Cords
* Type I Power Strips
* Type I Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-I-PLUGS

TYPE I Plugs are used in the following Countries:
Primary Country known for using TYPE I plugs is the Argentina, Australia, China, New Zealand.
Additional Countries that use TYPE I plugs are Fiji, Kiribati, Nauru, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Uruguay, Vanuatu.
* Additional Type I Electrical Devices:
* Type I Connectors
* Type I Outlets
* Type I Power Cords
* Type I Power Strips
* Type I Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-J-CONNECTORS

TYPE J Connectors are used in the following Countries:
Primary Country known for using TYPE J connectors is Switzerland.
Additional Countries that use TYPE J connectors are Liechtenstein, Rwanda.
* Additional Type J Electrical Devices:
* Type J Plugs
* Type J Outlets
* Type J Power Cords
* Type J Power Strips
* Type J Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-J-OUTLETS

TYPE J Outlets are used in the following Countries:
Primary Country known for using TYPE J outlets is Switzerland.
Additional Countries that use TYPE J outlets are Liechtenstein, Rwanda.
* Additional Type J Electrical Devices:
* Type J Plugs
* Type J Connectors
* Type J Power Cords
* Type J Power Strips
* Type J Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-J-PLUGS

TYPE J Plugs are used in the following Countries:
Primary Country known for using TYPE J plugs is Switzerland.
Additional Countries that use TYPE J plugs are Liechtenstein, Rwanda.
* Additional Type J Electrical Devices:
* Type J Connectors
* Type J Outlets
* Type J Power Cords
* Type J Power Strips
* Type J Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-K-CONNECTORS

TYPE K Connectors are used in the following Countries:
Primary Country known for using TYPE K connectors is Denmark.
Additional Countries that use TYPE K plugs are Greenland and Faroe Islands.
* Additional Type K Electrical Devices:
* Type K Plugs
* Type K Outlets
* Type K Power Cords
* Type K Power Strips
* Type K Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-K-OUTLETS

TYPE K Outlets are used in the following Countries:
Primary Country known for using TYPE K outlets is Denmark.
Additional Countries that use TYPE K outlets are Greenland and Faroe Islands.
* Additional Type K Electrical Devices:
* Type K Plugs
* Type K Connectors
* Type K Power Cords
* Type K Power Strips
* Type K Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-K-PLUGS

TYPE K Plugs are used in the following Countries:
Primary Country known for using TYPE K plugs is Denmark.
Additional Countries that use TYPE K plugs are Greenland and Faroe Islands.
* Additional Type K Electrical Devices:
* Type K Connectors
* Type K Outlets
* Type K Power Cords
* Type K Power Strips
* Type K Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-L-CONNECTORS

TYPE L Connectors are used in the following Countries:
Primary Country known for using TYPE L connectors is Italy.
Additional Countries that use TYPE L connectors are Chile, Libya.
* Additional Type L Electrical Devices:
* Type L Plugs
* Type L Outlets
* Type L Power Cords
* Type L Power Strips
* Type L Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-L-OUTLETS

TYPE L Outlets are used in the following Countries:
Primary Country known for using TYPE L outlets is Italy.
Additional Countries that use TYPE L outlets are Chile, Libya.
* Additional Type L Electrical Devices:
* Type L Plugs
* Type L Connectors
* Type L Power Cords
* Type L Power Strips
* Type L Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-L-PLUGS

TYPE L Plugs are used in the following Countries:
Primary Country known for using TYPE L plugs is Italy.
Additional Countries that use TYPE L plugs are Chile, Libya.
* Additional Type L Electrical Devices:
* Type L Connectors
* Type L Outlets
* Type L Power Cords
* Type L Power Strips
* Type L Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-M-CONNECTORS

TYPE M Connectors are used in the following Countries:
Primary Country known for using TYPE M connectors is Afghanistan, India, South Africa.
Additional Countries that use TYPE M connectors are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland.
* Additional Type M Electrical Devices:
* Type M Plugs
* Type M Outlets
* Type M Power Cords
* Type M Power Strips
* Type M Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-M-OUTLETS

TYPE M Outlets are used in the following Countries:
Primary Country known for using TYPE M outlets is Afghanistan, India, South Africa.
Additional Countries that use TYPE M outlets are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland.
* Additional Type M Electrical Devices:
* Type M Plugs
* Type M Connectors
* Type M Power Cords
* Type M Power Strips
* Type M Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-M-PLUGS

TYPE M Plugs are used in the following Countries:
Primary Country known for using TYPE M plugs is Afghanistan, India, South Africa.
Additional Countries that use TYPE M plugs are Bangladesh, Botswana, Lesotho, Mozambique, Namibia, Nepal, Pakistan, Sri Lanka, Sudan, Swaziland.
* Additional Type M Electrical Devices:
* Type M Connectors
* Type M Outlets
* Type M Power Cords
* Type M Power Strips
* Type M Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-N-CONNECTORS

TYPE N Connectors are used in the following Countries:
Primary Country known for using TYPE N connectors is Brazil.
Additional Country that uses TYPE N connectors is South Africa.
* Additional Type N Electrical Devices:
* Type N Plugs
* Type N Outlets
* Type N Power Cords
* Type N Power Strips
* Type N Adapters
* Worldwide Selector. All Countries by TYPE.
View examples of TYPE N connectors below.

TYPE-N-OUTLETS

TYPE N Outlets are used in the following Countries:
Primary Country known for using TYPE N outlets is Brazil.
Additional Country that uses TYPE N outlets is South Africa.
* Additional Type N Electrical Devices:
* Type N Plugs
* Type N Connectors
* Type N Power Cords
* Type N Power Strips
* Type N Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-N-PLUGS

TYPE N Plugs are used in the following Countries:
Primary Country known for using TYPE N plugs is Brazil.
Additional Country that uses TYPE N plugs is South Africa.
* Additional Type N Electrical Devices:
* Type N Connectors
* Type N Outlets
* Type N Power Cords
* Type N Power Strips
* Type N Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-O-CONNECTORS

TYPE O Connectors are used in the following Country:
Primary Country known for using TYPE O connectors is Thailand.
* Additional Type O Electrical Devices:
* Type O Plugs
* Type O Outlets
* Type O Power Cords
* Type O Power Strips
* Type O Adapters
* Worldwide Selector. All Countries by TYPE.

TYPE-O-OUTLETS

TYPE O Outlets are used in the following Country:
Primary Country known for using TYPE O outlets is Thailand.
* Additional Type O Electrical Devices:
* Type O Plugs
* Type O Connectors
* Type O Power Cords
* Type O Power Strips
* Type O Adapters
* Worldwide Selector. View all Countries by TYPE.

TYPE-O-PLUGS

TYPE O Plugs are used in the following Country:
Primary Country known for using TYPE O plugs is Thailand.
* Additional Type O Electrical Devices:
* Type O Connectors
* Type O Outlets
* Type O Power Cords
* Type O Power Strips
* Type O Adapters
* Worldwide Selector. All Countries by TYPE.

UK-3AMP-5AMP-10AMP-13AMP-FUSES

BRITISH, UK, UNITED KINGDOM 3 AMP, 5 AMP, 10 AMP, 13 AMP - 250 VOLT BS 1362 FUSES FOR BRITISH BS 1363A PLUGS, POWER CORDS, OUTLET STRIPS.

WONPRO-UNIVERSAL-DEVICES

WONPRO UNIVERSAL MULTI-CONFIGURATION INTERNATIONAL, EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, NEMA, OUTLETS, SOCKETS, PDU POWER STRIPS, POWER CORDS, PLUG ADAPTERS.
Notes:
* Modular devices mount on American 2x4, 4x4 wall boxes or panel mount.
* Wall plates / mounting frames, GFCI / RCD outlets, PDU power strips, wall boxes, plug adapters are listed below in related products. Scroll down to view.

ZA-CONNECTORS

ZA Connectors are used in South Africa.
* Additional ZA Electrical Devices:
* ZA Plugs
* ZA Outlets
* ZA Power Cords
* ZA Power Strips
* ZA Adapters
* Worldwide Selector. All Countries by TYPE.
View examples of ZA connectors below.

ZA-OUTLETS

ZA Outlets are used in South Africa
* Additional ZA Electrical Devices:
* ZA Plugs
* ZA Connectors
* ZA Power Cords
* ZA Power Strips
* ZA Adapters
* Worldwide Selector. View all Countries by TYPE.

ZA-PLUGS

ZA Plugs are used in South Africa.
* Additional ZA Electrical Devices:
* ZA Connectors
* ZA Outlets
* ZA Power Cords
* ZA Power Strips
* ZA Adapters
* Worldwide Selector. All Countries by TYPE.
