Part NumberL1730-FO
Description: 30 AMPERE-600 VOLT, 3 PHASE (X,Y,Z,+G) NEMA L17-30R LOCKING FLANGED PANEL MOUNT POWER OUTLET, 3 POLE-4 WIRE GROUNDING (3P+E), IMPACT RESISTANT NYLON BODY, SPECIFICATION GRADE. WHITE.
Notes:
* Weatherproof / dust proof applications use #5205-WSC cover or #79485 cover.
* Terminals accept 14AWG-8AWG. Max torque = 12 in. lbs. Temp. range = -40°C to +75°C.
** NEMA Panel Mount Outlets with same mounting design listed below.
**NEMA L1420 Locking Outlet Part #L1420-FO, (20A-125/250V). Accepts L1420-P Plug.
**NEMA L1430 Locking Outlet Part #L1430-FO, (30A-125/250V). Accepts L1430-P Plug.
**NEMA L1520 Locking Outlet Part #L1520-FO, (20A-250V), 3 Phase). Accepts L1520-P Plug.
**NEMA L1530 Locking Outlet Part #L1530-FO, (30A-250V), 3 Phase). Accepts L1530-P Plug.
**NEMA L1620 Locking Outlet Part #L1620-FO, (20A-480V), 3 Phase). Accepts L1620-P Plug.
**NEMA L1630 Locking Outlet Part #L1630-FO, (30A-480V), 3 Phase). Accepts L1630-P Plug.

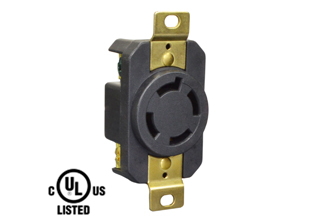

View: Optional panel mount design # L1530-R.
View: High Power NEMA Locking 20A- 30A (4 Pole / 5 Pole) Outlets & Inlets. NEMA Flanged Outlets & Inlets Guide
* Plugs, power cords, outlets, connectors, inlets are listed below in related products. Scroll down to view.
Approvals: FILE #E474924
Certifications: UL, CSA, REACH, RoHS3
Standards: NEMA ® WD-6 Compliant, UL 498, CSA C22.2 No. 42-10 R2015, NEMA L17-30R, ANSI C73
Technical Data:
View Technical Data Drawing: L1730-FO.pdf
Price & Avail: Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock
