INTERNATIONAL CONFIGURATIONS, INC.
International Wiring Accessories and Cord Sets
Telephone: 860-749-6380
Fax: 860-749-2985
E-mail: sales@internationalconfig.com
Part Number5366-X
Description: 20 AMPERE-125 VOLT (NEMA 5-20P) PLUG, IMPACT RESISTANT NYLON BODY, 2 POLE-3 WIRE GROUNDING (2P+E), SPECIFICATION GRADE. BLACK / WHITE. TERMINALS ACCEPT 18/3, 16/3, 14/3, 12/3 AWG SIZE CONDUCTORS. STRAIN RELIEF (CORD GRIP RANGE)= 0.300-.650 DIA..
Note: Plugs, Receptacles, Outlets, Power strips, Connectors, Inlets, Power Cords, Weatherproof Outlets, Plug Adapters are listed below in related products.
Scroll down to view.
Approvals: c(UL)us, (UL FILE # E474924)
Certifications: UL, CSA, RoHS
Standards: UL 498, CSA C22.2 No. 42, NEMA 5-20P, ANSI C73.12,
Data Sheet:
Dimensional Data Sheet
Associated Products # 1
View / Print

product data
Associated Products # 2
View / Print

product data
Related Products:

5366-X

20A-125V (NEMA 5-20P) PLUG, SPECIFICATION GRADE. BLACK / WHITE.
Note: Accepts 18/3-12/3 AWG Size Conductors. Strain Relief (Cord Grip Range) = 0.300-.650 Dia. .

5366-GFCI

GFCI PLUG, 20A-120V VOLT 60Hz, (NEMA 5-20P), 4-6 mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480. BLACK.
Note: Nema 5-15P (15A-125V) version available # 5266-GFCI).

5266-GFCI

GFCI PLUG, 15A-120V VOLT 60Hz, (NEMA 5-15P), 4-6 mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480. BLACK.
Note: Mates with Nema 5-15R (15A-125V) & Nema 5-20R (20A-125V) outlets.

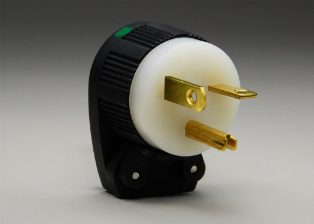

5366-SSAN

20 AMPERE-125 VOLT (NEMA 5-20P) ANGLE PLUG, SPECIFICATION GRADE. BLACK / WHITE.
Note: Accepts 18/3-12/3 AWG Size Conductors. Strain Relief (Cord Grip Range) = 0.300-.650 Dia. .

5765-BK

20A-125V (NEMA 5-20P) PLUG. BLACK.

5369-X

20A-125V (NEMA 5-20R) CONNECTOR, SPECIFICATION GRADE. BLACK / WHITE.
Note: Accepts 18/3-12/3 AWG Size Conductors. Strain Relief (Cord Grip Range) = 0.300-.650 Dia. .

5374-BK

20A-125V (NEMA 5-20R) IN-LINE CONNECTOR. BLACK.

5378-SS

20A-125V (NEMA 5-20P) FLANGED PANEL MOUNT POWER INLET, SPECIFICATION GRADE. WHITE.

5366-XHG

HOSPITAL GRADE PLUG, 20A-125V, NEMA 5-20P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5366-HGAN

HOSPITAL GRADE ANGLE PLUG, 20A-125V, NEMA 5-20P, GREEN DOT MEDICAL GRADE "CLEAR" POWER PLUG, IMPACT RESISTANT. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5369-XHG

HOSPITAL GRADE CONNECTOR, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL GRADE "CLEAR" POWER CONNECTOR. UL/CSA LISTED HOSPITAL GRADE. BLACK/CLEAR.

5342-I

20A-125V AMERICAN DUPLEX OUTLET (NEMA 5-20R). IVORY.

5342

20 AMPERE-125 VOLT AMERICAN DUPLEX OUTLET (NEMA 5-20R). BROWN.

8300-I

HOSPITAL GRADE DUPLEX RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL DUPLEX OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

93101

AMERICAN DUPLEX OUTLET WALL PLATE. STAINLESS STEEL.

92101

AMERICAN DUPLEX OUTLET WALL PLATE, NYLON. IVORY.

92101-BR

AMERICAN DUPLEX OUTLET WALL PLATE,NYLON. BROWN.

92101-WPV

AMERICAN DUPLEX OUTLET WEATHERPROOF COVER, VERTICAL MOUNT. GRAY.

92101-WPH

AMERICAN DUPLEX OUTLET WEATHERPROOF COVER, HORIZONTAL MOUNT. GRAY.

5351-I

20 AMPERE-125 VOLT (NEMA 5-20R) OUTLET. IVORY.

8301-I

HOSPITAL GRADE RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

93091

AMERICAN SINGLE OUTLET WALL PLATE. STAINLESS STEEL.

92091

AMERICAN SINGLE OUTLET WALL PLATE, NYLON. IVORY.

79410

WEATHER PROTECTIVE SINGLE OUTLET COVER, VERTICAL MOUNT, THERMOPLASTIC. GRAY.

92091-WPV

WEATHER PROTECTIVE SINGLE OUTLET METAL COVER, VERTICAL MOUNT, CORROSION RESISTANT FINISH. GRAY

5358-I

20A-125V (NEMA 5-20R) PANEL MOUNT OUTLET. IVORY.

5358-BLK

20A-125V NEMA 5-20R) PANEL MOUNT OUTLET. BLACK.

5358

20A-125V (NEMA 5-20R) PANEL MOUNT OUTLET. BROWN.

8384-I

HOSPITAL GRADE RECEPTACLE, 20A-125V, NEMA 5-20R/NEMA 5-15R, GREEN DOT MEDICAL GRADE PANEL MOUNT OUTLET. UL/CSA LISTED HOSPITAL GRADE. IVORY.

5379-SS

20A-125V (NEMA 5-20R) FLANGED PANEL MOUNT POWER OUTLET, SPECIFICATION GRADE. WHITE.

70050-BLK

20A-125V (NEMA 5-20R) IP44 OUTLET, PANEL OR WALL BOX MOUNT. BLACK.
Note: Stainless steel wall plates # 97120-BZ and # 97120-DBZ mounts outlet onto standard American 2X4 and 4X4 wall boxes.
Note: For panel mount use # 70127 back box.
Note: Outlet accepts 15A, 20A plugs (Nema 5-15P, Nema 5-20P).
Note: Not for use with # 70125 wall box.

70050-BLU

20A-125V (NEMA 5-20R) IP44 OUTLET, PANEL OR WALL BOX MOUNT. BLUE.
Note: Stainless steel wall plates # 97120-BZ and # 97120-DBZ mounts outlet onto standard American 2X4 and 4X4 wall boxes.
Note: For panel mount use # 70127 back box.
Note: Outlet accepts 15A, 20A plugs (Nema 5-15P, Nema 5-20P).
Note: Not for use with # 70125 wall box.

60520

AMERICA, CANADA (NEMA) 20A-125V (NEMA 5-20R) 6 OUTLET PDU POWER STRIP, "19" IN. VERTICAL RACK/SURFACE MOUNT, METAL ENCLOSURE, 2M (6FT.-6IN.) CORD. GRAY.

61520

AMERICA, CANADA (NEMA) 20A-125V (NEMA 5-20R) 6 OUTLET PDU POWER STRIP, "19" IN. VERTICAL RACK MOUNT, METAL ENCLOSURE, 2M (6FT.-6IN.) CORD. GRAY.

56526

JAPAN 20A-125V 6 OUTLET PDU POWER STRIP TYPE B (JA3-20R / NEMA 5-20R), 2.5M (8 FT.-2IN.) CORD. GRAY.

56526-LC

JAPAN 20A-125V 6 OUTLET PDU POWER STRIP TYPE B (JA3-20R / NEMA 5-20R). GRAY.

58206

UNIVERSAL EUROPEAN, UK, BRITISH, ITALY, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, EUROPEAN, AMERICAN (NEMA 5-15R, 6-15R, 5-20R, 6-20R), S. AMERICAN, ASIA, THAILAND, ISRAEL MULTI-CONFIGURATION 6 OUTLET, 13A-250V PDU POWER STRIP, 50/60Hz, "LOCKING TYPE" POWER INLET, SURGE PROTECTION, CIRCUIT BREAKER. IVORY.

58206-C14

UNIVERSAL EUROPEAN, UK, BRITISH, ITALY, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICAN, S. AMERICAN, ASIA, THAILAND, ISRAEL, EUROPEAN, AMERICAN NEMA 5-15R, 5-20R, 6-15R, 6-20R MULTI-CONFIGURATION 6 OUTLET, 13A-250V PDU POWER STRIP, IEC 60320 C-14 POWER INLET, 50/60Hz, SURGE PROTECTION, CIRCUIT BREAKER. IVORY.
52019

HORIZONTAL "19" INCH (2RU) RACK MOUNT PDU OUTLET STRIP MOUNTING PLATE. GRAY.

80520

15A-125V NEMA POWER CORD (NEMA 5-20P) PLUG, IEC 60320 C-13 CONNECTOR, 2.5M (8FT.-2IN.) LONG. BLACK.

80551

20A-125V NEMA POWER CORD (NEMA 5-20P ) PLUG, IEC 60320 C-19 CONNECTOR, 2.5M (8FT.-2IN.) LONG. BLACK.

80560

20A-125V NEMA 5-20 POWER SUPPLY CORD (NEMA 5-20P) PLUG, STRIPPED ENDS, 2.5M (8FT.-2IN.) LONG. BLACK.

80450

15A-125V DETACHABLE (14/3 AWG) CORD SET, NEMA 5-15P PLUG, IEC 60320 C-19 CONNECTOR, 2.5M (8FT.-2IN.) LONG. BLACK.

81415

15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG, SJTO, 105 DEGREE C, 2.5M (8FT. 2 IN.) LONG. BLACK.

81415-Y

15A-125V "Y" SPLITTER TYPE POWER CORD, NEMA 5-15P PLUG, TWO IEC 60320 C-13 CONNECTORS, 14/3 AWG, SJTO, 105 DEGREE C, 10 FT. LONG. BLACK.

81415-Y2M

15A-125V "Y" SPLITTER TYPE POWER CORD, NEMA 5-15P PLUG, TWO IEC 60320 C-13 CONNECTORS, 14/3 AWG, SJTO, 105 DEGREE C, 2 METERS (6FT.-7IN.) LONG. BLACK.

81400

10A-125V DETACHABLE CORD SET, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 2.5M (8FT.-2IN.) LONG. BLACK.

82950

AMERICAN 10A-125V POWER CORD, NEMA 5-15P TYPE B PLUG, IEC 60320 C-5 CONNECTOR, 1.8M (6 FT.) LONG. BLACK.

80900

AMERICAN 7.0A- 125V POWER CORD, NEMA 1-15P PLUG (2 POLE-2 WIRE), IEC 60320 C-7 CONECTOR, 1.8M (6.FT.) LONG. BLACK.

81440

POWER SUPPLYCORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, BLACK, 2.5 METERS, 10 AMPERE 125 VOLT

81450

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, BLACK, 2.5 METERS, 13 AMPERE 125 VOLT

81460

POWER SUPPLYCORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, BLACK, 2.5 METERS, 15 AMPERE 125 VOLT

82400

HOSPITAL GRADE POWER CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C13 CONNECTOR, SJTO 18/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

82460

HOSPITAL GRADE POWER CORD, 15A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P PLUG, IEC 60320 C19 CONNECTOR, SJTO 14/3 AWG. CORD (10FT.) LONG. UL/CSA HOSPITAL GRADE APPROVED. BLACK.

82470

HOSPITAL GRADE POWER SUPPLY CORD, 10A-125V, HOSPITAL GRADE GREEN DOT NEMA 5-15P "CLEAR" CORD PLUG, SJTO 18/3 AWG. 105 DEGREE C POWER CABLE, STRIPPED ENDS, (10FT.) LONG, COILED. UL/CSA HOSPITAL GRADE APPROVED. GRAY.

30130

NEMA 5-15P / EUROPEAN "SCHUKO" (EU1-16R) PLUG ADAPTER, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Note. Mates European CEE7/4, CEE7/7 Type E, F, C, plugs with Nema 5-15R (15A-125V) & Nema 5-20R (20A-125V) sockets, outlets, receptacles.

30180

UK, BRITISH, UNITED KINGDOM 13A-250V PLUG ADAPTER. MATES BRITISH, UK TYPE G BS1363A PLUGS (UK1-13P) TO NEMA 5-15R & NEMA 5-20R (125 VOLT) OUTLETS. WHITE.

30210

AUSTRALIAN, CHINA, ARGENTINA PLUG ADAPTER, 10 AMPERE-250 VOLT. MATES AUSTRALIAN AU1-10P, CHINA CH1-10P, ARGENTINA AR1-10P PLUGS WITH NEMA 5-15R, NEMA 5-20R (125 VOLT) OUTLETS. BLACK.

30250

UNIVERSAL AMERICA, CANADA (NEMA 5-15P) TYPE B PLUG ADAPTER. MATES EUROPEAN, BRITISH, UK, AUSTRALIA, NEMA, WORLDWIDE / INTERNATIONAL PLUGS WITH NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) OUTLETS. GRAY.

30110

NEMA 5-15R / EUROPEAN "SCHUKO" (EU1-16P) 250 VOLT PLUG ADAPTER, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.

30260

UNIVERSAL BRITISH, UNITED KINGDOM, UK 13A-250V TYPE G PLUG ADAPTER. MATES EUROPEAN, AUSTRALIA, NEMA, WORLDWIDE INTERNATIONAL PLUGS WITH BRITISH BS1363A (UK1-13R) OUTLETS. GRAY. NOTE: LISTED BELOW: COUNTRY SPECIFIC PLUG ADAPTERS & UNIVERSAL EUROPEAN, INTERNATIONAL, WORLDWIDE PLUG ADAPTERS FOR ALL COUNTRIES.

30220

AUSTRALIA, CHINA, ARGENTINA 10 AMPERE-250 VOLT PLUG ADAPTER, IMPACT RESISTANT. BLACK.

30200

UNIVERSAL AUSTRALIA, CHINA, ARGENTINA 10A-250V TYPE I PLUG ADAPTER. MATES EUROPEAN, BRITISH, UK, NEMA, WORLDWIDE INTERNATIONAL PLUGS WITH AUSTRALIA NZS 3112 (AU1-10R), CHINA GB 2099 (CH1-10R), IRAM 2073 (AR1-10R) OUTLETS. GRAY. NOTE: LISTED BELOW: COUNTRY SPECIFIC PLUG ADAPTERS & UNIVERSAL EUROPEAN, INTERNATIONAL, WORLDWIDE PLUG ADAPTERS FOR ALL COUNTRIES.

30235

UNIVERSAL IEC 60320 C-14 PLUG ADAPTER, 15A-125V, 10A-250V. MATES WORLDWIDE / INTERNATIONAL PLUGS WITH IEC 60320 C-13 OUTLETS AND POWER CORDS. GRAY.

30600

ADAPTER, 10A-250V, IEC 60320 C-14 PLUG, EUROPEAN CEE7/4 (EU1-16R) "SCHUKO" SOCKET, 12 INCHES LONG. BLACK.

30680

PLUG ADAPTER, IEC 60320 C-14 PLUG, NEMA 5-15R CONNECTOR,12 INCHES LONG. BLACK.

30401

ADAPTER, IEC 60320 C-14 PLUG, NEMA 5-15R CONNECTOR. MATES IEC 60320 C-13 CONNECTORS WITH NEMA NEMA 5-15P PLUGS & POWER CORDS, 10A-250V. BLACK.

30400

ADAPTER, AMERICAN (NEMA 5-15P) PLUG, IEC 60320 C-13 CONNECTOR, 10 AMPERE-125 VOLT, 2 POLE, 3 WIRE GROUNDING (2P+E). BLACK.
MATES IEC 60320 C-14 POWER CORDS & "Y TYPE SPLITTER CORDS WITH NEMA 5-15R (15A-125V & NEMA 5-20R (20A-125V) OUTLETS.

30401-A

ADAPTER (SPLITTER), IEC 60320 C-14 PLUG, TWO NEMA 5-15R CONNECTORS. MATES TWO NEMA 5-15P PLUGS OR POWER CORDS WITH IEC 60320 C-13 CONNECTOR, 10A-125V. BLACK.

30401-B

ADAPTER (SPLITTER), IEC 60320 C-14 PLUG, NEMA 5-15R CONNECTOR & IEC 60320 C-13 CONNECTOR. MATES NEMA 5-15P PLUGS & IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 CONNECTORS, 10A-125V. BLACK.

30400-A

ADAPTER (SPLITTER), NEMA 5-15P PLUG, TWO IEC 60320 C- 13 CONNECTORS. MATES TWO IEC 60320 C-14 PLUGS OR POWER CORDS WITH NEMA 5-15R OR NEMA 5-20R OUTLETS, 10A-125V. BLACK.

30400-B

ADAPTER (SPLITTER), NEMA 5-15P PLUG, ONE IEC 60320 C- 13 CONNECTOR & ONE NEMA 5-15R CONNECTOR. MATES IEC 60320 C-14 PLUG & NEMA 5-15P PLUG WITH NEMA 5-15R / NEMA 5-20R OUTLETS, 10A-125V. BLACK.

30404

ADAPTER (EXTENSION), IEC 60320 C-14 PLUG, IEC 60320 C-13 CONNECTOR. MATES IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 POWER CORDS, 10A-250V. BLACK.

30404-A

ADAPTER (SPLITTER), IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS. MATES ONE IEC 60320 C-13 CONNECTOR WITH TWO C-14 PLUGS, 10A-125V. BLACK.

30406

ADAPTER, IEC 60320 C-14 PLUG, IEC 60320 C-5 CONNECTOR. MATES IEC 60320 C-13 CONNECTORS & CORDS WITH IEC 60320 C-6 POWER INLETS, 10A-250V. BLACK.

30407

ADAPTER, IEC 60320 C-14 PLUG, IEC 60320 C-7 CONNECTOR. MATES IEC 60320 C-13 CONNECTORS WITH IEC 60320 C-8 POWER INLETS, 10A-250V. BLACK.

98226-Y

UNIVERSAL (UL, CSA, VDE, CCC) APPROVALS ) "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJTO, 105C, (8FT.-2IN.) (98") LONG. BLACK.

98226-Y18

UNIVERSAL (UL, CSA, VDE APPROVALS) "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJTO, 105C, 0.46M (1.5 FT.) (18") LONG. BLACK.

98226-Y72

UNIVERSAL (UL, CSA, VDE APPROVALS ) "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJTOW, 105C, 1.8M (6FT.) (79") LONG. BLACK.

98625-Y

"Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG / C-13 CONNECTORS, 2.5 M LONG. BLACK.

98625-Y120

"Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG / C-13 CONNECTORS, 10 FT. LONG. BLACK.

98625-Y180

UL/CSA LISTED "Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG/ C-13 CONNECTORS, 15 FT. LONG. BLACK.

30700

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJTO 105C, 12 INCHES LONG. BLACK.

30700x1M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105C, 1 METER LONG. BLACK.

30700x1.5m

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105C, 1.5 METER LONG. BLACK.

30700x2M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105C, 2 METER LONG. BLACK.

30700x2.5M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105C, 2.5 METER LONG. BLACK.

30700x10FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJTO 105C, 10 FEET LONG. BLACK.

30410

ADAPTER (SPLITTER), IEC 60320 C-20 PLUG, TWO C- 13 CONNECTORS, 10A-250V. MATES C-19 CONNECTOR WITH TWO IEC 60320 C-14 PLUGS OR POWER CORDS. BLACK.

30408

ADAPTER, NEMA 5-15P PLUG, IEC 60320 C-19 CONNECTOR, 15A-125V. MATES IEC 60320 C-20 PLUGS & POWER CORDS WITH NEMA 5-15R & NEMA 5-20R OUTLETS. BLACK.

30409

ADAPTER, NEMA 6-15P PLUG, IEC 60320 C-19 CONNECTOR, 15A-250V. MATES IEC 60320 C-20 PLUGS & POWER CORDS WITH NEMA 6-15R & NEMA 6-20R OUTLETS. BLACK.

31720

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-20 PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG SJTO 105C, 24 INCHES LONG. BLACK.

31680

PLUG ADAPTER, 15A-125V, IEC 60320 C-20 PLUG, NEMA 5-15R CONNECTOR. MATES NEMA 5-15P PLUGS WITH IEC 60320 C-19 OUTLETS / CONNECTORS. 12 INCHES LONG. BLACK.

31700

PLUG ADAPTER, 20A-125V, IEC 60320 C-20 PLUG, NEMA 5-20R CONNECTOR. MATES NEMA 5-20P & NEMA 5-15P PLUGS WITH IEC 60320 C-19 OUTLETS / CONNECTORS. 12 INCHES LONG. BLACK.

31600

IEC 60320 C-20 PLUG ADAPTER, 16A-250V. MATES IEC 60320 C-19 CONNECTOR / OUTLETS WITH EUROPEAN, GERMAN TYPE CEE7/7, CEE7/4 "SCHUKO" (EU1-16P) PLUGS, 12 INCHES LONG. BLACK.

5242-I

15A-125V (NEMA 5-15R) DUPLEX OUTLET. IVORY.

5342-I

20A-125V AMERICAN DUPLEX OUTLET (NEMA 5-20R). IVORY.

5642-I

15A-250V AMERICAN DUPLEX OUTLET (NEMA 6-15R). IVORY.
Note. Nema 6-15R outlets mate with Nema 6-15P (15A-250V) Power cords, plugs.

5862-I

20A-250V AMERICAN DUPLEX OUTLET (NEMA 6-20R / NEMA 6-15R). IVORY.
Note: Outlet accepts Nema 6-20P (20A-250V) & Nema 6-15P (15A-250V) plugs.

4700

15A-125V (NEMA L5-15R) DUPLEX LOCKING OUTLET (2P+E). BLACK.

4550

15A-250V (NEMA L6-15R) DUPLEX LOCKING OUTLET (2P+E). BLACK.

L520-R

20A-125V (NEMA L5-20R) LOCKING POWER RECEPTACLE (2P+E). BLACK.

L520-R

20A-125V (NEMA L5-20R) LOCKING POWER RECEPTACLE (2P+E). BLACK.

L530-R

30A-125V (NEMA L5-30R) LOCKING OUTLET (2P+E). BLACK.

L630-R

30A-250V (NEMA L6-30R) LOCKING OUTLET (2P+E). BLACK.

888-1216-NS

IEC 60309 (4H) PIN & SLEEVE PANEL MOUNT ANGLED RECEPTACLE OUTLET, 20A-120V (2P+E), SPLASH PROOF (IP44), 60mmX73mm C To C MOUNTING. YELLOW. UL, CSA, APPROVALS. PIN AND SLEEVE IEC 60309 BROCHURE.

888-1228-NS

IEC 60309 PIN & SLEEVE PANEL MOUNT ANGLED RECEPTACLE OUTLET, (4h), 30A-120V (2P+E), SPLASH PROOF (IP44). 60mmX73mm C To C MOUNTING. YELLOW. UL, CSA, APPROVALS. PIN AND SLEEVE IEC 60309 BROCHURE.

888-1217-NS

IEC 60309 (6H) PIN & SLEEVE ANGLED RECEPTACLE OUTLET, 20A/16A-220/250V (2P+E), SPLASH PROOF (IP44), CEE17, IEC309. UL, CSA & EUROPEAN OVE (UNIVERSAL APPROVALS). 60mmX73mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-1229-NS

IEC 60309 (6H) 30A/32 A-220/250V (2P+E) SPLASH PROOF (IP44) ANGLED PANEL MOUNT OUTLET, "UNIVERSAL APPROVALS", 73.5X60mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-560306

IEC 60309 (6H) 60A/63A-250V (2P+E) SPLASH PROOF (IP44) ANGLED PANEL/SURFACE MOUNT OUTLET, "UNIVERSAL APPROVALS". BLUE. NOTE:77mmX85mm C TO C MOUNTING. PIN AND SLEEVE IEC 60309 BROCHURE.

888-1239-NS

IEC 60309 (6H) 3 PHASE OUTLET, 30A-200/415V (C(UL)US), 32A- 220/380V, 240/415V (OVE), (3P+N+E) SPLASH PROOF (IP44) "UNIVERSAL" ANGLED PANEL MOUNT OUTLET. RED. NOTE: 73.5mmX60mm C TO C MOUNTING. PIN AND SLEEVE IEC 60309 BROCHURE.

888-129

IEC 60309 (6H) 3 PHASE OUTLET, 60A-380/415V (400 VOLT) (UL/CSA), 63A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) ANGLED FLANGED OUTLET, "UNIVERSAL APPROVALS". RED. NOTE:77X85mm C TO C MOUNTING. PIN AND SLEEVE IEC 60309 BROCHURE.

888-12108

IEC 60309 (6H) 3 PHASE OUTLET, 100A-380/415V (400 VOLT) (UL/CSA), 125A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) ANGLED OUTLET, "UNIVERSAL APPROVALS". RED. NOTE: 90mmX90mm C TO C MOUNTING. PIN AND SLEEVE IEC 60309 BROCHURE.
