Part Number5276-CD
Description: 15A-125V NEMA 5-15P PLUG, TYPE B, COMPACT DESIGN, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O outlets, Multi-Configuration outlets.
* Max. O.D. cable = 0.370".
* Terminals accept 18/3, 16/3, 14/3 conductors.
* Terminal screw torque = 14-18 in. lbs.
* Plugs, connectors, receptacles, power cords, power strips, weatherproof outlets are listed below in related products.
Approvals: UL, CSA
Certifications: RoHS
Standards: NEMA 5-15P, UL 498, ANSI C73.11
Technical Data:
View Technical Data Drawing: 5276-CD.pdf
Price & Avail: Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock
15A-125V NEMA 5-15P PLUG, <font color="yellow"> TYPE B</font>, COMPACT DESIGN, 2 POLE-3 WIRE GROUNDING (<font color="yellow">2P+E</font>). BLACK.

<br><font color="yellow">Notes: </font>

<br><font color="yellow">*</font> Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O outlets, Multi-Configuration outlets.

<br><font color="yellow">*</font> Max. O.D. cable = 0.370".
<br><font color="yellow">*</font> Terminals accept 18/3, 16/3, 14/3 conductors.
<br><font color="yellow">*</font> Terminal screw torque = 14-18 in. lbs.
<br><font color="yellow">*</font> Plugs, connectors, receptacles, power cords, power strips, weatherproof outlets are listed below in related products.
Scroll down to view
Related Products
Associated Products
View & Print

product data
Associated Products
View & Print

product data
Related Products:

5276-CD

15A-125V NEMA 5-15P PLUG, TYPE B, COMPACT DESIGN, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O outlets, Universal and Multi-Configuration outlets.
* Max. O.D. cable = 0.370".
* Terminals accept 18/3, 16/3, 14/3 conductors.
* Terminal screw torque = 14-18 in. lbs.

5277-BLK

15A-125V NEMA 1-15P PLUG, TYPE A, 2 POLE-2 WIRE (2P) NON-POLARIZED. BLACK.
Notes:
* Plug connects with Type A, Type B American Outlets Nema 1-15R, Nema 5-15R, 5-20R, Thailand Type O outlets, Universal and Multi-Configuration outlets.
* Max. O.D. dia. cable = 0.600" (15.2mm).
* Terminals accept 18/2, 16/2, 14/2, 12/2 conductors.
* Terminal screw torque = 14-18 in. lbs.

5276-BK

15A-125V NEMA 5-15P PLUG, TYPE B, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O Outlets, Universal Multi-Configuration Outlets.
* Max. Cable O.D.= 0.591" (15mm)
* Terminals accept 18/3, 16/3, 14/3, conductors.
* Screwless "Twist & Lock" cover / strain relief design provides faster assembly.

5266-X

15A-125V NEMA 5-15P PLUG, TYPE B, SPECIFICATION GRADE. BLACK / WHITE.
Approvals= c(UL)us (USA & Canada)
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia.

5266-XCL

15A-125V NEMA 5-15P NEON LIGHTED CLEAR TRANSPARENT PLUG, TYPE B, SPECIFICATION GRADE. CLEAR.
Notes:
* Accepts 18/3-10/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.655" dia.
* NEMA 5-15P plugs connect with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V receptacles, connectors, outlets.

5266-SSAN

15 AMPERE-125 VOLT NEMA 5-15P ANGLE PLUG, TYPE B, SPECIFICATION GRADE. BLACK / WHITE.
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia.
* NEMA 5-15P plugs connect with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V receptacles, connectors, outlets.

5266-GFCI

GFCI PLUG, 15A-120V VOLT 60Hz, NEMA 5-15P, 4-6mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480". BLACK.
Notes:
* Connects with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V outlets.

5366-GFCI

GFCI PLUG, 20A-120V VOLT 60Hz, NEMA 5-20P, 4-6mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480". BLACK.
Notes:
* NEMA 5-15P (15A-120V) version available #5266-GFCI.

5266-XHG

15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.655" CORD GRIP RANGE. BLACK/WHITE.

5266-XHGC

15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.720" CORD GRIP RANGE. UL/CSA LISTED. BLACK/CLEAR.

5266-HGAN

15A-125V HOSPITAL GRADE ANGLE PLUG, TYPE B, GREEN DOT NEMA 5-15P, IMPACT RESISTANT, TERMINALS ACCEPT 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.690" CORD GRIP RANGE. CLEAR/BLACK.
Notes:
* Four angle cover design. Power cord exits up, down, left or right.

8115

15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P PLUG, "CLAM SHELL" DESIGN CORD GRIP, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.655" CORD GRIP RANGE. WHITE. UL/CSA LISTED.

5269-X

15A-125V NEMA 5-15R CONNECTOR, TYPE B, SPECIFICATION GRADE. BLACK/WHITE.
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300"-0.650" dia.

5269-XCL

15A-125V NEMA 5-15P NEON LIGHTED CLEAR TRANSPARENT CONNECTOR, TYPE B, SPECIFICATION GRADE. CLEAR.
Notes:
* Accepts 18/3-10/3 AWG size conductors. Strain relief (cord grip range) = 0.300"-0.655" dia.

5269-XHG

15A-125V HOSPITAL GRADE CONNECTOR, TYPE B, GREEN DOT NEMA 5-15R, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.690" CORD GRIP RANGE. UL/CSA LISTED. BLACK/WHITE.

5269-XHGC

15A-125V HOSPITAL GRADE CONNECTOR, TYPE B, GREEN DOT NEMA 5-15R, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.720" CORD GRIP RANGE. UL/CSA LISTED. BLACK/CLEAR.

8119

15A-125V HOSPITAL GRADE CONNECTOR, TYPE B, GREEN DOT NEMA 5-15R PLUG, "CLAM SHELL" DESIGN CORD GRIP, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.655" CORD GRIP RANGE. LIGHT GRAY. UL/CSA LISTED

5296-BK

15A-125V NEMA 5-15R CONNECTOR, TYPE B, IMPACT RESISTANT, TERMINALS ACCEPT 18/3, 16/3, 14/3, CONDUCTORS. BLACK.
Notes:
* Screwless "Twist & Lock" cover / strain relief design provides faster assembly.

78860-LK

15A-125V LOCKING IN-LINE CONNECTOR, JAPAN JIS C 8303 (JA5-15R), CONNECTOR "LOCKS IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P) PLUGS, JAPAN (JA1-15P) PLUGS , IMPACT RESISTANT NYLON BODY, MAX. CORD O.D. = 0.465" DIA. BLACK. PSE, JET APPROVED.
Notes:
* This sockets configuration design accepts and "Locks In" American straight blade (15A-125V) NEMA 5-15P, NEMA 1-15P plugs, Japan straight blade (15A-125V) JA1-15P JIS C 8303 plugs. Prevents accidental disconnects.

39200X2FT

AMERICAN EXTENSION CORD, 2 FEET LONG, 13A-125V (1625 WATTS), 16/3 AWG, SJT, 60°C, TYPE B NEMA 5-15P PLUG, NEMA 5-15R CONNECTOR. BLACK.
Length: 0.6 METERS (2 FEET)

39200X25FT

AMERICAN EXTENSION CORD, 25 FEET LONG, 13A-125V (1625 WATTS), 16/3 AWG, SJT, 60°C, TYPE B NEMA 5-15P PLUG, NEMA 5-15R CONNECTOR. BLACK.
Length: 7.6 METERS (25 FEET)

39200X25FT-OD

AMERICAN EXTENSION CORD, 25 FEET LONG, WEATHER RESISTANT (INDOOR/OUTDOOR), 15A-125V (1875 WATTS), 14/3 AWG, SJTW (300 VOLT), 105°C, TYPE B NEMA 5-15P PLUG, NEMA 5-15R CONNECTOR. BLACK.
Length: 7.6 METERS (25 FEET)

Bulk-Electrical-Wire-Cable

Bulk International Electrical Wire Cable
* HAR Marked European Approved H05VV-F, H07RN-F, H05RN-F, H05RR-F Wire.
* Dual European and UL Approved HAR SJTO SJTOW H05VV-F Wire.
* Dual European and UL Approved HAR SOOW H07RN-F Wire.

5278-SS

15A-125V NEMA 5-15P FLANGED PANEL MOUNT POWER INLET, IMPACT RESISTANT NYLON, SPECIFICATION GRADE. WHITE.
Notes:
* Weatherproof / dust proof applications use #5200-WC cover & #5200-WTC terminal shield or # 79480 WP Cover.
** NEMA Panel Mount Power Inlets with same mounting pattern listed below.
**NEMA 5-15P Inlet #5278-SS (15A-125V). Accepts NEMA 5-15R & NEMA 5-20R connectors.
**NEMA 5-20P Inlet #5378-SS (20A-125V). Accepts NEMA 5-20R connectors.
**NEMA 6-15P Inlet #5678-SS (15A-250V). Accepts NEMA 6-15R connectors & NEMA 6-20R connectors.
**NEMA 6-20P Inlet #5478-SS (20A-250V). Accepts NEMA 6-20R connectors.
**NEMA L5-15R LOCKING inlet #4716-SS (15A-125V). Accepts NEMA L5-15R Locking connectors.
**NEMA L6-15P LOCKING inlet #L615-FI (15A-250V). Accepts NEMA L6-15R Locking connectors.
View: High Power NEMA Locking 20A, 30A Power Inlets. NEMA Flanged Inlets & Outlets Guide

5278-SS-BLK

15A-125V NEMA 5-15P FLANGED PANEL MOUNT POWER INLET, IMPACT RESISTANT NYLON, SPECIFICATION GRADE. BLACK.
Notes:
* Weatherproof / dust proof applications use #5200-WC cover & #5200-WTC terminal shield or # 79480 WP Cover.
** NEMA Panel Mount Power Inlets with same mounting pattern listed below.
**NEMA 5-15P Inlet #5278-SS (15A-125V). Accepts NEMA 5-15R & NEMA 5-20R connectors.
**NEMA 5-20P Inlet #5378-SS (20A-125V). Accepts NEMA 5-20R connectors.
**NEMA 6-15P Inlet #5678-SS (15A-250V). Accepts NEMA 6-15R connectors & NEMA 6-20R connectors.
**NEMA 6-20P Inlet #5478-SS (20A-250V). Accepts NEMA 6-20R connectors.
**NEMA L5-15R LOCKING inlet #4716-SS (15A-125V). Accepts NEMA L5-15R Locking connectors.
**NEMA L6-15P LOCKING inlet #L615-FI (15A-250V). Accepts NEMA L6-15R Locking connectors.
View: High Power NEMA Locking 20A, 30A Power Inlets. NEMA Flanged Inlets & Outlets Guide

5200-WC

WEATHERPROOF / DUSTPROOF FLANGED POWER INLET COVER, RUBBER (TPR). BLACK.
Notes:
* Mounts on power inlets #5278-SS, 5278-SS-BLK, 5378-SS, 5678-SS, 5478-SS, 4716-SS, L615-FI.

5200-WTC

WEATHERPROOF / DUSTPROOF COVER-TERMINAL SHIELD. RUBBER (TPR), BLACK.
Notes:
* Mounts on flanged outlets #5279-SS, 5279-SS-BLK, 5379-SS, 5679-SS, 5479-SS, 4715-SS, L615-FO.
* Mounts on flanged inlets #5278-SS, 5278-SS-BLK, 5378-SS, 5678-SS, 5478-SS, 4716-SS, L615-FI.

5242-I

15A-125V NEMA 5-15R AMERICAN TYPE A, TYPE B DUPLEX OUTLET, SPECIFICATION GRADE, IMPACT RESISTANT NYLON BODY. IVORY.
Notes:
* Outlet mounts on American 2x4 wall boxes or wall boxes with 3.28" (83mm / 84mm) mounting centers.
* NEMA 5-15R outlets & Universal outlets for European, British wall boxes available. View NEMA 5-15R & Universal Versions

5242-W

15A-125V NEMA 5-15R AMERICAN TYPE A, TYPE B DUPLEX OUTLET, SPECIFICATION GRADE, IMPACT RESISTANT NYLON BODY. WHITE.
Notes:
* Outlet mounts on American 2x4 wall boxes or wall boxes with 3.28" (83mm / 84mm) mounting centers.
* NEMA 5-15R outlets & Universal outlets for European, British wall boxes available. View NEMA 5-15R & Universal Versions

5242

15A-125V NEMA 5-15R AMERICAN TYPE A, TYPE B DUPLEX OUTLET, SPECIFICATION GRADE, IMPACT RESISTANT NYLON BODY. BROWN.
Notes:
* Outlet mounts on American 2x4 wall boxes or wall boxes with 3.28" (83mm / 84mm) mounting centers.
* NEMA 5-15R outlets & Universal outlets for European, British wall boxes available. View NEMA 5-15R & Universal Versions

8200-I

15A-125V HOSPITAL GRADE DUPLEX RECEPTACLE, GREEN DOT NEMA 5-15R, IMPACT RESISTANT NYLON BODY. UL/CSA LISTED. IVORY.

93101

AMERICAN DUPLEX OUTLET WALL PLATE. STAINLESS STEEL.
Notes:
* Mounts on American 2x4 size wall boxes.

92101-WPV

AMERICAN DUPLEX OUTLET WEATHERPROOF COVER, VERTICAL MOUNT, GASKETED, GRAY.
Notes:
* Mounts on American 2x4 size wall boxes.

1597-I

15A-125V NEMA 5-15R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A, SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. IVORY.

1597-W

15A-125V NEMA 5-15R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A, SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. WHITE.

1597-BK

15A-125V NEMA 5-15R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A, SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. BLACK.

2097-I

20A-125V NEMA 5-20R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A, SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. IVORY.

2097-W

20A-125V NEMA 5-20R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A , SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. WHITE.

2097-BK

20A-125V NEMA 5-20R GFCI DUPLEX OUTLET, 4mA-6mA TRIP, CLASS A, SHUTTERED CONTACTS, AUTOMATIC CIRCUIT TEST, ON / OFF LIGHT & TRIP INDICATOR, IMPACT RESISTANT NYLON. BLACK.

92105-WPV

AMERICAN GFCI OUTLET WEATHERPROOF COVER, VERTICAL MOUNT, GASKETED, GRAY.
Notes:
* Mounts on American 2x4 size wall boxes.

92105-WPH

AMERICAN GFCI OUTLET WEATHERPROOF COVER, HORIZONTAL MOUNT, GASKETED, GRAY.
Notes:
* Mounts on American 2x4 size wall boxes.

5251-I

15A-125V NEMA 5-15R AMERICAN TYPE A, TYPE B OUTLET, SPECIFICATION GRADE, IMPACT RESISTANT NYLON BODY. IVORY.
Notes:
* Outlet mounts on American 2x4 wall boxes or wall boxes with 3.28" (83mm / 84mm) mounting centers.
* NEMA 5-15R outlets & Universal outlets for European, British wall boxes available. View NEMA 5-15R & Universal Versions

8201-I

15A-125V HOSPITAL GRADE RECEPTACLE, GREEN DOT NEMA 5-15R, IMPACT RESISTANT NYLON BODY. UL/CSA LISTED. IVORY.

93091

AMERICAN SINGLE OUTLET WALL PLATE, STAINLESS STEEL (TYPE 302).
Notes:
* Mounts on American 2x4 size wall boxes.

79410

AMERICAN SINGLE OUTLET WEATHER PROTECTIVE COVER, VERTICAL MOUNT, GASKETED, THERMOPLASTIC. GRAY.
Notes:
* Mounts on American 2x4 size wall boxes.

92091-WPV

AMERICAN SINGLE OUTLET WEATHERPROOF COVER, CORROSION RESISTANT DIE CAST ZINC, POLYESTER FINISH, STAINLESS STEEL SPRINGS, VERTICAL MOUNT, GASKETED, GRAY.
Notes:
* Mounts on American 2x4 size wall boxes.

5258-QC

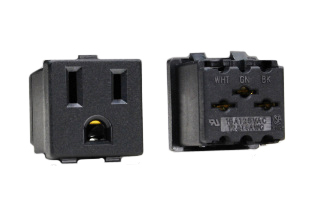

15A-125V AC (USA / CANADA) "SNAP-IN" PANEL MOUNT OUTLET, NEMA 5-15R, TYPE B, 35mmX35mm SIZE, 0.250" (6.3mm) QUICK CONNECT / SOLDER TERMINALS, NYLON. BLACK.
Notes:
* Material: Nylon, UL94V-0 rated.
* NEMA outlets with same "SNAP-IN" panel cut out design listed below.
**NEMA 5-15R Outlet Part #5258-QC (15A-125V)
**NEMA 5-20R Outlet Part #5358-QC (20A-125V)
**NEMA 6-15R Outlet Part #5658-QC (15A-250V)
**NEMA 6-20R Outlet Part #5858-QC (20A-250V)
View: Optional outlet designs #5258 , #5279-SS , #70020.

5258-I

15A-125V AC (USA / CANADA) PANEL MOUNT OUTLET, NEMA 5-15R TYPE B, SPECIFICATION GRADE, SIDE WIRED, SCREW TERMINALS. IVORY.
Notes:
* NEMA Panel Mount Outlets with same mounting design listed below.
**NEMA 5-15R Outlet Part #5258 (15A-125V).
**NEMA 5-20R Outlet Part #5358 (20A-125V).
**NEMA 6-15R Outlet Part #5658 (15A-250V).
**NEMA 6-20R Outlet Part #5858 (20A-250V).
View: # 5258-QC "SNAP-IN" panel mount design with Quick Connect / Solder Terminals.

5258-BLK

15A-125V AC (USA / CANADA) PANEL MOUNT OUTLET, NEMA 5-15R TYPE B, SPECIFICATION GRADE, SIDE WIRED, SCREW TERMINALS. BLACK.
Notes:
* NEMA Panel Mount Outlets with same mounting design listed below.
**NEMA 5-15R Outlet Part #5258 (15A-125V).
**NEMA 5-20R Outlet Part #5358 (20A-125V).
**NEMA 6-15R Outlet Part #5658 (15A-250V).
**NEMA 6-20R Outlet Part #5858 (20A-250V).
View: # 5258-QC "SNAP-IN" panel mount design with Quick Connect / Solder Terminals.

5258-W

15A-125V AC (USA / CANADA) PANEL MOUNT OUTLET, NEMA 5-15R TYPE B, SPECIFICATION GRADE, SIDE WIRED, SCREW TERMINALS. WHITE.
Notes:
* NEMA Panel Mount Outlets with same mounting design listed below.
**NEMA 5-15R Outlet Part #5258 (15A-125V).
**NEMA 5-20R Outlet Part #5358 (20A-125V).
**NEMA 6-15R Outlet Part #5658 (15A-250V).
**NEMA 6-20R Outlet Part #5858 (20A-250V).
View: # 5258-QC "SNAP-IN" panel mount design with Quick Connect / Solder Terminals.

5258

15A-125V AC (USA / CANADA) PANEL MOUNT OUTLET, NEMA 5-15R TYPE B, SPECIFICATION GRADE, SIDE WIRED, SCREW TERMINALS. BROWN.
Notes:
* NEMA Panel Mount Outlets with same mounting design listed below.
**NEMA 5-15R Outlet Part #5258 (15A-125V).
**NEMA 5-20R Outlet Part #5358 (20A-125V).
**NEMA 6-15R Outlet Part #5658 (15A-250V).
**NEMA 6-20R Outlet Part #5858 (20A-250V).
View: # 5258-QC "SNAP-IN" panel mount design with Quick Connect / Solder Terminals.

8284-I

15A-125V HOSPITAL GRADE PANEL MOUNT RECEPTACLE, GREEN DOT NEMA 5-15R, IMPACT RESISTANT NYLON BODY. UL/CSA LISTED. IVORY.

8284-W

15A-125V HOSPITAL GRADE PANEL MOUNT RECEPTACLE, GREEN DOT NEMA 5-15R, IMPACT RESISTANT NYLON BODY. UL/CSA LISTED. WHITE.

5279-SS-BLK

15A-125V NEMA 5-15R FLANGED PANEL MOUNT POWER OUTLET, SPECIFICATION GRADE. BLACK.
Notes:
* Weatherproof / dust proof applications use #5200-WSC cover & #5200-WTC terminal shield or # 79480 WP cover.
** NEMA Flanged Panel Mount Flanged Outlets with same mounting pattern listed below.
**NEMA 5-15R Outlet Part #5279-SS (15A-125V). Accepts NEMA 5-15P plugs.
**NEMA 5-20R Outlet Part #5379-SS (20A-125V). Accepts NEMA 5-20P & NEMA 5-15P plugs.
**NEMA 6-15R Outlet Part #5679-SS (15A-250V). Accepts NEMA 6-15P plugs.
**NEMA 6-20R Outlet Part #5479-SS (20A-250V). Accepts NEMA 6-20P & NEMA 6-15P plugs.
**NEMA L5-15R Locking Outlet #4715-SS (15A-125V). Accepts NEMA L5-15P Locking plugs.
**NEMA L6-15R Locking Outlet #L615-FO (15A-250V). Accepts NEMA L6-15P Locking plugs.
View: Optional panel mount designs # 5258-BLK, # 5258-QC (Quick Connect / Solder Terminals), # 70020-BLK weather resistant.

5279-SS

15A-125V NEMA 5-15R FLANGED PANEL MOUNT POWER OUTLET, SPECIFICATION GRADE. WHITE.
Notes:
* Weatherproof / dust proof applications use #5200-WSC cover & #5200-WTC terminal shield or # 79480 WP cover.
** NEMA Flanged Panel Mount Outlets with same mounting pattern listed below.
**NEMA 5-15R Outlet Part #5279-SS (15A-125V). Accepts NEMA 5-15P plugs.
**NEMA 5-20R Outlet Part #5379-SS (20A-125V). Accepts NEMA 5-20P & NEMA 5-15P plugs.
**NEMA 6-15R Outlet Part #5679-SS (15A-250V). Accepts NEMA 6-15P plugs.
**NEMA 6-20R Outlet Part #5479-SS (20A-250V). Accepts NEMA 6-20P & NEMA 6-15P plugs.
**NEMA L5-15R Locking Outlet #4715-SS (15A-125V). Accepts NEMA L5-15P Locking plugs.
**NEMA L6-15R Locking Outlet #L615-FO (15A-250V). Accepts NEMA L6-15P Locking plugs.
View: Optional panel mount designs # 5258-I, # 5258-QC (Quick Connect / Solder Terminals), # 70020 weather resistant.

5200-WSC

WEATHERPROOF / DUSTPROOF FLANGED POWER OUTLET COVER, RUBBER (TPR). BLACK.
Notes:
* Mounts on power outlets #5279-SS, 5279-SS-BLK, 5379-SS, 5279-SS-BLK, 5679-SS, 5479-SS, 4715-SS, L615-FO.
* Weatherproof / dustproof "terminal shield" #5200-WTC available.

5200-WTC

WEATHERPROOF / DUSTPROOF COVER-TERMINAL SHIELD. RUBBER (TPR), BLACK.
Notes:
* Mounts on flanged outlets #5279-SS, 5279-SS-BLK, 5379-SS, 5679-SS, 5479-SS, 4715-SS, L615-FO.
* Mounts on flanged inlets #5278-SS, 5278-SS-BLK, 5378-SS, 5678-SS, 5478-SS, 4716-SS, L615-FI.

70020

15A-125V NEMA 5-15R WEATHERPROOF OUTLET, PANEL / WALL BOX MOUNT, TYPE B, IP54 RATED. GRAY.
Notes:
* American 2x4, 4x4 wall box mount applications = Use #97120-BZ, #97120-DBZ wall plates.
* Surface mount wall box applications = Use #70125.
* DIN rail mount Applications = Use #70125-DIN bracket & #70125 wall box.
* Terminals, conductor cover for panel mount applications = Use #70127.
View: Optional panel mount designs # 5279-SS, # 5258, # 5258-QC.
View: European, British, Australia, Universal Weatherproof outlets with same mounting design.

70020-BLK

15A-125V NEMA 5-15R WEATHERPROOF OUTLET, PANEL / WALL BOX MOUNT, TYPE B, IP54 RATED. BLACK.
Notes:
* American 2x4, 4x4 wall box mount applications = Use #97120-BZ, #97120-DBZ wall plates.
* Surface mount wall box applications = Use #70125.
* DIN rail mount Applications = Use #70125-DIN bracket & #70125 wall box.
* Terminals, conductor cover for panel mount applications = Use #70127.
View: Optional panel mount designs # 5279-SS, # 5258, # 5258-QC.
View: European, British, Australia, Universal Weatherproof outlets with same mounting design.

74900-WP

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION, 10A-250V WEATHERPROOF IP44 PANEL OR WALL BOX MOUNT POWER OUTLET, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International European, British, Australia, American, South America, Asia, Thailand & Type D South Africa, India Plugs.
* Stainless steel wall plates # 97120-BZ and # 97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Not for use with # 70125 wall box.

76143x45

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) OUTLET, IP20, TYPE A , TYPE B, 45mmX45mm MODULAR SIZE, SCREW TERMINALS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts American NEMA 1-15P (2P), NEMA 515-P (2P+E) Plugs.
* Duplex outlet available #76143X45D. GFCI Duplex available #1597-W.
* Mounts on American 2x4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4x4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame #79100X45. DIN rail mount Frame #79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76143X45D

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) DUPLEX OUTLET, TYPE A , TYPE B, 67.5mmX45mm MODULAR SIZE, IP20 RATED, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* GFCI Duplex available # 1597-W.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76142X45

NEMA 1-15R, AMERICAN, ASIA, CHINA, THAILAND, S. AMERICA, SAUDI ARABIA, 15A-127V MODULAR OUTLET, 22.5mmX45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76142X45-BLK

NEMA 1-15R, AMERICAN, ASIA, CHINA, THAILAND, S. AMERICA, SAUDI ARABIA, 15A-127V MODULAR OUTLET, 22.5mmX45mm SIZE. BLACK (MAGNESIUM COLOR).
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

85100x45

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN, INTERNATIONAL 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, TYPE A (2P), TYPE B (2P+E), TYPE C (2P), TYPE O, THAILAND TIS 2532-2555 (2P+E), MULTI-CONFIGURATION POWER OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Duplex Outlets available #85100X45D, GFCI (RCD) #85100-RCD, Universal GFCI (RCD) #74900-RCDS.
* Complete range of modular devices and mounting component options. Modular Devices Link

85100x45D

THAILAND, ASIA, SOUTH AMERICA, AMERICA, EUROPEAN, INTERNATIONAL 16 AMPERE-250 VOLT, 15 AMPERE-127 VOLT, TYPE A, B NEMA, TYPE C CEE 7/16, TYPE O, THAILAND TIS 2532-2555 MULTI-CONFIGURATION DUPLEX POWER RECEPTACLE, OUTLET, 67.5mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .
* Mounts on American 2x4 wall boxes, requires frame #79170X45-N & #79180X45-N wall plate (White, SS).
* Mounts on American 4x4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame #730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

85102X45

SOUTH AMERICA, AMERICA, EUROPEAN, THAILAND, ASIA, INTERNATIONAL 16A-250V, 15A-127V, TYPE A NEMA, TYPE C CEE 7/16 MULTI-CONFIGURATION OUTLET, SHUTTERED CONTACTS, 22.5mmX45mm MODULAR SIZE. WHITE.

85102X45-BLK

SOUTH AMERICA, AMERICA, EUROPEAN, THAILAND, ASIA, INTERNATIONAL 16A-250V, 15A-127V, TYPE A NEMA, TYPE C CEE 7/16 MULTI-CONFIGURATION OUTLET, SHUTTERED CONTACTS, 22.5mmX45mm MODULAR SIZE. BLACK (MAGNESIUM COLOR).

74901

UNIVERSAL MULTI-CONFIGURATION 20A-250V EUROPEAN, INTERNATIONAL, UK, BRITISH, UNITED KINGDOM, AUSTRALIA, CHINA, S. AMERICA, BRAZIL, ASIA, THAILAND, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-WE.
* Surface mount on wall boxes. View surface box series
* Contact sales for product application assistance.

74901-BLK

UNIVERSAL MULTI-CONFIGURATION 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL POWER OUTLET, 36mmX36mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Mounts on Standard American 2x4, 4x4 wall boxes. Requires wall plate/mounting frame. View wall plate series # 74910-BLK.
* Mounts on European one gang , two gang boxes with (60mm) & 120mm) mounting centers. View wall box series # 72350X35D.
* European (60mm & (120mm) wall boxes require mating wall plate/mounting frames. View series # 74910-BE.
* Contact sales for product application assistance.

74900x45-W

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA , ASIA, THAILAND, 13A-250V, 15A-127V [MAX. RATINGS], MULTI-CONFIGURATION OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING [2P+E]. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74900x45

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA , ASIA, THAILAND, 13A-250V, 15A-127V [MAX. RATINGS], MULTI-CONFIGURATION OUTLET, 45mmX45mm MODULAR SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING [2P+E]. BLACK [MAGNESIUM COLOR].
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74900X45-WS

UNIVERSAL, INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND, 16A-250V, 15A-127V (MAX. RATING), MULTI-CONFIGURATION OUTLET, 67.5mmX45mm MODULAR SIZE, SINGLE POLE SWITCH, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Plug adapter # 30140 available, provides "Earth" (2P+E) grounding connection for European, German, French Schuko CEE 7/7, CEE 7/4 plugs when used with outlet.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

74900-WP

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION, 10A-250V WEATHERPROOF IP44 PANEL OR WALL BOX MOUNT POWER OUTLET, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International European, British, Australia, American, South America, Asia, Thailand & Type D South Africa, India Plugs.
* Stainless steel wall plates # 97120-BZ and # 97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Not for use with # 70125 wall box.

74900-RCDS

UNIVERSAL EUROPEAN, INTERNATIONAL ASIA, AUSTRALIA, THAILAND CHINA MULTI-CONFIGURATION GFCI (RCD) OUTLET, 20 AMP 250 VOLT, 6mA TRIP , TEST / RESET BUTTONS, INDICATOR LIGHT, WHITE.
Notes:
* Mounts on American 2x4 wall boxes & International wall boxes with 3.28" (83mm / 84mm) mounting centers.
* Surface mounts on # 74225, # 84225-AR wall boxes or panel mount. Weatherproof horizontal mount cover # 74900-MCS
* Accepts Australia, China, South America Thailand, Asia, Israel, American plugs & European plugs with (4.8mm pins / 4.0mm pins).
* For use on International, European 220-250 volt (line to neutral) single phase circuits only. Protects downstream outlets.
* Not for use on life support, medical equipment, refrigeration equipment.

4300.0701

15A-125V NEMA 5-15R SNAP-IN OUTLET. BLACK.

4300.0702

15A-125V NEMA 5-15R SNAP-IN OUTLET, INSULATION DISPLACEMENT TERMINALS. BLACK.

4300.0703

15A-125V NEMA 5-15R SNAP-IN OUTLET,"V" SLOT" INSULATION DISPLACEMENT TERMINALS. BLACK.

5258-QC

15A-125V AC (USA / CANADA) "SNAP-IN" PANEL MOUNT OUTLET, NEMA 5-15R, TYPE B, 35mmX35mm SIZE, 0.250" (6.3mm) QUICK CONNECT / SOLDER TERMINALS, NYLON. BLACK.
Notes:
* Material: Nylon, UL94V-0 rated.
* NEMA outlets with same "SNAP-IN" panel cut out design listed below.
**NEMA 5-15R Outlet Part #5258-QC (15A-125V)
**NEMA 5-20R Outlet Part #5358-QC (20A-125V)
**NEMA 6-15R Outlet Part #5658-QC (15A-250V)
**NEMA 6-20R Outlet Part #5858-QC (20A-250V)
View: Optional outlet designs #5258 , #5279-SS , #70020.

60350

AMERICA, CANADA NEMA 15A-125V TYPE B NEMA 5-15R 6 OUTLET PDU POWER STRIP, "19" IN. VERTICAL RACK/SURFACE MOUNT, METAL ENCLOSURE, 2.0 METER (6FT-7IN) CORD. GRAY.

61350

AMERICA, CANADA NEMA 15A-125V TYPE B NEMA 5-15R 6 OUTLET PDU POWER STRIP, 19" HORIZONTAL RACK MOUNT, METAL ENCLOSURE, 2.0 METER (6FT-7IN) CORD. GRAY.

60358

AMERICA, CANADA NEMA 15A-110V TYPE B NEMA 5-15R 8 OUTLET PDU POWER STRIP, ILLUMINATED DOUBLE POLE SWITCH, METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD. BLACK.
Notes:
* Locking versions that prevent accidental disconnect are #56506-LK (6 outlets), #56510-LK (10 outlets).

61358

AMERICA, CANADA NEMA 15A-110V TYPE B NEMA 5-15R 8 OUTLET PDU POWER STRIP, ILLUMINATED DOUBLE POLE SWITCH, METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD. BLACK.
Notes:
* Locking versions that prevent accidental disconnect are #56506-LK (6 outlets), #56510-LK (10 outlets).

61306

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R, 19" HORIZONTAL RACK MOUNT (1U) 6 OUTLET PDU POWER STRIP, 15 AMP CIRCUIT BREAKER (OVERLOAD PROTECTION), ILLUMINATED ON/OFF SWITCH, METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

61308

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R 19" HORIZONTAL RACK MOUNT (1U) 8 OUTLET PDU POWER STRIP, 15 AMP CIRCUIT BREAKER (OVERLOAD PROTECTION), ILLUMINATED DOUBLE POLE ON/OFF SWITCH, METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

61310

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R 19" HORIZONTAL RACK MOUNT (1U) 10 OUTLET PDU POWER STRIP, 15 AMP CIRCUIT BREAKER, ILLUMINATED ON/OFF CIRCUIT BREAKER, METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

61326

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R 19" HORIZONTAL RACK MOUNT (1U) 6 OUTLET PDU POWER STRIP, SURGE PROTECTION (LED INDICATOR), 15 AMP CIRCUIT BREAKER (OVERLOAD PROTECTION), METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

61328

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R 19" HORIZONTAL RACK MOUNT (1U) 8 OUTLET PDU POWER STRIP, FILTERED THREE WAY SURGE PROTECTION (LED INDICATORS), 15 AMP CIRCUIT BREAKER (OVERLOAD PROTECTION), METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

61330

AMERICAN, CANADA NEMA 15 AMPERE-125 VOLT, TYPE B NEMA 5-15R 19" HORIZONTAL RACK MOUNT (1U) 10 OUTLET PDU POWER STRIP, SURGE PROTECTION (LED INDICATOR) 15 AMP CIRCUIT BREAKER (OVERLOAD PROTECTION), METAL ENCLOSURE, 3.0 METER (9FT-10IN) CORD, BLACK.

88-PS7

AMERICA, CANADA NEMA 5-15R 15A-125V 7 OUTLET PDU POWER STRIP, SURGE PROTECTION, CIRCUIT BREAKER. DARK GRAY.

82404-HG

15A-125V HOSPITAL GRADE PDU POWER STRIP, 4 NEMA 5-15R "GREEN DOT" OUTLETS, CLEAR HOSPITAL GRADE NEMA 5-15P "GREEN DOT" PLUG. WHITE.

56504

JAPAN 15A-125V 4 OUTLET PDU POWER STRIP, JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, 1500 WATT, INDICATOR LIGHT, 3.0 METER (9FT-10IN) POWER CORD. GRAY. PSE, JET APPROVED.
Notes:
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking versions available #56506-LK (6 outlets), #56510-LK (10 outlets). Prevents accidental disconnects.

56506

JAPAN 15A-125V 6 OUTLET PDU POWER STRIP, (1500 WATT), JIS C 8303 TYPE B (JA1-15R) NEMA 5-15R, 3.0 METER (9FT-10IN) POWER CORD. IVORY. PSE, JET APPROVED.
Notes:
* Outlet accepts 15A-125V American NEMA 5-15P, NEMA 1-15P plugs, Japan JA1-15P plugs. Locking versions available #56506-LK (6 outlets), #56510-LK (10 outlets). Prevents accidental disconnects.

56506-LK

15A-125V 6 OUTLET LOCKING PDU POWER STRIP. JAPAN JIS C 8303 (JA5-15R) OUTLETS "LOCK IN" AMERICAN STRAIGHT BLADE (NEMA 5-15P, NEMA 1-15P) PLUGS, , 3.0 METER (9FT-10IN) POWER CORD. IVORY. PSE, JET APPROVED.
Notes:
* This outlet configuration design accepts American straight blade 15A-125V plugs (NEMA 5-15P, NEMA 1-15P), Japan 15A-125V plugs (JA1-15P) and locks the plugs into the outlets. Prevents accidental disconnect.

58206-C14

UNIVERSAL INTERNATIONAL, EUROPEAN MULTI-CONFIGURATION 6 OUTLET, 13 AMPERE-250 VOLT PDU POWER STRIP, 50/60Hz, C-14 POWER INLET, SURGE PROTECTION, SHUTTERED CONTACTS, ILLUMINATED ON/OFF CIRCUIT BREAKER. IVORY.
Notes:
* C-14 power inlet accepts all IEC 60320 C-13, C-15 power cords, connectors.
* Complete range of Universal Multi Configuration Power Strips. Universal Power Strips Link

58206

UNIVERSAL EUROPEAN, INTERNATIONAL MULTI-CONFIGURATION 13A-250V 6 OUTLET PDU POWER STRIP, 50/60Hz, "LOCKING TYPE" POWER INLET, SURGE PROTECTION, SHUTTERED CONTACTS, ILLUMINATED ON/OFF CIRCUIT BREAKER. IVORY.
Notes:
* Operating / Storage temperature: -20C + 100C.
* Select a mating locking power supply cord for 58206. [88-WE-XXX] series cords are listed on Dimensional Data Sheet, in related products below or visit 58206 Power Supply Cord Selector.
* Locking power inlet prevents accidental disconnect.
* Complete range of Universal Multi Configuration Power Strips. Universal Power Strips Link

58205-C14

SOUTH AFRICA, INDIA UNIVERSAL MULTI-CONFIGURATION 13 AMPERE-250 VOLT PDU POWER STRIP, 5 OUTLETS, 50/60Hz, C-14 POWER INLET, SURGE PROTECTION, ILLUMINATED ON/OFF CIRCUIT BREAKER, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* C-14 Power inlet accepts C-13, C-15 Power Cords, C-13 Locking Power Cords.
* Power Cords listed below. Scroll down to view.
* Outlets accept South Africa Type D (5A/6A-250V) plugs, South Africa Type M (16A-250V) plugs.
* Outlets also accept European, UK, Italy, Denmark, Swiss, Australia, India, South Africa, China, Japan, Brazil, Argentina, American, South America, Israel, Asia, Thailand plugs.
* Three #74900-SGA socket adapters included. Adapters provide ground [Earth Connection] when European CEE 7/4, CEE 7/7 Schuko plugs are used with # 58205 power strip.
* Complete range of Universal Multi Configuration Power Strips. Universal Power Strips Link

58205

SOUTH AFRICA, INDIA UNIVERSAL MULTI-CONFIGURATION 13 AMPERE-250 VOLT PDU POWER STRIP, 5 OUTLETS, 50/60Hz, "LOCKING TYPE" POWER INLET", SURGE PROTECTION, ILLUMINATED ON/OFF CIRCUIT BREAKER, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Operating / Storage temperature: -20C + 100C.
* Select a mating locking power supply cord for 58205. [88-WE-XXX] series cords are listed on Dimensional Data Sheet, in related products below or visit 58205 Power Supply Cord Selector.
* Outlets accept South Africa Type D (5A/6A-250V) plugs, South Africa Type M (16A-250V) plugs.
* Outlets also accept European, UK, Italy, Denmark, Swiss, Australia, India, South Africa, China, Japan, Brazil, Argentina, American, South America, Israel, Asia, Thailand plugs.
* Three #74900-SGA socket adapters included. Adapters provide ground [Earth Connection] when European CEE 7/4, CEE 7/7 Schuko plugs are used with # 58205 power strip.
* Complete range of Universal Multi Configuration Power Strips. Universal Power Strips Link

52019

HORIZONTAL "19" INCH (2RU) RACK MOUNT POWER STRIP MOUNTING PLATE. GRAY.
Notes:
* For use with power strip models less than 433 mm (17.0472") long.
* Available in black color #52019-BLK.

76143x45

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) OUTLET, IP20, TYPE A , TYPE B, 45mmX45mm MODULAR SIZE, SCREW TERMINALS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet accepts American NEMA 1-15P (2P), NEMA 515-P (2P+E) Plugs.
* Duplex outlet available #76143X45D. GFCI Duplex available #1597-W.
* Mounts on American 2x4 wall boxes, requires frame #79120X45-N & #79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4x4 wall boxes, requires frame #79210X45-N & #79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame #79250X45-N & wall plate #79265X45-N.
* Panel mount frame #79100X45. DIN rail mount Frame #79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

79130x45-N

WALL PLATE, WHITE COLOR. ONE GANG SIZE. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm SIZE MODULAR DEVICES.
Notes:
* Mounts on American 2x4 size wall boxes, requires one #79120X45-N mounting frame.

79130X45-BLK

WALL PLATE, BLACK (MAGNESIUM COLOR). ONE GANG SIZE. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm SIZE MODULAR DEVICES.
Notes:
* Requires #79120X45-N mounting frame. Frame mounts on American 2x4 wall boxes.

79130X45-ALU

WALL PLATE, ALUMINUM FINISH. ONE GANG SIZE. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm SIZE MODULAR DEVICES.
Notes:
* Requires #79120X45-N mounting frame. Frame mounts on American 2x4 wall boxes.

79135x45-N

WALL PLATE, ONE GANG. STAINLESS STEEL FINISH. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm SIZE MODULAR DEVICES.
Notes:
* Requires #79120X45-N mounting frame. Frame mounts on American 2x4 wall boxes.

79120x45-N

MOUNTING FRAME FOR AMERICAN 2x4 WALL BOXES. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm SIZE MODULAR DEVICES.
Notes:
* Mounts on American 2x4 wall boxes, requires one #79130X45-N or #79135X45-N wall plate.

79235X45

SURFACE MOUNT 1 GANG METAL BOX AND COVER. ACCEPTS 45mmX45mm & 22.5mmX45mm SIZE MODULAR DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Note: Not for use with # 70100X45-IT, 685041X45, 685042X45 outlets.
* Option = Use insulated surface mount wall box # 680602X45 for above outlets.

79230X45

SURFACE MOUNT 2 GANG METAL BOX & COVER. ACCEPTS 45mmX45mm & 22.5mmX45mm SIZE MODULAR DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Note: Not for use with # 70100X45-IT, 685041X45, 685042X45 outlets.
* Option: Insulated surface mount wall box # 680604X45.

79280X45

SURFACE MOUNT 1.5 GANG METAL BOX AND COVER. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm SIZE MODULAR DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Note: Not for use with # 70100X45-IT, 685041X45, 685042X45 outlets.
* Option = Use insulated surface mount wall box # 680603X45 for above outlets.

680612x45

WEATHERPROOF, 2 GANG, IP55 RATED, INSULATED SURFACE MOUNT BOX AND COVER (*) WITH TRANSPARENT LIFT LID. GRAY.
Notes:
* Accepts two 22.5mmX45mm or one 45mmX45mm modular size device.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Box has 23mm diameter knockouts & membrane gland cable entry.
* Not for use with # 74452X45 circuit breaker.

680612x45CV

WEATHERPROOF IP55 RATED PANEL MOUNT COVER (*) WITH TRANSPARENT LIFT LID. ACCEPTS ONE 45mmX45mm OR TWO 22.5mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* (*) Weatherproof cover has flexible transparent membrane insert that allows switches, GFCI/RCD & overload circuit breakers to be turned ON / OFF when cover is closed.

684636x45

WEATHERPROOF IP66 RATED SURFACE MOUNT 1 GANG (EXTRA DEEP WALL BOX) WITH TRANSPARENT LIFT LID COVER. ACCEPTS 22.5mmX45mm, 45mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* View Modular European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Not for use with #74452X45 circuit breaker.

684585x45

WEATHERPROOF (IP66 RATED) WALL BOX OR PANEL MOUNT LIFT LID COVER. WHITE.
Notes:
* Cover accepts 45mmX45mm 0R 22.5mmX45mm modular size outlets, GFCI/Overload circuit breakers, switches.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]


680613X45

WEATHERPROOF, 3 GANG, IP55 RATED, INSULATED SURFACE MOUNT WALL BOX WITH TRANSPARENT LIFT LID COVER (*). WALL BOX MOUNTING OPTIONS = CORD ENTRY ON TOP OR BOTTOM. GRAY.
Notes:
* Accepts 67.5mm, 45X45mm, 45mmX45mm, 22.5mm modular size device.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]

680635X45

WEATHERPROOF IP55 RATED PANEL MOUNT COVER (*) WITH TRANSPARENT LIFT LID. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* (*) Weatherproof cover has flexible transparent membrane insert that allows switches, GFCI/RCD & overload circuit breakers to be turned ON / OFF when cover is closed.

68063x45

WEATHERPROOF PANEL MOUNT IP55 RATED COVER (*) WITH TRANSPARENT LIFT LID. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* Mounts on American 2x4 flush "recessed type" horizontally installed wall boxes.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* (*) Weatherproof cover has flexible transparent membrane insert that allows switches, GFCI/RCD & overload circuit breakers to be turned ON / OFF when cover is closed.

79575X45

WEATHERPROOF (NEMA TYPE 3R) IP66 MODULAR DEVICE COVER WITH GASKET, TRANSPARENT LID. PANEL MOUNT OR MOUNT ON AMERICAN 2 GANG WALL BOX. WHITE.
Notes:
* Cover accepts 45mmX45mm 0R 22.5mmX45mm modular size outlets, GFCI/Overload circuit breakers, switches.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]

79570X45

WEATHERPROOF IP44 RATED WALL BOX MOUNT COVER (*) WITH TRANSPARENT LID. WHITE.
Notes:
* Cover accepts 45mmX45mm & 22.5mmX45mm size modular devices.
* Mounts on European (60mm on center) wall boxes.

79595X45

DIN-RAIL MOUNT BRACKET, ACCEPTS 45mmX45mm & 22.5mmX22.5mm SIZE MODULAR OUTLETS, SWITCHES, CIRCUIT BREAKERS. WHITE.
Notes:
* View European, British, International Outlets, Switches, Circuit Breakers. [ Entire Modular Device Series ]
* Not for use with # 70100X45-IT, 74600X45, 685041X45, 685042X45, 685043X45 modular outlets, # 79512X45 modular switch.
Note: Other DIN Rail Mount Product Groups available. View options 2 & 3 listed below.
* Option # 2: View DIN Rail Mount bracket # 74970-DIN . Accepts (36mmX36mm) Modular size Universal, Multi-Configuration International European, British, China, Asia, Thailand, American, Outlets, Switches, Circuit Breakers.
* Option # 3: View DIN Rail Mount bracket # 84449. Accepts (37mmX50mm & 18.5mmX50mm) Modular size South America, Brazil, Argentina, Chile / Italy, Uruguay, Peru, European Outlets, Switches.

DIN-RAIL-MOUNT-OUTLETS

EUROPEAN,INTERNATIONAL, AMERICAN MODULAR DIN RAIL MOUNT, PANEL MOUNT POWER OUTLETS, SOCKETS, RECEPTACLES, GFCI / RCD / RCBO CIRCUIT BREAKERS, USB SOCKETS, SWITCHES, RJ45 /CAT6 JACKS, INDICATOR / PILOT LIGHTS.
Notes:
*DIN rail mount option: Use DIN rail mount bracket #79595X45 together with receptacle outlets, power sockets and electrical devices in our modular devices range. Scroll down and view in "related products or visit Modular Devices
*Weatherproof DIN rail mount option: Use #70125-DIN din rail bracket and back box #70125 together with weatherproof flip lid receptacles. Visit Weatherproof Din Rail Mount Outlets
*Additional mounting options: Modular Devices also mount on American 2x4, 4x4 wall boxes, weatherproof enclosures, covers rated IP44, IP54, IP66, IP68 available. Visit Modular Devices

73551-US

AMERICAN 15A-125V NEMA 5-15R OUTLET, TYPE A, TYPE B, IP20, 86mmX86mm SIZE. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View # 72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series.
* Weatherproof cover available, IP55 rated # 74790-A.
* Weatherproof enclosure available # 74790X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73553-MCS

THAILAND, ASIA, SOUTH AMERICA, AMERICAN, EUROPEAN, MULTI-CONFIGURATION POWER OUTLET, 16 AMPERE-250 VOLT / 15 AMPERE-127 VOLT, TYPE A, B, C, O, THAILAND TIS 2532-2555 (2P+E), SHUTTERED CONTACTS, 86mmX86mm SIZE, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series.
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .

73555-UV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13A-250V OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 72360, 72360-RED wall box series. Not for use with #77190 wall box.
* Weatherproof cover available, IP55 rated #74790-A.
* Weatherproof enclosure available #74790X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73555-UV-W

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 77190, 72360, 72360-RED wall box series.
* Weatherproof covers available, IP55 rated # 74790-A, # 74790.
* Weatherproof enclosures available # 74790-B1, (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73555-UV-B

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX86mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 60mm (60.3mm) centers.
* View #72350X47D, 72350X35D, 72350X25D, 72350-F, 77190, 72360, 72360-RED wall box series.
* Weatherproof covers available, IP55 rated # 74790-A, # 74790.
* Weatherproof enclosures available # 74790-B1, (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

72350-F

EUROPEAN, INTERNATIONAL, UK, BRITISH, UNITED KINGDOM FLUSH MOUNT ONE GANG WALL BOX (35mm DEEP), FLUSH MOUNTS SINGLE OUTLETS & SWITCHES IN SHEET ROCK WALLS OR 1/4"-7/8" INCH THICK PANELS.
Notes:
* Accepts 86mmX86mm size Sockets, Outlets, Switches, Devices with 60mm (60.3mm) mounting centers.
*** Mounting fins adjust out and up securing many material thicknesses ranging from 4.5mm to 21mm thick.
* Wall box designed for New installations, "Old Work" (Retrofit) installations in sheet rock or 1/4"-7/8" thick panels.
* Accepts NEMA 5-15R outlets, European , British & Universal outlets . View NEMA 5-15R & Universal Versions
* Verify mating components depth dimension for compatibility with # 72350-F. Box requires 75mm X 75mm wall / panel cutout.
* Wall box also accepts International modular type devices. View outlets, switches, GFCI / RCD options. Modular Devices Link

72350X35D

EUROPEAN, BRITISH, INTERNATIONAL ONE GANG FLUSH MOUNT GALVANIZED STEEL ELECTRICAL WALL BOX,
(35mm DEEP), "EARTH" TERMINAL, ADJUSTABLE MOUNTING LUG (LEVELS DEVICE & WALL PLATE), 20mm KNOCKOUTS.
Notes:
* Accepts 86mmX86mm size Sockets, Outlets, Switches, Devices with 60mm (60.3mm) mounting centers.
* Verify mating product depth dimension for compatibility. Other sizes available. View # 72350X47D.
* Wall box also accepts International modular type devices. View outlets, switches, GFCI / RCD options. Modular Devices Link
* Surface mount modular device steel wall boxes available. View # 79235X45, 79230X45 series.
* Surface mount modular device insulated wall boxes available. View # 680602X45 type. Weatherproof view # 680612X45 type.

74790-A

WEATHERPROOF ONE GANG LOCKABLE COVER, IP55 RATED (COVER CLOSED). CLEAR.
Notes:
* Cover accepts British, UK, European, International sockets, outlets, switches (86mmX86mm size) with 60mm (60.3mm) mounting centers.
* Cover accepts Modular British, European, International outlets, switches. Requires wall plate / frame #730092X45, #730091X45.
* Cover accepts down angle plugs (Not all plug variations).

74790X45

WEATHERPROOF SURFACE MOUNT IP66 RATED (COVER CLOSED**) ENCLOSURE, IMPACT RESISTANT. GRAY.
Notes:
* Weatherproof cover 74790X45 designed to maintain IP66 protection rating while in use.
* Enclosure accepts (86mmX86mm size) British, UK, European, International sockets, switches with 60mm (60.3 mm) mounting centers.
* Enclosure accepts modular outlets, switches. Requires # 730092X45, or # 730091X45 mounting frame / wall plate.
** Cover can be closed & locked over down angle plugs (not all angle plug variations)
* Enclosure accepts GFCI # 72300-S-10mA and British, UK, European, International sockets, switches with 60mm mounting centers.
* View Modular European, British, International Outlets / Switches. [ Entire Modular Device Series ]

73552-US

AMERICAN 15A-125V NEMA 5-15R DUPLEX OUTLET, TYPE A, TYPE B, 86mmX146mm Size. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D box.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73554-MCD

THAILAND, ASIA, SOUTH AMERICA, AMERICAN, EUROPEAN, MULTI-CONFIGURATION DUPLEX POWER OUTLET, 16 AMPERE-250 VOLT / 15 AMPERE-127 VOLT, TYPE A, B, C, O, THAILAND TIS 2532-2555 (2P+E), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE- 3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D box.
* Outlet accepts Thailand TIS 166-2549 Type O Plugs, American NEMA 1-15P, 515-P, 615-P, 5-20P, 6-20P Type A, Type B Plugs, Type C Plugs with 4.0mm Pins, European CEE 7 Plugs with 4.8mm pins or 4.0mm Pins. * View: Thailand Plugs, Power Cords .

73556-UV

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION 13A-250V DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS. WHITE.
Notes:
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series. Not for use with #77190-D wall box.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73556-UV-W

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

73556-UV-B

UNIVERSAL 20 AMPERE-250 VOLT EUROPEAN, UK, BRITISH, DENMARK, SWISS, AUSTRALIA, CHINA, JAPAN, BRAZIL, ARGENTINA, AMERICA NEMA, SOUTH AMERICA, ASIA, THAILAND, ISRAEL, INTERNATIONAL, MULTI-CONFIGURATION DUPLEX OUTLET, BS 1363 TYPE G (UK1-13R), 86mmX146mm SIZE, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International plugs and American NEMA 15A, 20A (125V & 250V) plugs. View Plug compatibility Chart.
* Outlet mounts on European, British wall boxes with 120mm (120.6mm) centers.
* View #72355X47D, 72355X35D, 72355X25D, 72355-F, 72365, 72365-RED wall box series.
* Weatherproof cover available, IP44 rated #74790-DX.
* Weatherproof enclosure available #74792X45 (IP66 rated). Cover closes over (down angle) type plugs (Not all plug variations).

72355-F

EUROPEAN, INTERNATIONAL, BRITISH, UNITED KINGDOM FLUSH MOUNT TWO GANG WALL BOX, (35mm DEEP). MOUNTS DUPLEX OUTLETS IN SHEET ROCK WALLS OR 1/4"-7/8" INCH THICK PANELS.
Notes:
* Accepts 86mmX146mm Size Sockets, Outlets, Switches, Devices with 120mm (120.6mm) mounting centers.
*** Mounting fins adjust out and up securing many material thicknesses ranging from 4.5mm to 21mm thick.
* Wall box designed for New installations, "Old Work" (Retrofit) installations in sheet rock or 1/4"-7/8" thick panels.
* Accepts NEMA 5-15R outlets, European , British & Universal outlets . View NEMA 5-15R & Universal Versions
* Verify mating components depth dimension for compatibility with # 72355-F. Box requires 75mm X 135mm wall / panel cutout.
* Surface mount modular device wall boxes available. View # 79230X45.
* Wall box also accepts International modular type devices. View outlets, switches, GFCI / RCD options. Modular Devices Link

72355X35D

EUROPEAN, BRITISH, INTERNATIONAL TWO GANG FLUSH MOUNT GALVANIZED STEEL ELECTRICAL WALL BOX,
(35mm DEEP), "EARTH" TERMINAL, ADJUSTABLE MOUNTING LUG (LEVELS DEVICE & WALL PLATE), 20mm & 25mm KNOCKOUTS.
Notes:
* Accepts 86mmX146mm Size Sockets, Outlets, Switches, Devices with 120mm (120.6mm) mounting centers.
* Verify mating product(s) depth dimension for compatibility with # 72355X35D wall box.
* Other wall boxes available, view # 72355X47D, 72355X35D, 72355X25d.
* Surface mount modular device wall boxes available, view part # 79235X45, # 79230X45 series.

74790-DX

WEATHERPROOF DUPLEX OUTLET COVER, IP54 RATED (COVER CLOSED), (IP20 COVER OPEN), GASKET INCLUDED, IMPACT RESISTANCE. CLEAR.
Notes:
* Cover accepts (86mmX146mm size) British BS1363 outlets, mounts on wall boxes with 120mm (120mm.6) centers.
* Cover also accepts modular outlets, circuit breakers, switches. Requires # 730093X45 or # 730094X45 mounting frame.
* View modular component options here. Modular Devices Link
* Weatherproof cover 74790-DK designed to maintain IP54 protection rating while in use.
* 74790-DX accepts GFCI / RCD duplex outlet # 72300-DS-10MA. IP20 rated while in use. (cover open).
* Note: Cover has internal & external cord grip strain relief design. Secures power cords.

74792X45

WEATHERPROOF SURFACE MOUNT IP66 RATED (COVER CLOSED**) DUPLEX OUTLET ENCLOSURE, IMPACT RESISTANT.
Notes:
* Weatherproof cover 74792X45 designed to maintain IP66 protection rating while in use.
* Enclosure accepts (86mmX146mm size) British, European,UK, International sockets, switches with (120.mm) mounting centers.
* Enclosure accepts modular outlets, switches. Requires # 730094X45 or # 730093X45 mounting frame / wall plate.
* View Modular European, British, International Outlets / Switches here. [ Entire Modular Device Series ]
* Enclosure accepts # 72300-DS-10mA, # 72300-D GFCI / RCD Duplex Outlets and British, UK, European, International sockets, switches with 120mm mounting centers.
** Cover can be closed & locked over down angle plugs (not all angle plug variations).

79100x45

PANEL MOUNT SNAP-IN MODULAR DEVICE SUPPORT FRAME. WHITE.
Notes:
* Frame accepts 45mmX45mm & 22.5mmX45mm size modular outlets, switches, devices.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]

79591X45

MODULAR DEVICE BLANK INSERT, 45mmx45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79120X45-N & # 79130X45-N wall plate (White, Black, ALU, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS).
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79265X45-N.
* Panel mount frame # 79100X45. DIN rail mount Frame # 79595X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

79590X45

MODULAR DEVICE BLANK INSERT, 22.5mmx45mm SIZE. WHITE.
Notes:
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79140X45-N wall plate (White).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79215X45-N wall plate (White) & blank 79590X45.
* Mounts on European (60mm on center) wall boxes, requires frame # 79250X45-N & wall plate # 79266X45-N.
* Panel mount frame # 79110X45. Panel Mount Instruction Guide
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

76143X45D

15 AMPERE-127 VOLT, (15A-125V NEMA 5-15R) DUPLEX OUTLET, TYPE A , TYPE B, 67.5mmX45mm MODULAR SIZE, IP20 RATED, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* GFCI Duplex available # 1597-W.
* Mounts on American 2X4 wall boxes, requires frame # 79170X45-N & # 79180X45-N wall plate (White, SS).
* Mounts on American 4X4 wall boxes, requires frame # 79210X45-N & # 79220X45-N wall plate (White, SS) & blank 79590X45.
* Mounts on European (121mm on center) wall boxes, requires frame # 730093X45.
* Surface mount boxes, Flush mount boxes, IP66 / IP55 Enclosures & GFCI / RCD European / International power outlets available.
* Complete range of modular devices and mounting component options. Modular Devices Link

79180x45-N

WALL PLATE, ONE GANG SIZE. ACCEPTS COMBINATIONS OF 22.5mmX45mm, 45mmX45mm DEVICES OR ONE 67.5mmX45mm MODULAR DEVICE. WHITE.
Notes:
* Mounts on American 2x4 wall boxes, requires one #79170X45-N mounting frame.

79170x45-N

MOUNTING FRAME FOR AMERICAN 2x4 WALL BOXES. ACCEPTS COMBINATIONS OF 22.5mmX45mm, 45mmX45mm DEVICES OR ONE 67.5mmX45mm MODULAR DEVICE.
Notes:
* Mounts on American 2x4 wall boxes, requires one #79180X45-N or #79140X45-N or #79145X45-N wall plate.

79285x45-N

WALL PLATE, TWO GANG SIZE. ACCEPTS COMBINATIONS OF 22.5mmX45mm, 45mmX45mm DEVICES OR TWO 67.5mmX45mm MODULAR DEVICES. WHITE.
Notes:
* Requires one #79275X45-N mounting frame. Frame mounts on American (4x4) two gang wall boxes.

79275x45-N

MOUNTING FRAME FOR AMERICAN (4x4) TWO GANG WALL BOXES. ACCEPTS COMBINATIONS OF 22.5mmX45mm, 45mmX45mm DEVICES OR TWO 67.5mmX45mm MODULAR DEVICES.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Requires one # 7 9285X45-N wall plate.

79280X45

SURFACE MOUNT 1.5 GANG METAL BOX AND COVER. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm SIZE MODULAR DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* Note: Not for use with # 70100X45-IT, 685041X45, 685042X45 outlets.
* Option = Use insulated surface mount wall box # 680603X45 for above outlets.

680614X45

WEATHERPROOF, 4 GANG, IP55 RATED, INSULATED SURFACE MOUNT WALL BOX WITH TRANSPARENT LIFT LID COVER (*). GRAY.
Notes:
* Accepts 67.5mm, 45X45mm, 45mmX45mm, 22.5mm modular size device.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]

68063x45

WEATHERPROOF PANEL MOUNT IP55 RATED COVER (*) WITH TRANSPARENT LIFT LID. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* Mounts on American 2x4 flush "recessed type" horizontally installed wall boxes.
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* (*) Weatherproof cover has flexible transparent membrane insert that allows switches, GFCI/RCD & overload circuit breakers to be turned ON / OFF when cover is closed.

680635X45

WEATHERPROOF IP55 RATED PANEL MOUNT COVER (*) WITH TRANSPARENT LIFT LID. ACCEPTS 67.5mmX45mm, 45mmX45mm, 22.5mmX45mm MODULAR SIZE DEVICES. GRAY.
Notes:
* View European, British, International Outlets / Switches. [ Entire Modular Device Series ]
* (*) Weatherproof cover has flexible transparent membrane insert that allows switches, GFCI/RCD & overload circuit breakers to be turned ON / OFF when cover is closed.

70020

15A-125V NEMA 5-15R WEATHERPROOF OUTLET, PANEL / WALL BOX MOUNT, TYPE B, IP54 RATED. GRAY.
Notes:
* American 2x4, 4x4 wall box mount applications = Use #97120-BZ, #97120-DBZ wall plates.
* Surface mount wall box applications = Use #70125.
* DIN rail mount Applications = Use #70125-DIN bracket & #70125 wall box.
* Terminals, conductor cover for panel mount applications = Use #70127.
View: Optional panel mount designs # 5279-SS, # 5258, # 5258-QC.
View: European, British, Australia, Universal Weatherproof outlets with same mounting design.

70020-BLK

15A-125V NEMA 5-15R WEATHERPROOF OUTLET, PANEL / WALL BOX MOUNT, TYPE B, IP54 RATED. BLACK.
Notes:
* American 2x4, 4x4 wall box mount applications = Use #97120-BZ, #97120-DBZ wall plates.
* Surface mount wall box applications = Use #70125.
* DIN rail mount Applications = Use #70125-DIN bracket & #70125 wall box.
* Terminals, conductor cover for panel mount applications = Use #70127.
View: Optional panel mount designs # 5279-SS, # 5258, # 5258-QC.
View: European, British, Australia, Universal Weatherproof outlets with same mounting design.

97120

WEATHER RESISTANT ONE GANG STAINLESS STEEL WALL PLATE WITH GASKET. MOUNTS ONE WEATHERPROOF OUTLET ON AMERICAN 2X4 WALL BOXES.
Notes:
* Use new part number #97120-BZ. Same item as 97120. NEW WALL PLATE 97120-BZ.

97120-D

WEATHER RESISTANT TWO GANG STAINLESS STEEL WALL PLATE WITH GASKET. MOUNTS TWO WEATHERPROOF OUTLETS ON AMERICAN 4X4 WALL BOXES.
Notes:
* Note: Use new part number #97120-DBZ. Same item as 97120-D. NEW WALL PLATE 97120-DBZ.

70127

TERMINAL SHIELD / BACK BOX FOR PANEL MOUNT OUTLETS. GRAY.

70125

WEATHERPROOF IP44, IP54 RATED SURFACE MOUNT WALL BOX FOR PANEL MOUNT OUTLETS. BLACK.
Notes:
* Din rail mountable, use #70125-DIN bracket.
* Gaskets provided with mating outlets.

70125-DIN

DIN RAIL MOUNT BRACKET, MOUNTS #70125 WALL BOX TO DIN RAILS. BLACK.

DIN-RAIL-MOUNT-OUTLETS-WEATHERPROOF

EUROPEAN,INTERNATIONAL, AMERICAN WEATHERPROOF DIN RAIL MOUNT, PANEL MOUNT POWER OUTLETS, SOCKETS, RECEPTACLES, GFCI, RCD, RCBO CIRCUIT BREAKERS, USB SOCKETS, SWITCHES, RJ45, CAT6 JACKS, INDICATOR PILOT LIGHTS.
Notes:
*Weatherproof DIN rail mount option: Use #70125-DIN din rail bracket and back box #70125 together with weatherproof flip lid receptacles.
*DIN rail mount option: Use DIN rail mount bracket #79595X45 together with receptacle outlets, power sockets and electrical devices in our modular devices range. Visit Modular Devices
*Additional mounting options: Modular Devices also mount on American 2x4, 4x4 wall boxes, weatherproof enclosures, covers rated IP44, IP54, IP66, IP68 available. Visit Modular Devices

74900-WP

UNIVERSAL INTERNATIONAL, EUROPEAN, BRITISH, AUSTRALIA, ASIA, THAILAND MULTI-CONFIGURATION, 10A-250V WEATHERPROOF IP44 PANEL OR WALL BOX MOUNT POWER OUTLET, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Outlet accepts International European, British, Australia, American, South America, Asia, Thailand & Type D South Africa, India Plugs.
* Stainless steel wall plates # 97120-BZ and # 97120-DBZ mounts outlet onto standard American 2x4 and 4x4 wall boxes.
* Not for use with # 70125 wall box.

97120-BZ

WEATHER RESISTANT STAINLESS STEEL ONE GANG WALL PLATE (GASKETED).
Notes:
* Mounts one panel mount outlet on American 2x4 wall boxes.

97120-DBZ

WEATHER RESISTANT STAINLESS STEEL TWO GANG WALL PLATE (GASKETED).
Notes:
* Mounts two panel mount outlets on American 4x4 wall boxes.

79420

WEATHERPROOF AMERICAN, CANADA ONE GANG (2X4) WALL BOX, SURFACE MOUNT, WET/DRY LOCATION, 2 INCHES DEEP, FIVE 1/2 INCH (NPT) CONDUIT ENTRY HOLES, FOUR CLOSURE PLUGS, EXTERNAL MOUNTING BRACKETS, CAST ALUMINUM. GRAY.
Notes:
* Accepts American, Canada NEMA Duplex outlets, Single outlets & (NEMA) locking outlets. NEMA Outlets Link
* Accepts European, American, International Modular outlets. Modular Outlets Link Requires # 79120X45-N frame, # 79130X45-N wall plate.
* Accepts Weatherproof IP54, European, International, American outlets. Weatherproof Outlets Link Requires # 97120-BZ wall plate.
* Adapter available # 02015, Converts 1/2 Inch NPT thread to M20 thread.

79425

WEATHERPROOF AMERICAN, CANADA ONE GANG (2X4) WALL BOX, SURFACE MOUNT, WET/DRY LOCATION,
2 INCHES DEEP, FIVE 3/4 INCH (NPT) CONDUIT ENTRY HOLES, FOUR CLOSURE PLUGS, EXTERNAL MOUNTING BRACKETS, CAST ALUMINUM. GRAY.
* Accepts American, Canada NEMA Duplex outlets, Single outlets & NEMA locking outlets. NEMA Outlets Link
* Accepts European, American, International Modular outlets. Modular Outlets Link Requires # 79120X45-N frame, # 79130X45-N wall plate.
* Accepts Weatherproof IP54, European, International, American outlets. Weatherproof Outlets Link Requires # 97120-BZ wall plate.

79430

WEATHERPROOF AMERICAN, CANADA TWO GANG (4X4) WALL BOX, SURFACE MOUNT, WET/DRY LOCATION, 2 INCHES DEEP, SIX 1/2 INCH (NPT) CONDUIT ENTRY HOLES , FIVE 1/2 INCH (NPT) CLOSURE PLUGS, EXTERNAL MOUNTING BRACKETS, CAST ALUMINUM. GRAY.
Notes:
* Accepts American, Canada NEMA Duplex outlets, Single outlets & NEMA locking outlets. NEMA Outlets Link
* Accepts European, American, International Modular outlets. Modular Outlets Link Requires # 79210X45-N frame, # 79220X45-N wall plate.
* Accepts Weatherproof IP54, European, International, American outlets. Weatherproof Outlets Link Requires # 97120-DBZ wall plate.
* Adapter available # 02015, Converts 1/2 Inch NPT thread to M20 thread.

79435

WEATHERPROOF AMERICAN, CANADA TWO GANG (4X4) WALL BOX, SURFACE MOUNT, WET/DRY LOCATION,
2 INCHES DEEP, SIX 3/4 INCH (NPT) CONDUIT ENTRY HOLES, 5 CLOSURE PLUGS, EXTERNAL MOUNTING BRACKETS, CAST ALUMINUM. GRAY.
Notes:
* Accepts American, Canada NEMA Duplex outlets, Single outlets & NEMA locking outlets. NEMA Outlets Link
* Accepts European, American, International Modular outlets. Modular Outlets Link Requires # 79210X45-N frame, # 79220X45-N wall plate.
* Accepts Weatherproof IP54, European, International, American outlets. Weatherproof Outlets Link Requires # 97120-DBZ wall plate.
* Additional surface mount, flush mount, weatherproof wall boxes available. Scroll down to view.

81400

10A-125V DETACHABLE CORD SET, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81400-RA

10A-125V DETACHABLE CORD SET, NEMA 5-15P PLUG, RIGHT ANGLE IEC 60320 C-13 CONNECTOR, 18/3 AWG, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81400-LA

10A-125V DETACHABLE CORD SET, NEMA 5-15P PLUG, LEFT ANGLE IEC 60320 C-13 CONNECTOR, 18/3 AWG, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81413

13A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81415

15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG, SJTO, 105°C, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81415-Y

15A-125V "Y" SPLITTER TYPE POWER CORD, NEMA 5-15P PLUG, TWO IEC 60320 C-13 CONNECTORS, 14/3 AWG, SJTO, 105°C, 3.05 METERS [10 FEET] [120"] LONG. BLACK.
Length: 3.05 METERS [10 FEET]

81415-Y2M

15A-125V "Y" SPLITTER TYPE POWER CORD, NEMA 5-15P PLUG, TWO IEC 60320 C-13 CONNECTORS, 14/3 AWG, SJTO, 105°C, 2.0 METERS [6FT-7IN] [79"] LONG. BLACK.
Length: 2.0 METERS [6FT-7IN]

81440X2FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 0.6 METERS [2 FEET] [24"], BLACK.
Length: 0.6 METERS [2 FEET]

81440X3FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 0.9 METERS [3 FEET] [36"], BLACK.
Length: 0.9 METERS [3 FEET]

81440X4FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 1.2 METERS [4 FEET] [48"], BLACK.
Length: 1.2 METERS [4 FEET]

81440X6FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 1.8 METERS [6 FEET] [72"], BLACK.
Length: 1.8 METERS [6 FEET]

81440

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 2.5 METERS [8FT-2IN] [98"], BLACK.
Length: 2.5 METERS [8FT-2IN]

81440X10FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120"), BLACK.
Length: 3.05 METERS (10 FEET)

81440X12FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 3.66 METERS [12 FEET] [144"], BLACK.
Length: 3.66 METERS [12 FEET]

81440X15FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 4.6 METERS [15 FEET] [180"], BLACK.
Length: 4.6 METERS [15 FEET]

81440X20FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 6.1 METERS [20 FEET] [240"], BLACK.
Length: 6.1 METERS [20 FEET]

81440X6FT-BLU

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 1.8 METERS (6 FEET) (72"), BLUE.
Length: 1.8 METERS (6 FEET)

81440X6FT-GRN

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 1.8 METERS (6 FEET) (72"), GREEN.
Length: 1.8 METERS (6 FEET)

81440X6FT-RED

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 1.8 METERS (6 FEET) (72"), RED.
Length: 1.8 METERS (6 FEET)

81440X10FT-BLU

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120"), BLUE.
Length: 3.05 METERS (10 FEET)

81440X10FT-GRN

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120"), GREEN.
Length: 3.05 METERS (10 FEET)

81440X10FT-RED

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 10 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120"), RED.
Length: 3.05 METERS (10 FEET)

81450

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 13 AMPERE 125 VOLT, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81460X2FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 0.6 METERS [2 FEET] [24"] LONG. BLACK.
Length: 0.6 METERS [2 FEET]

81460X3FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 0.9 METERS [3 FEET] [36"] LONG. BLACK.
Length: 0.9 METERS [3 FEET]

81460X4FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 1.2 METERS [4 FEET] [48"] LONG. BLACK.
Length: 1.2 METERS [4 FEET]

81460X6FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 1.8 METERS [6 FEET] [72"] LONG. BLACK.
Length: 1.8 METERS [6 FEET]

81460

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

81460X10FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120") LONG, BLACK.
Length: 3.05 METERS (10 FEET)

81460X15FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 4.6 METERS [15 FEET] [180"] LONG. BLACK.
Length: 4.6 METERS [15 FEET]

81460X20FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 6.1 METERS [20 FEET] [240"] LONG. BLACK.
Length: 6.1 METERS [20 FEET]

81460X25FT

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 7.6 METERS [25 FEET] [300"] LONG. BLACK.
Length: 7.6 METERS [25 FEET]

81460X6FT-BLU

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 2.44 METERS (8 FEET) (96") LONG. BLUE.
Length: 2.44 METERS (8 FEET)

81460X6FT-GRN

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 2.44 METERS (8 FEET) (96") LONG. GREEN.
Length: 2.44 METERS (8 FEET)

81460X6FT-RED

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 2.44 METERS (8 FEET) (96") LONG. RED.
Length: 2.44 METERS (8 FEET)

81460X10FT-BLU

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120") LONG. BLUE.
Length: 3.05 METERS (10 FEET)

81460X10FT-GRN

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120") LONG. GREEN.
Length: 3.05 METERS (10 FEET)

81460X10FT-RED

POWER SUPPLY CORD, NEMA 5-15P PLUG, STANDARD STRIPPED END, 15 AMPERE 125 VOLT, 3.05 METERS (10 FEET) (120") LONG. RED.
Length: 3.05 METERS (10 FEET)

80450

15A-125V DETACHABLE [14/3 AWG] CORD SET, NEMA 5-15P PLUG, IEC 60320 C-19 CONNECTOR, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

82950

AMERICAN 7A-125V POWER CORD, NEMA 5-15P TYPE B PLUG, IEC 60320 C-5 CONNECTOR, 1.8 METERS (6 FEET) (72") LONG. BLACK.
Length: 1.8 METERS (6 FEET)

82400

10A-125V HOSPITAL GRADE POWER CORD, GREEN DOT NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, SJTO 18/3 AWG. 105°C, 3.05 METERS (10 FEET) (120") LONG, UL/CSA LISTED. GRAY.
Length: 3.05 METERS (10 FEET)

82460

15A-125V HOSPITAL GRADE POWER CORD, GREEN DOT NEMA 5-15P PLUG, IEC 60320 C-19 CONNECTOR, SJTO 14/3 AWG, 105°C, 3.05 METERS (10 FEET) (120") LONG, UL/CSA LISTED. BLACK.
Length: 3.05 METERS (10 FEET)
Notes:
* Hospital grade power cords, plugs, connectors, receptacles are listed below in related products. Scroll down to view.

82470

10A-125V HOSPITAL GRADE POWER CORD, GREEN DOT NEMA 5-15P TRANSPARENT PLUG, SJTO 18/3 AWG, 105°C, STRIPPED ENDS, 3.05 METERS (10 FEET) (120") LONG, TRANSPARENT PLUG, GRAY CORD. UL/CSA LISTED.
Length: 3.05 METERS (10 FEET)

30130

NEMA 5-15P / EUROPEAN CEE 7/3 SCHUKO (EU1-16R) PLUG ADAPTER, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Connects European CEE 7/7 type F plugs, CEE 7/4 type E plugs, CEE 7/16 type C (Europlug) with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets.

30130-W

NEMA 5-15P / EUROPEAN CEE 7/3 SCHUKO (EU1-16R) PLUG ADAPTER, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Connects European CEE 7/7 type F plugs, CEE 7/4 type E plugs, CEE 7/16 type C (Europlug) with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets.

30180

UK, BRITISH, UNITED KINGDOM 13A-250V PLUG ADAPTER. CONNECTS BRITISH, UK TYPE G BS 1363A PLUGS (UK1-13P) with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. WHITE.

30210

AUSTRALIAN, CHINA, ARGENTINA PLUG ADAPTER, 10 AMPERE-250 VOLT. MATES AUSTRALIAN AU1-10P, CHINA CH1-10P, ARGENTINA AR1-10P PLUGS with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. BLACK.

85305-A

BRAZIL, SOUTH AFRICA ZA PLUG ADAPTER, 16A-250V, CONNECTS BRAZIL 10A / 20A NBR 14136 PLUGS AND SOUTH AFRICA SABS 164-2 16A-250V TYPE N PLUGS with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. BLACK.

30500

JAPAN 15 AMPERE-125 VOLT TYPE B, TYPE A PLUG ADAPTER,4 INCH GROUND LEAD, SPADE TERMINAL. GRAY.
Notes:
* Approvals, Certifications: PSE, JET, RoHS3.
* Connects Japan JA1-15P (2P+E), NEMA 5-15P (2P+E), NEMA 1-15P (2P) plugs with Japan 2 wire outlets.
* Mates with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. Gray.

30340

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN 2 POLE-2 WIRE PLUGS (4.0mm / 4.8mm Diameter pins) with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. WHITE.

30250

UNIVERSAL AMERICA, CANADA NEMA 5-15P TYPE B PLUG ADAPTER. CONNECTS EUROPEAN, BRITISH, UK, AUSTRALIA, NEMA, WORLDWIDE / INTERNATIONAL PLUGS WITH NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V OUTLETS. IVORY.

30250-NS

UNIVERSAL MULTI-OUTLET AMERICAN, CANADA 15A-125V PLUG ADAPTER, TYPE B . CONNECTS EUROPEAN, BRITISH, AUSTRALIA, NEMA, WORLDWIDE / INTERNATIONAL PLUGS WITH NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) OUTLETS. IVORY.

30300

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN (4.0 mm) PIN DIAMETER PLUGS & AMERICAN TYPE A PLUGS WITH EUROPEAN TYPE C, E, F, CEE 7/3, 7/5 OUTLETS. WHITE.

30301

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN (4.8 mm) PIN DIAMETER PLUGS & AMERICAN TYPE A PLUGS WITH EUROPEAN TYPE C, E, F, CEE 7/3, 7/5 OUTLETS. WHITE.

30140

BRITISH, UNITED KINGDOM 13A-250V PLUG ADAPTER, BS 1363 TYPE G PLUG (UK1-13P), 13 AMP FUSE BS 1362, EUROPEAN CEE 7/3 SOCKET, SHUTTERED CONTACTS. WHITE.
Notes:
* Connects European, German, French, Schuko CEE 7/7, CEE 7/4, CEE 7/16 type E, F, plugs with United Kingdom (UK1-13R) outlets, sockets, receptacles.

30195-A

SOUTH AFRICA, INDIA 10A-250V TYPE M PLUG ADAPTER (UK2-15P), CEE 7/3 SOCKET, SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Connects European Schuko CEE 7/7, CEE 7/4, CEE 7/16 type E, F, C plugs with South Africa, India type M sockets.
* Adapter connects with South Africa, India, BS 546, IS 1293 (16A-250V) type M outlets only.

30150

ITALY, CHILE, EUROPEAN SCHUKO PLUG ADAPTER, 10A-250V, CEE 7/3 SOCKET (EU1-16R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Connects European CEE 7/7, CEE 7/4 Schuko (EU1-16P) plugs with Italy, Chile (IT1-10R / IT1-16R) power outlets.

30160

ITALY, CHILE, EUROPEAN SCHUKO PLUG ADAPTER, 16A-250V, CEE 7/3 SOCKET (EU1-16R), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.
Notes:
* Connects European CEE 7/7, CEE 7/4 Schuko (EU1-16P) plugs with Italy, Chile (IT1-16R) power outlets.

30170

SWISS 10 AMPERE-250 VOLTS TYPE J PLUG ADAPTER, 10 AMP FUSED, INSULATED PINS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Connects European Schuko CEE 7/7, CEE 7/4, CEE 7/16 type E, F, C, plugs with Swiss (SW1-10R & SW2-16R) outlets, sockets, receptacles.

30395

DENMARK, EUROPEAN SCHUKO 13A/16A-250V, (DE1-13P) PLUG ADAPTER, SHUTTERED CONTACTS. GREY.

30220

AUSTRALIA, CHINA, ARGENTINA, SOUTH AMERICA 10 AMPERE-250 VOLT EUROPEAN SCHUKO PLUG ADAPTER, CEE 7/3 SOCKET, 2 POLE-3 WIRE GROUNDING (2P+E), IMPACT RESISTANT. BLACK.

30295

ISRAEL PLUG ADAPTER 10A-250V, (IS1-10P), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). IVORY.

30181

BRITISH, UNITED KINGDOM 10A-250V PLUG ADAPTER. CONNECTS BRITISH TYPE G BS 1363A PLUGS (UK1-13P) TO GERMAN, EUROPEAN CEE 7/3 SCHUKO OUTLETS (EU1-16R) AND FRENCH CEE 7/5 (FR1-16R) OUTLETS. WHITE.
Notes:
* Plug end = 4.8 mm diameter pins.

30182

BRITISH, UNITED KINGDOM 10A-250V PLUG ADAPTER. CONNECTS BRITISH TYPE G BS 1363A PLUGS (UK1-13P) TO GERMAN, EUROPEAN CEE 7/3 SCHUKO OUTLETS (EU1-16R) AND FRENCH CEE 7/5 (FR1-16R) OUTLETS. WHITE.
Notes:
* Plug end = 4.0 mm diameter pins.

30230

ITALY, CHILE 16 AMPERE-250 VOLT PLUG ADAPTER, CEE 7/7 PLUG (EU1-16P), CEI 23-16 SOCKET (IT1-10P / IT2-16P), SHUTTERED CONTACTS, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Connects Italian 10A / 16A-250V plugs with European CEE 7/3 Schuko (EU1-16R) outlets.

30190

SWITZERLAND, BRAZIL, SOUTH AFRICA PLUG ADAPTER, 16A-250V, IMPACT RESISTANT, 2 POLE-3 WIRE GROUNDING (2P+E). WHITE.
Notes:
* Connects Swiss 10 Amp. (SW1-10P), Swiss 16 Amp. (SW2-16P), Brazil 10 Amp. (BR2-10P), S. Africa SANS 164-2 16A-250V plugs with European Schuko CEE 7/4 (EU1-16R), France / Belgium (FR1-16R) CEE 7/5 outlets, sockets, receptacles.

30240

AUSTRALIA, CHINA, EUROPEAN SCHUKO, ARGENTINA, SOUTH AMERICA 10A-250V PLUG ADAPTER. WHITE.

85305-A

BRAZIL, SOUTH AFRICA ZA PLUG ADAPTER, 16A-250V, CONNECTS BRAZIL 10A / 20A NBR 14136 PLUGS AND SOUTH AFRICA SABS 164-2 16A-250V TYPE N PLUGS with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. BLACK.

85305

BRAZIL, SOUTH AFRICA ZA PLUG ADAPTER, 10A-250V, CONNECTS AMERICAN 15A-125V NEMA 5-15P PLUGS WITH BRAZIL NBR 14136, S. AFRICA SANS 164-2 TYPE N OUTLETS. GRAY.
Notes:
* Adapter plug connects with South Africa ZA SANS 164-2 type N 15/16A-250V outlets and Brazil NBR 14136 type N 20A-250V outlets only.

85305-BR2

UNIVERSAL BRAZIL, SOUTH AFRICA ZA 10A-250V TYPE N PLUG ADAPTER. CONNECTS BRAZIL, SOUTH AFRICA EUROPEAN, BRITISH, UK, AUSTRALIA, NEMA, WORLDWIDE INTERNATIONAL PLUGS WITH BRAZIL NBR 14136 10A-250V (BR2-10R), 20A-250V (BR3-20R) & ZA SOUTH AFRICA SANS 164-2 16A-250V TYPE N OUTLETS. IVORY.
Notes:
* Adapter plug connects with South Africa ZA SANS 164-2 type N 15/16A-250V outlets and Brazil NBR 14136 type N 10A/20A-250V outlets only.

85305-BR3

UNIVERSAL BRAZIL, SOUTH AFRICA PLUG ADAPTER, 16A-250V, CONNECTS BRAZIL, S, AFRICA, BRITISH, AUSTRALIA, EUROPEAN, NEMA, WORLDWIDE / INTERNATIONAL PLUGS WITH BRAZIL TYPE N, NBR 14136 (BR3-20R) 20 AMPERE-250 VOLT, SOUTH AFRICA SANS 164-2 OUTLETS. IVORY.
Notes:
* Adapter plug connects with South Africa SANS 164-2 type N 15/16A-250V outlets and Brazil NBR 14136 type N 20A-250V outlets only.

30305

EUROPEAN SCHUKO (EU1-16R) CEE 7/3 PLUG ADAPTER, 16A-250V, CONVERTS SINGLE SCHUKO WALL OUTLET INTO DUPLEX TYPE. WHITE.

30305-A

EUROPEAN SCHUKO (EU1-16R) CEE 7/3 PLUG ADAPTER, 16A-250V, CONVERTS SINGLE SCHUKO WALL OUTLET INTO A DUPLEX TYPE. WHITE.

30340

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN 2 POLE-2 WIRE PLUGS (4.0mm / 4.8mm Diameter pins) with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. WHITE.

30350

EUROPEAN AMERICAN 250 VOLT PLUG ADAPTER, (2P) NON-GROUNDING. WHITE.
Notes:
* Connects European CEE 7/7 type F plugs, CEE 7/4 type E plugs, CEE 7/16 type C (Europlug) WITH NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) OUTLETS.

30300

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN (4.0 mm) PIN DIAMETER PLUGS & AMERICAN TYPE A PLUGS WITH EUROPEAN TYPE C, E, F, CEE 7/3, 7/5 OUTLETS. WHITE.

30301

EUROPEAN / AMERICAN PLUG ADAPTER, CONNECTS EUROPEAN (4.8 mm) PIN DIAMETER PLUGS & AMERICAN TYPE A PLUGS WITH EUROPEAN TYPE C, E, F, CEE 7/3, 7/5 OUTLETS. WHITE.

30320

BRITISH, UK, UNITED KINGDOM 13A-250V PLUG ADAPTER, TYPE G CONNECTS AMERICAN NEMA 1-15P, PLUGS, EUROPEAN (4.0mm/4.8mm PIN DIA.) PLUGS & "EUROPLUG" WITH UNITED KINGDOM BS 1363A OUTLETS, 13 AMP. FUSE. BLACK.
Notes:
* Non-grounding (2 pole-2 wire).

30360

SOUTH AFRICA, INDIA 16A-250V TYPE M PLUG ADAPTER (UK2-15P), 2 POLE-2 WIRE (2P*). BLACK.
Notes:
* Connects European (2 pole-2 wire*) plugs, American 125 volt (2 pole-2 wire plugs*) with South Africa, India BS 546, IS 1293 power outlets.
* *2 pole-2 wire non-grounding.
* Adapter connects with South Africa, India, BS 546, IS 1293 (16A-250V) type M outlets only.

30500

JAPAN 15 AMPERE-125 VOLT TYPE B, TYPE A PLUG ADAPTER,4 INCH GROUND LEAD, SPADE TERMINAL. GRAY.
Notes:
* Approvals, Certifications: PSE, JET, RoHS3.
* Connects Japan JA1-15P (2P+E), NEMA 5-15P (2P+E), NEMA 1-15P (2P) plugs with Japan 2 wire outlets.
* Mates with NEMA 5-15R (15A-125V) & NEMA 5-20R (20A-125V) outlets. Gray.

30375

EUROPEAN, INTERNATIONAL PLUG ADAPTER SET. SET INCLUDES 6 ADAPTERS AND TRAVEL POUCH.

30375-G

EUROPEAN, INTERNATIONAL PLUG ADAPTER SET. SET INCLUDES 7 ADAPTERS AND TRAVEL POUCH.
Notes:
* Adapters are 2 pole-3 wire grounding types.

30235

UNIVERSAL IEC 60320 C-14 PLUG ADAPTER, 15A-125V, 10A-250V. CONNECTS WORLDWIDE / INTERNATIONAL PLUGS WITH IEC 60320 C-13 OUTLETS AND POWER CORDS. IVORY.

30235-NS

UNIVERSAL IEC C-14 MULTI-OUTLET PLUG ADAPTER, 15A-125V, 10A-250V. CONNECTS WORLDWIDE / INTERNATIONAL PLUGS WITH IEC 60320 C-13 OUTLETS, POWER CORDS. IVORY.

30610-UV

UNIVERSAL IEC 60320 C-14 PLUG ADAPTER, 15 AMPERE 250 VOLT MULTI-CONFIGURATION EUROPEAN, BRITISH, INTERNATIONAL IN-LINE CONNECTOR **, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30600-A

ADAPTER, 10A-250V, IEC 60320 C-14 PLUG, EUROPEAN CEE 7/3 TYPE F (EU1-16R) SCHUKO SOCKET. BLACK.
Notes:
* Connects IEC 60320 C-13 outlets, sockets, connectors, power cords with European Schuko CEE 7/7, CEE 7/4, CEE 7/16 plugs & Type C Europlugs.

30600

ADAPTER, 10A-250V, IEC 60320 C-14 PLUG, EUROPEAN CEE 7/3 TYPE F (EU1-16R) SCHUKO SOCKET, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)
Notes:
* Connects IEC 60320 C-13 outlets, sockets, connectors, power cords with European Schuko CEE 7/7, CEE 7/4, CEE 7/16 plugs & Type C Europlugs.

30680

PLUG ADAPTER, IEC 60320 C-14 PLUG, TYPE B NEMA 5-15R CONNECTOR, 13A-125V, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30401

ADAPTER, IEC 60320 C-14 PLUG, NEMA 5-15R TYPE B CONNECTOR. CONNECTS IEC 60320 C-13 CONNECTORS WITH NEMA 5-15P PLUGS & POWER CORDS, C(RU)US 15A-125V RATED, INTERNATIONAL 10A-250V. BLACK.

30400

ADAPTER, 10A-125V NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, CONNECTS C-13 CONNECTOR WITH IEC 60320 C-14 PLUGS, C-14 POWER CORDS, C-14 POWER INLETS. BLACK.
Notes:
* NEMA 5-15P plug connects with NEMA 5-15R and NEMA 5-20R outlets.

81400x1FT

10A-125V DETACHABLE CORD SET, NEMA 5-15P PLUG, IEC 60320 C-13 CONNECTOR, 18/3 AWG, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30401-A

ADAPTER SPLITTER, IEC 60320 C-14 PLUG, TWO TYPE B NEMA 5-15R CONNECTORS. CONNECTS TWO NEMA 5-15P PLUGS OR POWER CORDS WITH IEC 60320 C-13 CONNECTOR, 10A-125V. BLACK.

30401-B

ADAPTER SPLITTER, IEC 60320 C-14 PLUG, TYPE B NEMA 5-15R CONNECTOR & IEC 60320 C-13 CONNECTOR. CONNECTS NEMA 5-15P PLUGS & IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 CONNECTORS, 10A-125V. BLACK.

30400-A

ADAPTER NEMA 5-15P / IEC 60320 C-13 SPLITTER, 10A-125V, NEMA 5-15P PLUG WITH TWO C- 13 CONNECTORS, CONNECTS C-13 POWER CONNECTORS WITH TWO IEC 60320 C-14 POWER CORDS. BLACK.
Notes:
* NEMA 5-15P plug connects with NEMA 5-15R and NEMA 5-20R outlets.

30400-B

ADAPTER NEMA 5-15P / NEMA 5-15R / IEC 60320 C-13 SPLITTER, 10A-125V, NEMA 5-15P PLUG, NEMA 5-15R OUTLET, C- 13 CONNECTOR. BLACK.
Notes:
* NEMA 5-15P plug connects with NEMA 5-15R and NEMA 5-20R outlets.

30404

ADAPTER (EXTENSION), IEC 60320 C-14 PLUG, IEC 60320 C-13 CONNECTOR. CONNECTS IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 POWER CORDS, 10A-250V. BLACK.

98216x12IN

UNIVERSAL [UL, CSA, VDE, CCC APPROVALS] 10A-250V IEC 60320 C-14, C-13 POWER CORD, 17/3 AWG, SJTO, 105°C, 0.3 METERS [1 FOOT] [12"] LONG. BLACK.
Length: 0.3 METERS [1 FOOT]

30404-RA

ADAPTER (EXTENSION), IEC 60320 LEFT ANGLE C-14 PLUG, IEC 60320 RIGHT ANGLE C-13 CONNECTOR. CONNECTS IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 POWER CORDS, 10A-250V. BLACK.

98216X2FT-C14L

IEC 60320 LEFT ANGLE C-14, C-13 POWER CORD, 10 AMPERE-250 VOLT [UL/CSA], 18/3 AWG, SJT, 105°C, 0.6 METERS [2 FEET] [24"] LONG. BLACK.
Length: 0.6 METERS [2 FEET]

30404-LA

ADAPTER (EXTENSION), IEC 60320 RIGHT ANGLE C-14 PLUG, IEC 60320 LEFT ANGLE C-13 CONNECTOR. CONNECTS IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 POWER CORDS, 10A-250V. BLACK.

98216X2FT-C14R

IEC 60320 RIGHT ANGLE C-14, C-13 POWER CORD, 10 AMPERE-250 VOLT [UL/CSA], 18/3 AWG, SJT, 105°C, 0.6 METERS [2 FEET] [24"] LONG. BLACK.
Length: 0.6 METERS [2 FEET]

30404-UV

ADAPTER (EXTENSION), IEC 60320 UP/DOWN ANGLE C-14 PLUG, IEC 60320 UP/DOWN ANGLE C-13 CONNECTOR. CONNECTS IEC 60320 C-14 PLUGS WITH IEC 60320 C-13 POWER CORDS, 10A-250V. BLACK.

30404-A

ADAPTER SPLITTER, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS. CONNECTS ONE IEC 60320 C-13 CONNECTOR WITH TWO C-14 PLUGS, 10A-125V. BLACK.

30406

ADAPTER, IEC 60320 C-14 PLUG, IEC 60320 C-5 CONNECTOR. CONNECTS IEC 60320 C-13 CONNECTORS AND CORD SETS WITH IEC 60320 C-6 POWER INLETS, 7A-125V, 2A-250V. BLACK.

30407

ADAPTER, IEC 60320 C-14 PLUG, IEC 60320 C-7 CONNECTOR. CONNECTS IEC 60320 C-13 /C15 CONNECTORS WITH IEC 60320 C-8 POWER INLETS, 10A-250V. BLACK.

98226-Y

UNIVERSAL (UL, CSA, VDE APPROVALS) "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJTO, 105°C, 2.44 METERS (8 FEET) (96") LONG. BLACK.
Length: 2.44 METERS (8 FEET)

98226-Y18

UNIVERSAL "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJTO, 105°C, 0.46 METERS [1FT-6IN] [18"] LONG. BLACK.
Length: 0.46 METERS [1FT-6IN]

98226-Y72

UNIVERSAL (UL, CSA, VDE APPROVALS) "Y" TYPE SPLITTER POWER CORD, 10A-250V, IEC 60320 C-14 PLUG, TWO C-13 CONNECTORS, 17/3 AWG, SJT, 105°C, 1.8 METERS (6 FEET) (72") LONG. BLACK.
Length: 1.8 METERS (6 FEET)

98625-Y

"Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG / C-13 CONNECTORS, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

98625-Y120

"Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG / C-13 CONNECTORS, 3.05 METERS (10 FEET) (120") LONG. BLACK.
Length: 3.05 METERS (10 FEET)

98625-Y180

"Y" TYPE SPLITTER POWER CORD, 15A-250V, 14/3 AWG, IEC 60320 C-14 PLUG/ C-13 CONNECTORS, 4.6 METERS (15 FEET) (180") LONG. BLACK. UL/CSA LISTED.
Length: 4.6 METERS (15 FEET)

30700

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJTO 105°C, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30700x1M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105°C, 1.0 METERS [3FT-3IN] [39"] LONG. BLACK.
Length: 1.0 METERS [3FT-3IN]

30700x1.5m

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105°C, 1.5 METERS [4FT-11IN] [59"] LONG. BLACK.
Length: 1.5 METERS [4FT-11IN]

30700x2M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105°C, 2.0 METERS [6FT-7IN] [79"] LONG. BLACK.
Length: 2.0 METERS [6FT-7IN]

30700x2.5M

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJT 105°C, 2.5 METERS [8FT-2IN] [98"] LONG. BLACK.
Length: 2.5 METERS [8FT-2IN]

30700x10FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-19 CONNECTOR, 14/3 AWG SJTO 105°C, 3.05 METERS (10 FEET) (120") LONG. BLACK.
Length: 3.05 METERS (10 FEET)

30411

ADAPTER IEC 60320 C-20 PLUG, C-13 CONNECTOR, CONNECTS C-19 POWER CORDS WITH IEC 60320 C-14 POWER CORDS. BLACK.

31720x1FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-20 PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG SJTO 105°C, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30410

ADAPTER IEC 60320 C-20, C-13 SPLITTER, IEC 60320 C-20 PLUG, TWO C-13 CONNECTORS, CONNECTS C-19 POWER CORDS WITH TWO IEC 60320 C-14 POWER CORDS. BLACK.

30800

ADAPTER, 16A-250V, IEC 60320 C-20 PLUG, IEC 60320 C-19 CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.

90521X1FT

IEC 60320 C-20, C-19 POWER CORD, 20A-250V, 12/3 AWG, SJT, 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

30800-A

ADAPTER, 16A-250V, IEC 60320 C-20 PLUG, RIGHT / LEFT ANGLE IEC 60320 C-19 CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Adapters right or left angle orientation is based on users C-19 receptacle orientation.
* Mates with IEC 60320 C-19 power outlets and cord sets.

30800-B

ADAPTER, 16A-250V, IEC 60320 C-20 PLUG, UP / DOWN ANGLE IEC 60320 C-19 CONNECTOR, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Adapters up or down angle orientation is based on users C-19 receptacle orientation.
* Mates with IEC 60320 C-19 power outlets and cord sets.

30810

ADAPTER SPLITTER, 20A-250V, IEC 60320 C-20 PLUG, (2) IEC 60320 C-19 CONNECTORS, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.

30812

ADAPTER SPLITTER CORD, IEC 60320 C-20 PLUG, 20 AMPERE 250 VOLT, TWO IEC 60320 C-19 CONNECTORS, 2 POLE-3 WIRE GROUNDING (2P+E), 12/3 AWG SJT, 105°C, OVERALL 3 FEET LONG, EACH C-19 LEG IS 9 INCHES LONG, BLACK.
Length: 0.9 METERS (3 FEET)

30408

ADAPTER, 15A-125V NEMA 5-15P PLUG, IEC 60320 C-19 CONNECTOR, CONNECTS C-19 CONNECTOR WITH IEC 60320 C-20 PLUGS, C-20 POWER CORDS, C-20 POWER INLETS. BLACK.
Notes:
* NEMA 5-15P plug connects with NEMA 5-15R (15A-125V) and NEMA 5-20R (20A-125V) outlets.

30409

ADAPTER, 15A-250V NEMA 6-15P PLUG, IEC 60320 C-19 CONNECTOR, CONNECTS C-19 CONNECTOR WITH IEC 60320 C-20 PLUGS, C-20 POWER CORDS, C-20 POWER INLETS. BLACK.
Notes:
* NEMA 6-15P plug connects with NEMA 6-15R (15A-250V) and NEMA 6-20R (20A-250V) outlets.

31680

PLUG ADAPTER, 15A-125V, IEC 60320 C-20 PLUG, TYPE B NEMA 5-15R CONNECTOR. CONNECTS NEMA 5-15P PLUGS WITH IEC 60320 C-19 OUTLETS / CONNECTORS. 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)

31610-UV

UNIVERSAL IEC 60320 C-20 PLUG ADAPTER, 16 AMPERE 250 VOLT MULTI-CONFIGURATION EUROPEAN, BRITISH, INTERNATIONAL IN-LINE CONNECTOR **,0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT

31720

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-20 PLUG, IEC 60320 C-13 CONNECTOR, 14/3 AWG SJTO 105°C, 0.6 METERS (2 FEET) (24") LONG. BLACK.
Length: 0.6 METERS (2 FEET)

31600-A

ADAPTER, 16A-250V, IEC 60320 C-20 PLUG, EUROPEAN CEE 7/3 TYPE F (EU1-16R) SCHUKO SOCKET, BLACK.
Notes:
* Connects IEC 60320 C-19 outlets, sockets, connectors, power cords with European Schuko CEE 7/7, CEE 7/4, CEE 7/16 plugs & Type C Europlugs.

31600

ADAPTER, 16A-250V, IEC 60320 C-20 PLUG, EUROPEAN CEE 7/3 TYPE F (EU1-16R) SCHUKO SOCKET, 2 POLE-3 WIRE GROUNDING (2P+E), 0.3 METERS (1 FOOT) (12") LONG. BLACK.
Length: 0.3 METERS (1 FOOT)
